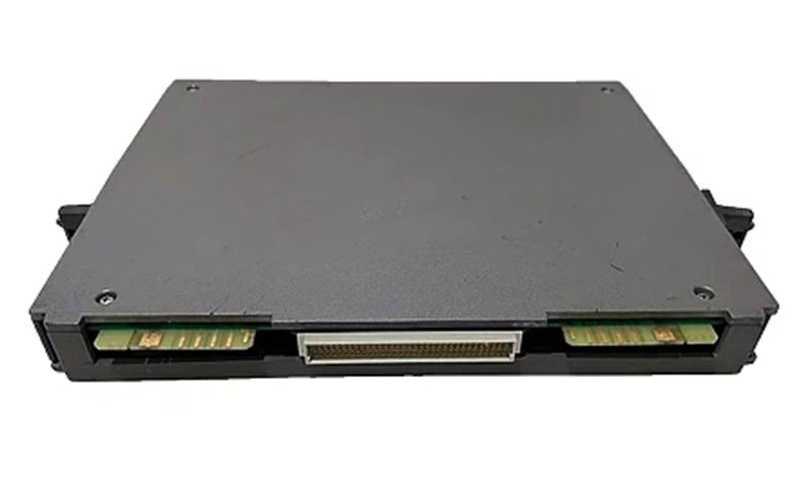

The ICS Triplex T3401 is designed for critical control applications and Safety Instrumented Systems (SIS). It provides high reliability, flexibility, and advanced functionality in industrial automation.

Technical Specifications

• Model Number: T3401
• Manufacturer: ICS Triplex
• Type: Digital Input Module
• Input Channels: 16 digital inputs
• Input Voltage Range: 24 VDC
• Input Current: 7 mA
• Power Consumption: Typically 8W (depends on configuration and I/O channels)
• Voltage Range: 18V to 32V DC
• Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Humidity: 5% to 95%, non-condensing
• Dimensions: 100 mm (width) x 120 mm (height) x 75 mm (depth)
• Weight: 1.87 lbs
