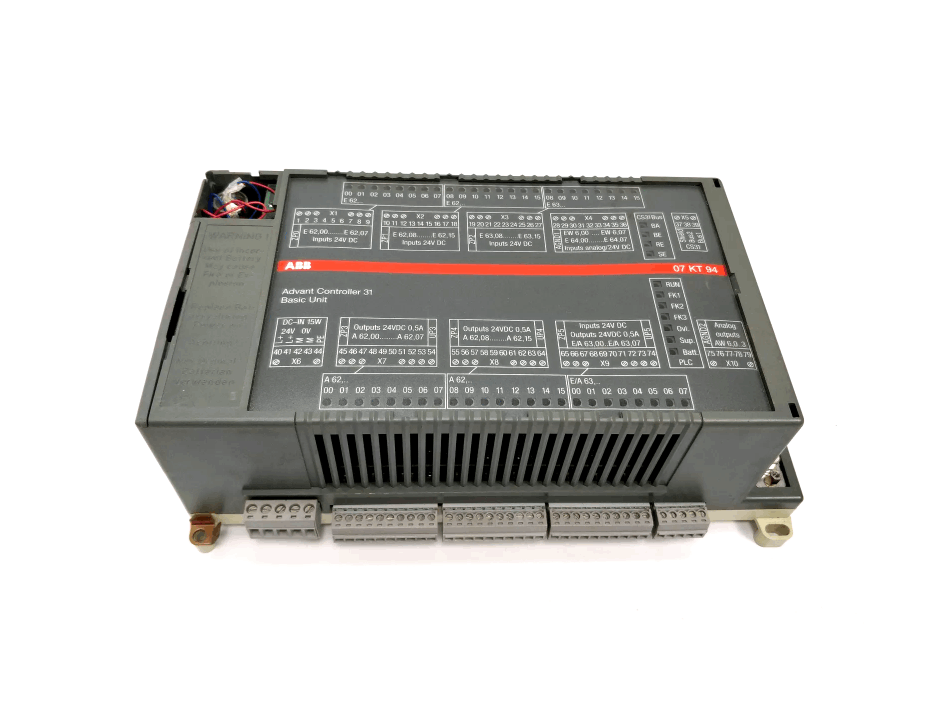

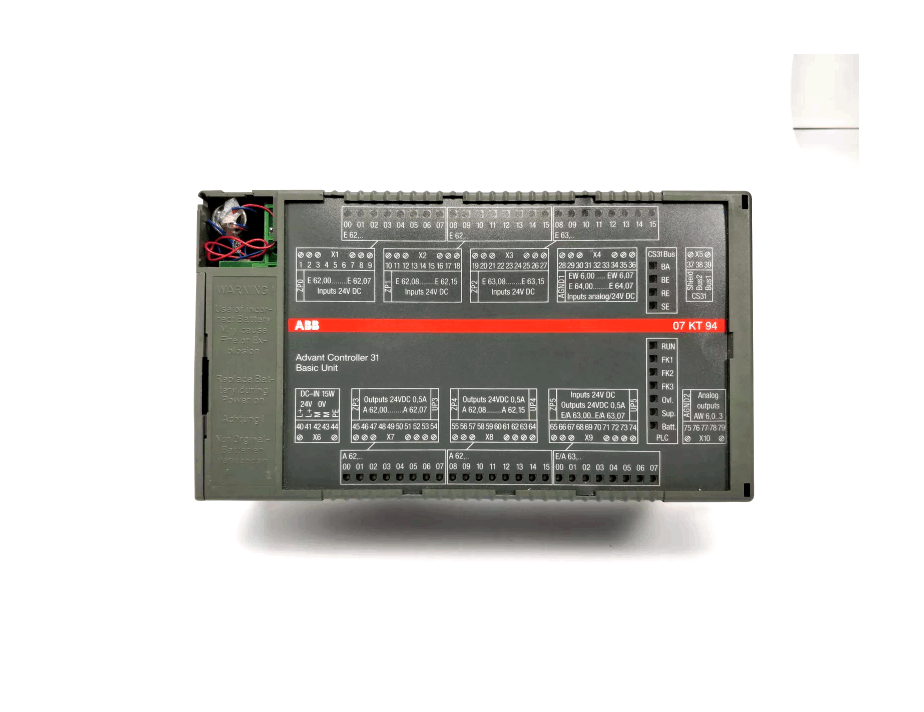

ABB 07KT94 GJR5252100R0101 Advant Controller 31 Basic Unit

ABB 07KT94 GJR5252100R0101 is an Advant Controller 31 basic unit. The AC31/CS31 basic unit 07 KT 94 as well as the communication processor 07 KP 62 of the ABB Procontic T200 are accessed via the serial interface COM1. PLC operation and test functions can be called via ASCII plain text telegrams, the serial interface must be set to "active mode". The 07KT94 basic unit can be used as a bus master, a slave (remote processor) in an Advant Controller 31-S decentralized automation system, or as a stand-alone central unit. It is powered by a 24 V DC power supply.

Fuctions & Features

• 24 digital inputs with LED displays

• 16 digital transistor outputs with LED displays

• 8 digital inputs/outputs with LED displays

• 8 individually configurable analog inputs 0...10 V,0...5 V, ±10 V, ±5 V, 0...20 mA, 4...20 mA, differential inputs, Pt100 (2-wire or 3-wire), the analog inputs are also individually configurable as digital inputs.

• 4 individually configurable analog outputs ±10 V,0...20 mA, 4...20 mA.

• 2 counters for counting frequencies up to 50 kHz, configurable in 7 different operating modes.

• 1 CS31 system bus interface for system expansion

• 1 interface for connecting communication modules

Specification
