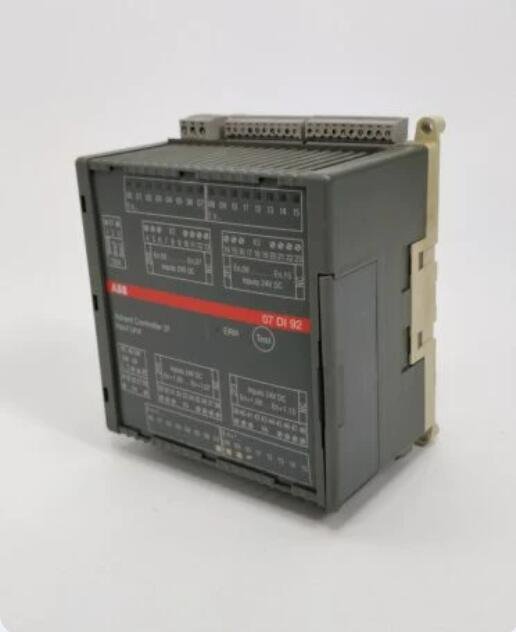

The ABB 07DI92 is a digital I/O module that is part of the ABB AC31 Series 90 distributed automation system. It can be used to monitor up to 32 digital inputs, such as switches, sensors, and contactors. The module has a 24 VDC power supply and can be mounted on a DIN rail.

General Information

• Extended Product Type: 07DI92
• Product ID: GJR5252400R0101
• ABB Type Designation: 07DI92
• EAN (European Article Number): 4013614267659
• Catalog Description: 07DI92: AC31, Digital I/O module 32DI
• Long Description: 07DI92: AC31, Digital I/O module 32DI 24VDC, DI: 24VDC, 1-wire

Additional Information

• ABB Type Designation: 07DI92
• ABS Certificate: 1SAA960000-0102
• Ambient Air Temperature:
  • Operation: 0 … +55 °C
  • Storage: -25 … +75 °C
• Cable Cross-Section: 0.08 … 1.5 mm²
• CN8 (Customs Nomenclature): 85389091
• Country of Origin: Germany (DE), Spain (ES)
• CS31-Bus: 1
• CSA Certificate: 1SAA960000-1102
• Customs Tariff Number: 85389091
• Data Sheet, Technical Information: 2CDC122007D0201
• Declaration of Conformity – CE: 1SAD938505-0047
• Degree of Protection: IP20
• DNV Certificate: 1SAA960000-0304
• EAN: 4013614267659
• eClass: 27-24-22-04
• Environmental Information: 1SAA960001-2401
• Fieldbus Interface Type: CS31 Slave
• Frame Size: Undefined
• Gross Weight: 0.59 kg
• I/O Option: Bus module with Onboard IO – 32DI
• Instructions and Manuals: 2CDC120059M0202
• Invoice Description: 07DI92: AC31, Digital I/O module 32DI
• LR Certificate: 1SAA960000-0502
• Made To Order: No
• Maximum Operating Altitude Permissible: 2000 m
• Minimum Order Quantity: 1 piece
• Mounting on DIN Rail:
  • TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
• Number of Analog Configurable I/Os: 0
• Number of Digital Inputs DC 24V: 32
• Order Multiple: 1 piece
• Primary Voltage: 24 V
• Product Depth: 85 mm
• Product Main Type: 07DI92
• Product Name: Distributed Automation I/O
• Product Net Depth / Length: 85 mm
• Product Net Height: 140 mm
• Product Net Weight: 0.59 kg
• Product Net Width: 120 mm
• Product Type: PLC-AC31-90
• Quote Only: No
• RINA Certificate: 1SAA960000-0802
• RMRS Certificate: 1SAA960000-0702
• RoHS Information: 1SAA960005-4401
• RoHS Status: No declaration needed
• Selling Unit of Measure: piece
• Serial Port 1 Type: RS-485, CS31
• Short Description: 07DI92: AC31, Digital I/O module 32DI
• Stocked At (Warehouses): Menden, Germany; Singapore, Singapore
• Supply Voltage: 24 V DC
• Terminal Type: Screw Terminals, Pluggable
• UL Certificate: 1SAA960000-1602
• UNSPSC (United Nations Standard Products and Services Code): 32151705
• WEEE B2C / B2B (Waste Electrical and Electronic Equipment): Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
