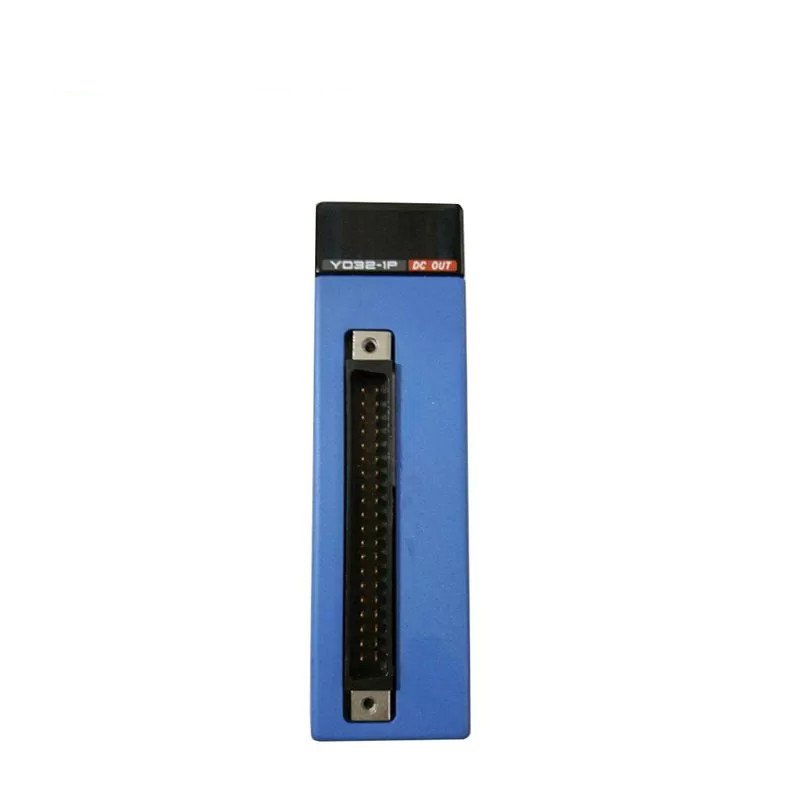

The YOKOGAWA F3YD32-1P is a transistor output module with 32 output points. It belongs to the FA-M3 series of I/O modules from Yokogawa Electric Corporation. This module serves various industrial automation applications, such as manufacturing, process control, and building automation.

Key Features

The YOKOGAWA F3YD32-1P offers:

• Built-in Short-Circuit Protection: Protects all output points.
• Photocoupler Isolation: Prevents noise and crosstalk between input and output circuits.
• High-Speed Output: Achieves a response time of less than 0.5 μs.
• Wide Operating Temperature Range: Functions effectively from 0 to 55°C.

This module is compatible with all FA-M3 CPU modules. You can mount it on a DIN rail using the included mounting bracket.

Specifications

• Number of Points: 32
• Output Type: Transistor
• Output Current: 1 A per point
• Output Voltage: 24 VDC
• Common Line Type: 8 points/common
• Isolation Method: Photocoupler isolation
• Response Time: Less than 0.5 μs
• Operating Temperature Range: 0 to 55°C
• Storage Temperature Range: -20 to 75°C
• Operating Humidity Range: 10 to 90% RH (non-condensing)
• Storage Humidity Range: 10 to 90% RH (non-condensing)
• Dimensions: 90 x 30 x 23 mm
• Weight: 100 g

Applications

The YOKOGAWA F3YD32-1P transistor output module is ideal for various industrial automation tasks. You can use it to:

• Control Solenoid Valves: Efficiently manage fluid flow systems.
• Drive Relays: Enable or disable circuits.
• Switch Lights and Motors: Operate illumination and motorized equipment.
• Interface with PLCs and Other Control Systems: Integrate smoothly into larger automation frameworks.
