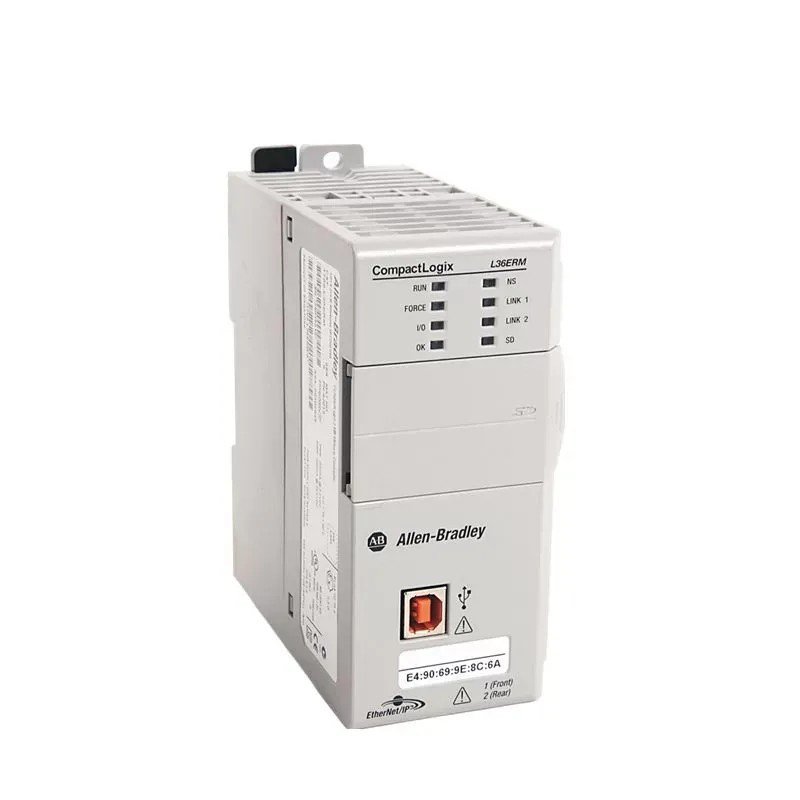

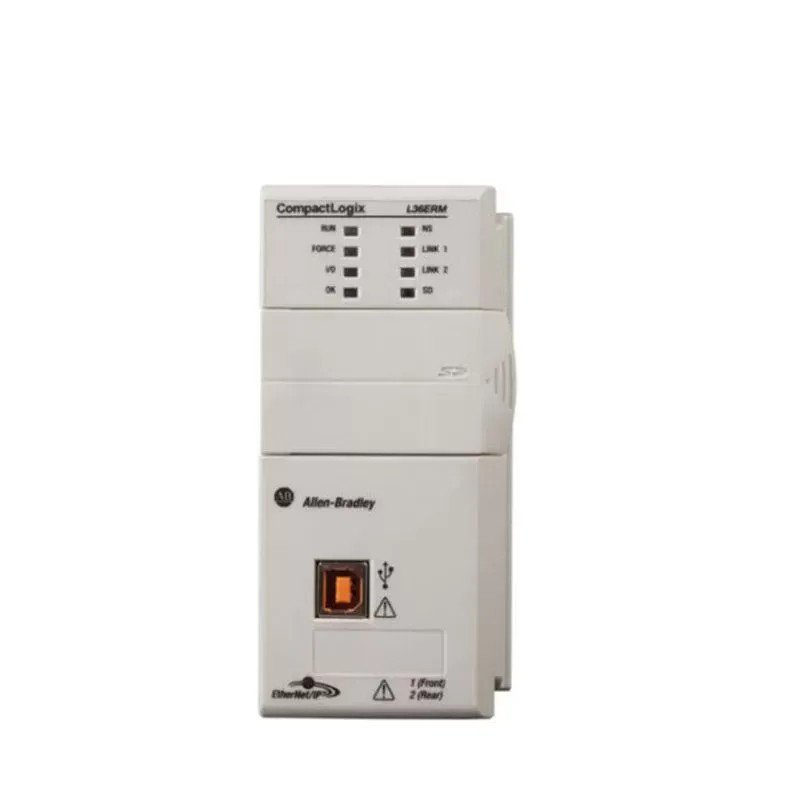

Allen-Bradley 1769-L36ERM CompactLogix Controller

The Allen-Bradley 1769-L36ERM is a compact, versatile controller designed for diverse industrial automation applications. As part of the CompactLogix family, it offers robust performance and flexibility. This model excels in systems needing high-speed communication, distributed I/O, and advanced motion control.

Key Features and Specifications

• Compact Design: The small form factor fits easily into tight spaces, perfect for machine automation and panel-mount applications.
• Dual Ethernet: Two Ethernet ports enable redundant network connections and enhance communication capabilities.
• USB Port: The USB port facilitates programming, configuration, and data transfer.
• Embedded Memory: With 3MB of embedded memory, it provides ample storage for user programs, data, and configuration.
• DLR Capability: Distributed Logic Routing (DLR) distributes logic across multiple devices, boosting system performance and scalability.
• I/O Expansion: Supports up to 30 I/O modules for flexible expansion of input and output points.
• Motion Control: Built-in motion control supports up to 16 axes with kinematics functionality.
• CIP Motion: Complies with the Common Industrial Protocol (CIP) for motion control, ensuring compatibility with other CIP devices.
• Ethernet IP Nodes: Supports up to 48 Ethernet IP nodes for extensive network connectivity.

Applications

The 1769-L36ERM is widely used across various industries:

• Manufacturing: Ideal for assembly lines, packaging machines, and material handling systems.
• Process Automation: Suited for chemical processing, food and beverage production, and water/wastewater treatment.
• Machine Tools: Effective in CNC machines, robotics, and automated testing equipment.
