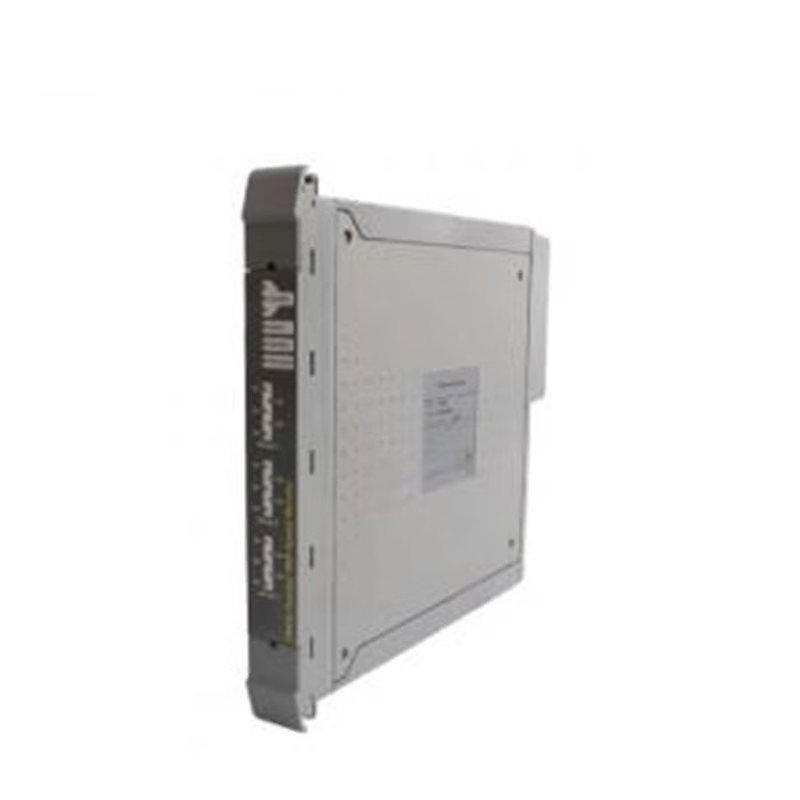

The ICS Triplex T8312-7C is a high-performance 24V DC Digital Input Module designed for industrial automation systems. It offers 40 input channels, ensuring accurate and stable signal detection even in demanding environments. The module supports Ethernet communication and is compliant with multiple industrial standards. It is easy to install and maintain, making it a reliable choice for critical applications.

Technical Specifications

• Number of Input Channels: 40 Channels
• Input Voltage: 24V DC
• Operating Temperature Range: -40°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)
• Communication Interface: Ethernet
• Data Transfer Rate: 100 Mbps
• Maximum Cable Length: 100 meters
• Protocols Supported: Modbus TCP/IP, Ethernet/IP
• Isolation: 1500 V AC (input/output)
• EMC Compliance: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
• Dimensions: 31.8 x 168 x 147 mm
• Weight: 0.6 kg
