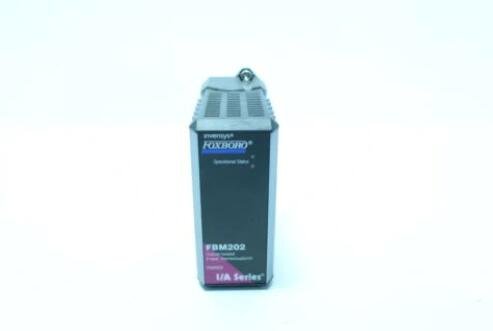

Foxboro FBM202 P0926EQ Channel Isolated 8 Input Thermocouple/mV
Manufacturer: Foxboro (Schneider Electric)
Product Number: FBM202 (P0926EQ)
Category: Thermocouple/mV Input Module (I/A Series)
Number of Channels: 8 channel-isolated inputs
Input Types: Thermocouple (J, K, T, E, R, S, B, N), millivolt signals
Isolation: Channel-to-channel isolation
System Compatibility: Foxboro I/A Series DCS
Application: Temperature measurement for process control
Product Description
The FBM202 P0926EQ is a channel isolated, 8 input, thermocouple/mV input interface module that provides galvanically isolated analog input for thermocouples and mV signals. It is designed for use in industrial automation applications where it is necessary to measure and monitor temperature or other analog signals.
Features
- 8 thermocouple input channels
- 1 isolated RTD reference junction compensation channel
- Accepts standard thermocouples for various temperature ranges
- Thermocouple burnout detection (up-scale)
- Galvanically isolated inputs
- Signal conversion to Fieldbus
- Analog Input application program with configurable integration time and Rate of Change Limits
Technical Specifications
- Input voltage range: -10 to +10 VDC
- Input current range: 0 to 20 mA
- Thermocouple types supported: J, K, T, E, N, S, R, B, and C
- RTD resistance range: 0 to 100 ohm
- Burnout detection: Up-scale
- Isolation voltage: 1500 VDC
- Signal conversion: 16-bit ADC
- Fieldbus: Foundation Fieldbus (FF) or PROFIBUS PA
