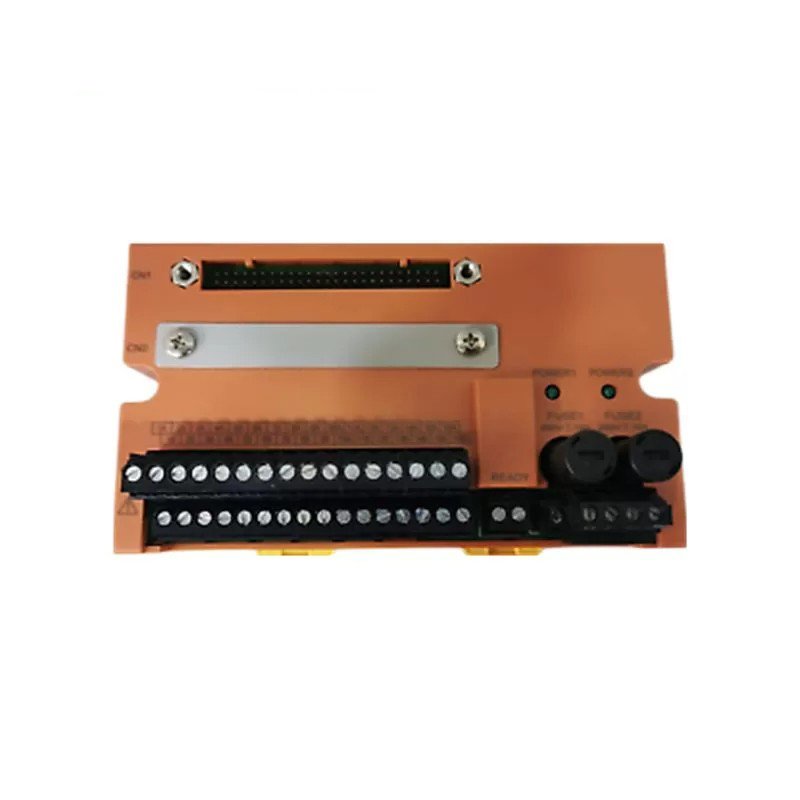

The Yokogawa SBD4D-06 is a specialized terminal board for digital applications. It is compatible with Yokogawa’s SDV144 and SDV541 systems. This component connects various devices and components, ensuring reliable and efficient data transmission.

Key Features and Specifications

DIN Rail Mount: The terminal board mounts on a DIN rail, a standardized metal profile used in electrical installations. This feature makes installation quick and easy.

Digital Interface: The SBD4D-06 handles digital signals, providing a reliable connection for digital data transmission between different parts of a system.

16 Channels: It offers 16 channels, allowing multiple simultaneous connections. This provides flexibility in system design.

Voltage and Current Ratings: Typically, the SBD4D-06 handles 24VDC and 5A. However, consult the product datasheet for precise specifications.

ISA Standard G3: Many models adhere to the ISA Standard G3, ensuring compatibility with a wide range of industrial automation systems.

Explosion Protection: Depending on the specific model, the SBD4D-06 may include built-in explosion protection features. This is essential for applications in hazardous environments.

Single and Dual-Redundant: The terminal board is available in both single and dual-redundant configurations, providing options for different levels of system reliability.

Common Applications

Industrial Automation: The SBD4D-06 is frequently used in industrial automation systems where reliable digital connections are required.

Process Control: It helps monitor and control various industrial processes in process control systems.

Data Acquisition: The terminal board is suitable for data acquisition systems, gathering data from sensors and instruments.
