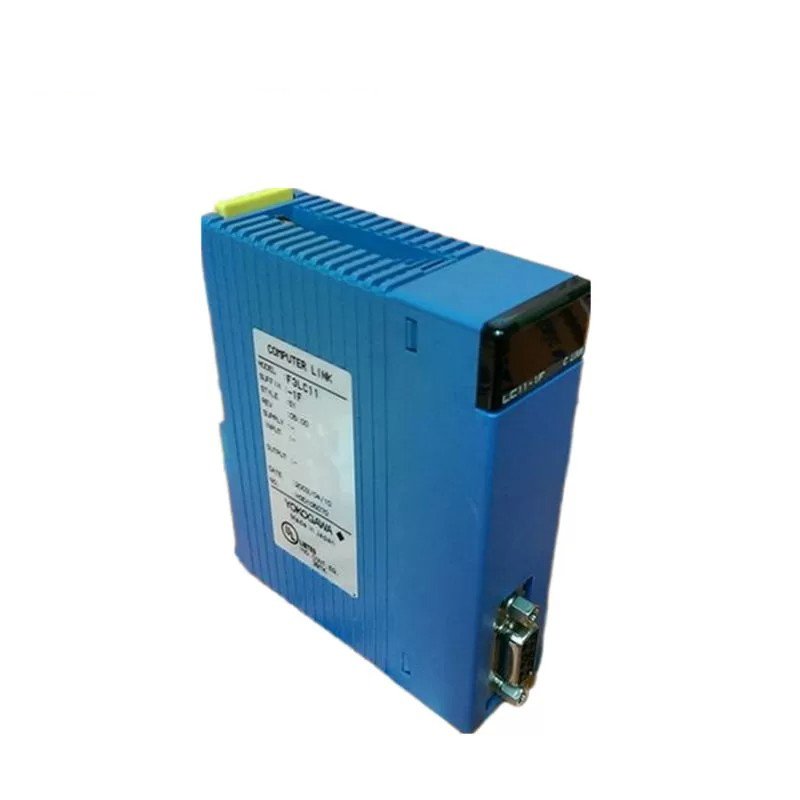

Yokogawa F3LC11-1F Personal Computer Link Module

The Yokogawa F3LC11-1F is a Personal Computer Link Module. It connects FA-M3 devices to a PC or FA computer via RS-232-C communications. You can read and write data from all FA-M3 devices without a transmission application program.

Key Features

• RS-232C communication: Connects to a PC or FA computer via an RS-232C port
• High-speed data transfer: Supports data transfer rates up to 115.2 kbps
• Easy to use: No transmission application program required
• Compatible with all FA-M3 devices: Reads and writes data from any FA-M3 device

Technical Specifications

• Interface: Conforms to the EIA RS-232-C standard
• Transmission mode: Half-duplex
• Synchronization: Start-stop synchronization
• Transmission speed: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps
• Data bits: 7 or 8 bits
• Stop bits: 1 or 2 bits
• Parity: None, Even, Odd
• Flow control: None, RTS/CTS

Dimensions

• Length: 160 mm
• Width: 100 mm
• Height: 30 mm
• Weight: Approx. 300 g

Operating Conditions

• Temperature range: 0 to 50°C
• Humidity range: 20 to 80% RH (non-condensing)

Power Supply

• Voltage: DC 24 V ± 10%
• Power consumption: Approx. 5 W

Materials

• Case: ABS resin
• Connectors: D-sub (male)

Accessories

• User’s manual
• RS-232C cable (optional)

Applications

• Field maintenance: Use the Yokogawa F3LC11-1F to troubleshoot and maintain FA-M3 devices.
• System configuration: Configure FA-M3 devices with ease.
• Data logging: Log data efficiently from FA-M3 devices.
