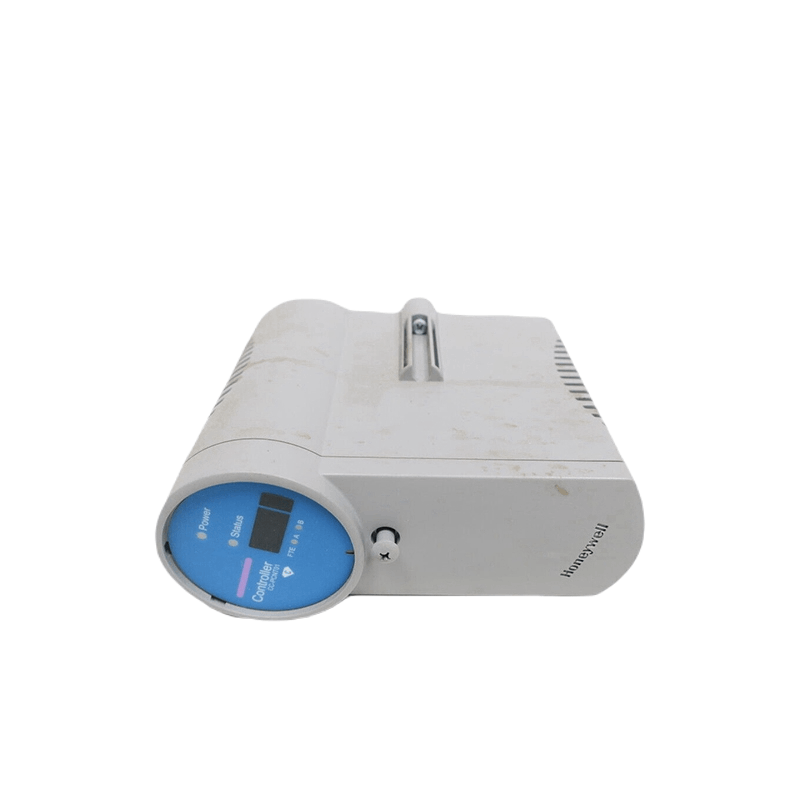

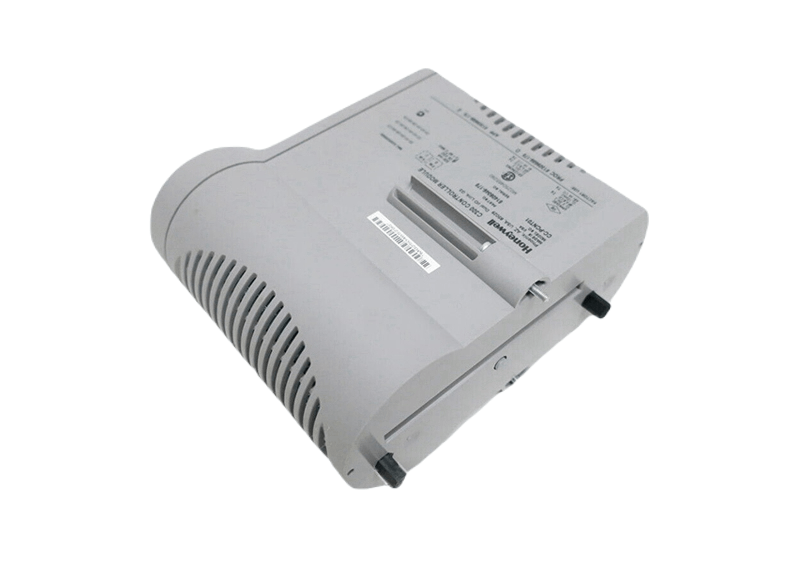

The Honeywell CC-PUIO31 Universal Input Output module is a versatile device that interfaces with a wide range of field devices, including analog input, analog output, digital input, and digital output.

Notable Features

• User Configurable Channels: Each channel can be configured for various functions, including Analog Input, Analog Output, Digital Input, DISOE (Sequence of Events), Digital Output, Pulse Input (up to four channels), and Open Wire Detection.
• Electronic Short Circuit Protection: The module provides electronic short circuit protection to prevent damage to the device.
• Fast Scan: Priority I/O Module Scan ensures quick data processing.
• Safe-State Behaviors: Configurable safe-state (FAILOPT) behaviors are available on a per-channel basis for Digital and Analog Output channels.
• HART Support: The module supports HART 7 for Analog Input and includes a HART Modem per Channel for fast performance.
• Extended Temperature Range: The module can operate in an extended temperature range from -40 to +70°C.

Model Specifications

• Universal Process IO Module: CC-PUIO31
• IOTA Model Numbers:
  • CC-TUIO31 (Non-Redundant, 9″)
  • CC-TUIO41 (Redundant, 12″)

Note 1: Each signal can be shorted in the field with no damage to the IOM or IOTA. Other channels on the same IOM will not be affected. AI, AO, and DI channels are further protected and certified to support energy-limited/non-incendive field wiring connections to Zone 2/Division 2 hazardous locations.

Detail Specifications – Analog Input

• Input Type: Current (2, 3, or 4 wire devices)
• Input Channels: 32 maximum per module (with or without open wire detect)
• A/D Converter Resolution: 16 bit
• Input Range: 0-20 mA or 4-20 mA
• Normal Mode Rejection Ratio: 18 dB at 50 Hz, 20 dB at 60 Hz
• Input Filter Response: Single pole, -3dB @ 6 Hz
• Crosstalk (channel-to-channel): 60 dB
• Input Impedance: 250 Ω
• Input Voltage Range: +33 VDC to -1 VDC
• Input Scan Rate: 10 ms
• Hardware Accuracy: 0.1% of full-scale (23.5 ± 2°C), 0.175% of full-scale (0 to +70°C), 0.25% of full-scale (-40 to +70°C)
• Short Circuit Current Limit: 25 mA

Detail Specifications – Pulse Input

• Channels:

  Any 4 channels

• Frequency: 0-15 kHz
• Minimum Pulse Width: 25 µs

Detail Specifications – Analog Output with HART

• Output Type: 4-20 mA
• Output Channels: 32 maximum per module
• Output Temperature Drift: 0.007% of Full Scale/°C
• Output Readback Diagnostic: ± 4% of Full Scale
• Output Current Linearity: ± 0.05% of Full Scale (nominal)
• Resolution: 12 bit
• Calibrated Accuracy: < 0.35% of Full Scale (25°C)
• Maximum Resistive Load: 825 ohms @ 20 mA
• Maximum Output Compliant Voltage: 16.5 VDC @ 20 mA
• Open Circuit Voltage Supply Voltage: 26 VDC maximum
• Response Time: 80 ms in HART mode, 0.25 ms in non-HART mode

Detail Specifications – Digital Input with OWD

• Open Circuit Voltage Supply Voltage: 26 VDC maximum
• Closed Contact Current: 7 mA (maximum)
• Closed Contact Detection: 3.1 mA < I < 7 mA
• Open Contact Detection: 0.9 mA < I < 2.0 mA
• Open Wire Detect: I < 0.9 mA
• Digital Input Resolution for Sequence of Events (SOE): 1ms (any/all Channels)

Detail Specifications – Digital Input without OWD

• Open Circuit Voltage Supply Voltage: 26 VDC maximum
• Closed Contact Current: 7 mA (maximum)
• Closed Contact Detection: I > 3.2 mA
• Open Contact Detection: I < 2.0 mA
• Digital Input Resolution for Sequence of Events (SOE): 1ms (any/all Channels)

Detail Specifications – Digital Output

• Output Channels: 32 maximum per module
• Output Type: Solid-state source, short circuit protected
• Load Current Off: < 0.1 mA
• Load Current On: 1 mA Minimum to 0.5 A Maximum per channel
• On-State Voltage: 24 V (typ), load current @ 0.5 A
• Off-State Voltage: 0 V
• Off-State Leak Current: < 0.1 mA
• Gap (0 current) of Output to Field on Switchover: 0 ms
