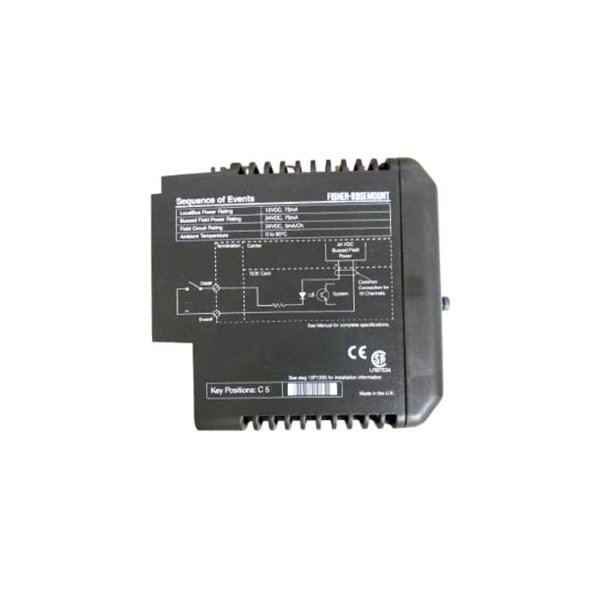

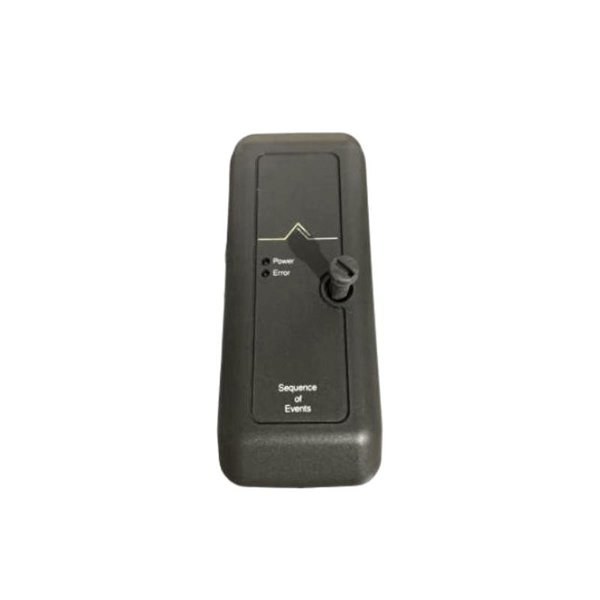

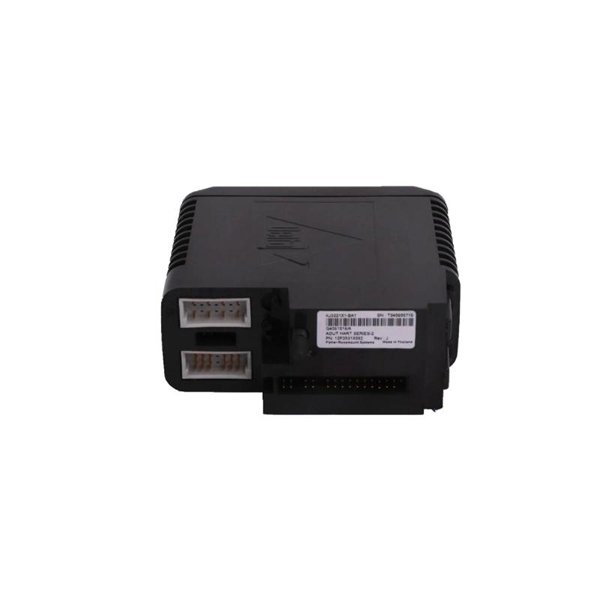

The Emerson KJ3008X1-BA1 / 12P2293X052 Sequence of Events (SOE) Module is a high-performance digital input module specifically engineered for time-critical applications within Emerson’s DeltaV™ and Ovation™ control systems. Designed to capture and record events with microsecond precision, this SOE module plays a critical role in root cause analysis, reliability monitoring, and safety diagnostics.

It is widely utilized in power plants, refineries, and critical infrastructure environments where precise time stamping and high-speed digital input logging are essential. The KJ3008X1-BA1 provides 16 isolated digital input channels capable of detecting state changes with resolution down to 1 millisecond or better, enabling engineers to diagnose event sequences accurately.

The module is hot-swappable and designed for high reliability, ensuring system uptime without disruption during maintenance or replacement. With rugged construction and deterministic response, this module meets the strictest requirements of mission-critical process automation.

Product Specifications

Product Applications

• Power Generation Facilities

  Used to monitor circuit breakers, relays, and critical status indicators in power plants. SOE logging supports fault diagnosis and power system protection.

• Oil and Gas Refineries

  Tracks shutdown sequences and event timing in refinery operations to identify causes of abnormal conditions or trips.

• Chemical Process Industries

  Provides timestamped diagnostics to support safety interlock systems and emergency shutdown sequences.

• Substation Automation

  Critical in substation control panels for monitoring breaker positions, protection relays, and other digital inputs with precise timing.

• Nuclear and Thermal Plants

  Helps meet regulatory compliance with highly accurate SOE capture and synchronization with GPS or IRIG-B time sources.

• High-Security Infrastructures

  SOE modules are used in SCADA systems for critical facilities requiring audit trails and cyber-physical state tracking.

Product Advantages

• High-Resolution Time Stamping

  Records events with millisecond or sub-millisecond accuracy, enabling detailed analysis of system behavior.

• Channel Isolation for Safety and Accuracy

  Each input channel is electrically isolated, minimizing the risk of interference and cross-talk.

• Hot-Swappable Design

  Modules can be replaced or maintained without shutting down the system, minimizing operational downtime.

• Integrated into DeltaV Architecture

  Seamlessly fits into the Emerson DeltaV™ system for unified diagnostics, configuration, and data integration.

• Supports Redundant Configurations

  Ideal for safety-critical environments where redundancy ensures continued operation during faults.

• Rugged and Industrial-Grade

  Operates in extreme environments with wide temperature tolerance and robust housing for harsh conditions.

• Regulatory Compliance

  Certified for use in hazardous and regulated environments (ATEX, IECEx), enhancing deployment flexibility.

FAQ (Frequently Asked Questions)

1. What is the purpose of the Emerson KJ3008X1-BA1 SOE Module?

   It captures and timestamps digital input events for use in sequence-of-events analysis and fault diagnostics.

2. How many input channels does this module support?

   It supports 16 digital input channels, each electrically isolated.

3. What is the timestamp resolution of the KJ3008X1-BA1?

   It typically records events with 1-millisecond resolution, with optional microsecond-level precision when synced with a GPS or IRIG-B clock.

4. Can the module be used in hazardous environments?

   Yes, it holds ATEX and IECEx certifications for deployment in hazardous areas.

5. Does it support hot-swapping?

   Absolutely. The module can be inserted or removed while the system is powered, without causing interruptions.

6. Is it compatible with other Emerson systems?

   Yes, it integrates with DeltaV™ and Ovation™ systems.

7. What type of inputs can this module handle?

   It is designed for discrete/digital inputs such as dry contacts, relay outputs, and logic-level sensors.

8. What happens during power failure—are events lost?

   Events are stored in non-volatile memory, ensuring data is retained even in the event of a power loss.

9. Can this module be used for safety instrumented functions?

   While not a safety-rated module itself, it can be used alongside SIS components to provide diagnostic and SOE logging functions.

10. What diagnostic features does the module support?

    It includes input status monitoring, diagnostics for line faults, and system error reporting through the DeltaV™ interface.
