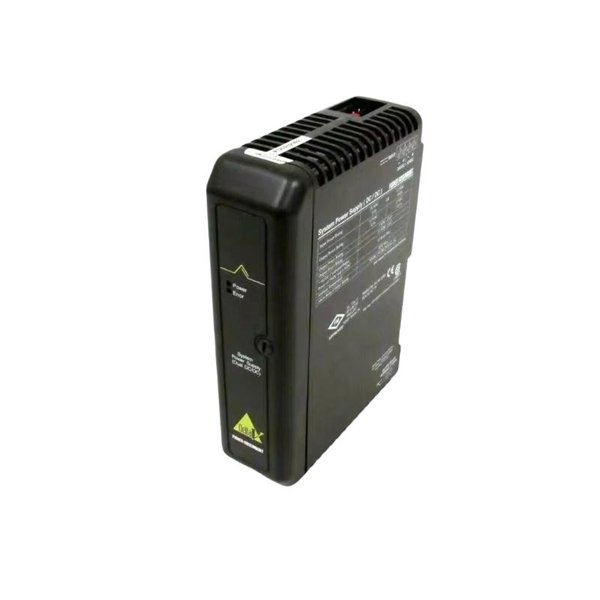

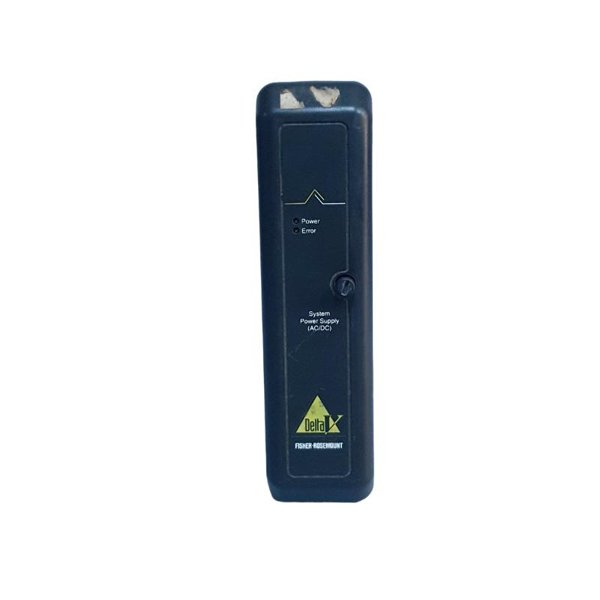

The Emerson KJ1501X1-PW1 is a high-performance system power supply designed to deliver reliable power to industrial control systems and other electronic equipment. This power supply is part of Emerson’s CHARM system, a modular and flexible solution for industrial automation applications. The KJ1501X1-PW1 provides stable and efficient power conversion, ensuring that sensitive components receive a constant and regulated power supply to maintain optimal performance and reliability.

With a compact size and lightweight design, the Emerson KJ1501X1-PW1 system power supply is ideal for use in control panels, remote stations, and other applications where space is limited but power stability is crucial. This module offers a 24V DC output, making it compatible with a wide range of industrial devices, such as sensors, controllers, and actuators. The KJ1501X1-PW1 is designed to ensure seamless operation in demanding environments, where a consistent power source is essential for system reliability and safety.

Product Specifications

Applications

The Emerson KJ1501X1-PW1 System Power Supply is designed for a wide range of industrial and automation applications, where reliable power is critical for the smooth operation of control systems. Some common applications include:

• Industrial Control Systems: The power supply is used in control panels for automated systems, ensuring that sensors, controllers, and actuators receive stable power for efficient operation.

• Process Automation: It is used in process industries like chemical, petrochemical, and food processing plants, where continuous and reliable power is necessary to maintain the stability of automated processes.

• Remote Stations: The KJ1501X1-PW1 is ideal for use in remote monitoring stations, where space is limited, and a reliable power source is needed to ensure continuous operation of field devices.

• Energy Management Systems: In energy generation and distribution systems, this power supply ensures that monitoring and control devices are powered consistently, helping to optimize energy usage and maintain system efficiency.

• Building Automation Systems: It is also used in HVAC systems and security systems where uninterrupted power is crucial to ensure the proper functioning of sensors, alarms, and other connected devices.

• Data Acquisition and Monitoring Systems: The KJ1501X1-PW1 is suitable for use in data acquisition systems that require a stable power source to operate sensors and other connected devices that collect and monitor data.

Product Advantages

• Stable and Reliable Power Supply: The KJ1501X1-PW1 ensures a steady 24V DC output, which is crucial for sensitive equipment that requires stable power to function correctly.

• High Efficiency: With an efficiency rating of 90%+, the module reduces energy loss, making it more energy-efficient and cost-effective for long-term use.

• Compact and Lightweight Design: At just 150 x 100 x 35 mm and 0.2 kg, the module’s compact size makes it easy to integrate into systems with limited space, without sacrificing power performance.

• Wide Input Voltage Range: The power supply accepts a wide input voltage range from 100V to 240V AC, making it versatile and suitable for use in different geographical locations with varying power standards.

• LED Status Indicators: Equipped with LED indicators, the module provides visual feedback about the power status, allowing operators to easily monitor the module’s health and detect any faults.

• Durable and Robust: With an IP20 protection rating, the power supply is durable and capable of withstanding typical industrial environments where dust and contaminants are present.

• DIN Rail Mounting: The DIN rail mounting option makes the KJ1501X1-PW1 module easy to install and secure within control panels, providing a stable mounting system for ease of use and maintenance.

• Temperature Resistance: The -10°C to 60°C operating temperature range ensures reliable operation in various environmental conditions, even in challenging conditions such as extreme temperatures.

• Versatile Use Cases: It is suitable for a variety of applications, from industrial control systems to remote stations, making it a highly flexible and reliable power supply solution.

FAQ

1. What is the output voltage of the Emerson KJ1501X1-PW1 system power supply?

The KJ1501X1-PW1 provides a 24V DC output, which is suitable for most industrial control and automation systems.

2. What is the input voltage range for the KJ1501X1-PW1 power supply?

The power supply can operate with an input voltage range of 100V to 240V AC, making it compatible with power standards in various regions.

3. How much current does the Emerson KJ1501X1-PW1 provide?

The KJ1501X1-PW1 provides a maximum output current of 2.5A, suitable for powering a wide range of industrial devices.

4. What is the mounting type for the KJ1501X1-PW1?

The module is designed for DIN rail mounting, which allows easy integration into control panels and industrial enclosures.

5. What protection class does the KJ1501X1-PW1 power supply have?

The KJ1501X1-PW1 has an IP20 protection rating, offering protection against solid objects larger than 12mm but not against moisture or dust.

6. How efficient is the KJ1501X1-PW1 power supply?

The KJ1501X1-PW1 has an efficiency rating of 90%+, ensuring minimal energy loss and maximizing the use of the power supplied.

7. What are the temperature limits for operating the KJ1501X1-PW1 power supply?

The KJ1501X1-PW1 operates within a temperature range of -10°C to 60°C, making it suitable for a variety of industrial environments.

8. Can the KJ1501X1-PW1 power supply be used in remote locations?

Yes, the KJ1501X1-PW1 is designed for use in remote stations where space is limited and reliable power is essential.

9. What are the status indicators on the KJ1501X1-PW1?

The KJ1501X1-PW1 features LED status indicators that provide real-time feedback on the power status and fault conditions, making monitoring easier for operators.

10. Is the KJ1501X1-PW1 compatible with other Emerson systems?

Yes, the KJ1501X1-PW1 is part of the Emerson CHARM system, designed to work seamlessly with other Emerson automation components.
