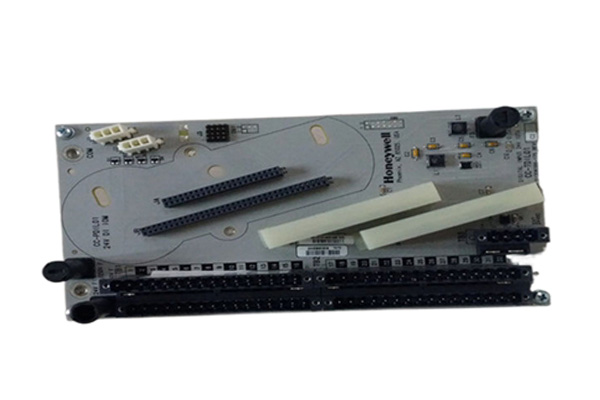

HONEYWELL CC-TDIL01 is a digital input module designed specifically to meet complex industrial automation needs. The following is a detailed introduction to this module.

Product Overview

Brand and model: HONEYWELL, model CC-TDIL01.

Type: Digital input module, is an important equipment in the field of industrial automation.

Functional features: Supports extensive internal diagnostics to ensure data integrity; Equipped with open circuit detection function, capable of detecting and reporting open field lines, effectively preventing incorrect control operations; Optional redundancy and internal and external on-site power supply options provide higher flexibility and reliability for the system.

Application field

The HONEYWELL CC-TDIL01 module is widely used in various modern industrial fields, including but not limited to:

power

petroleum

Mine lifting

Port

Heating

Gas

water supply

sewage disposal

metallurgy

papermaking

spin

chemical industry

Water conservancy, etc

These fields have a high demand for industrial automation control, and the CC-TDIL01 module has become an ideal choice for these fields due to its reliable performance and flexible configuration.

Product features

Internal diagnosis: supports a wide range of internal diagnostic functions to ensure the accuracy and integrity of data transmission.

Open circuit detection: Equipped with open circuit detection function, it can timely detect and report problems with open field lines, preventing the occurrence of erroneous control operations.

Redundancy and Power Selection: Provides optional redundancy configurations and internal and external on-site power options to enhance system reliability and flexibility.

Thermal Management: Adopting innovative design to support enhanced thermal management, ensuring the stability and reliability of modules during long-term operation.

Wiring and installation: The module design facilitates wiring and installation, supports vertical installation and effective wiring management, and improves the convenience of system maintenance.

Installation and maintenance precautions

When installing and maintaining the HONEYWELL CC-TDIL01 module, the following points should be noted:

Static isolation: When repairing or replacing components, static isolation measures should be taken to avoid damage to electronic components caused by static electricity.

Grounding: Ensure good grounding of the module and power cord to prevent issues such as static electricity, surges, and external interference.

Fixation and wiring: When installing modules and wiring, it is necessary to ensure that the fixing screws are locked tightly. After inserting the wiring terminal block, the upper and lower screws should be tightened to prevent module loosening or poor wiring caused by vibration.

Price and purchase advice

The price of HONEYWELL CC-TDIL01 module may vary due to factors such as suppliers and promotional activities. It is recommended to consult multiple suppliers before purchasing to understand the specific price, delivery time, after-sales service, and other information of the product, and choose reputable and high-quality suppliers for cooperation.

Overall, HONEYWELL CC-TDIL01 is a powerful and reliable digital input module with broad application prospects in the field of industrial automation. Through reasonable configuration and installation, this module can provide stable and reliable data input support for various industrial control systems.
