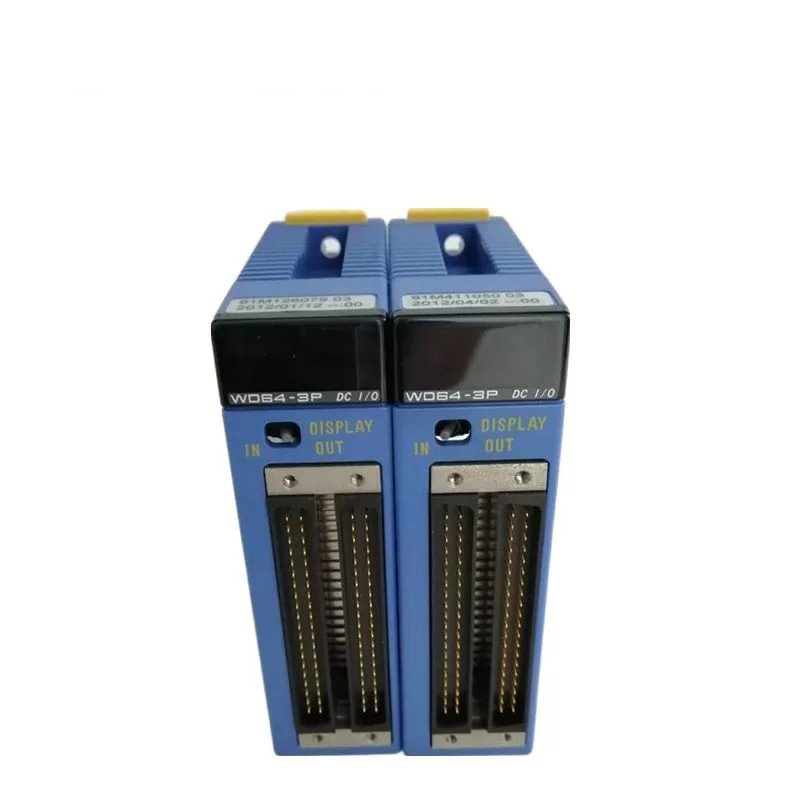

Yokogawa F3WD64-3P Digital Input Module

The Yokogawa F3WD64-3P is a digital input module designed for industrial automation applications. It belongs to Yokogawa’s FA-M3 series, interfacing seamlessly with various sensors and devices providing DC voltage signals.

Key Features

• Input Type: DC voltage
• Number of Inputs: 32
• Common Line Type: 8 points/common
• Isolation Method: Photocoupler
• Rated Voltage: 24V
• Terminal Arrangement: External connection method using a connector or wire
• Built-in Protection: Output short-circuit protection
• Applications: Suitable for process control, machine automation, and data acquisition

Technical Specifications

Input Block

• Input Type: DC voltage
• Number of Inputs: 32 (Terminal Nos. 01 to 32)
• Common Line Type: 8 points/common
• Isolation Method: Photocoupler
• Rated Voltage: 24V

Terminal Arrangement

• External Connection Method
• Connector Type: Specified in the FA-M3 Range-free Multi-controller spare parts list
• Applicable Conductor Size: 0.26 mm² max
• Flat Cable: 1.27 mm pitch, 0.08 mm²
• Wire Connection Method: Soldered or solderless
• Rated Wire Temperature: [Specify the rated wire temperature]

Dimensions

Refer to the product datasheet for detailed dimensions.

Additional Information

• Product Datasheet: For complete and up-to-date information, please refer to the official Yokogawa product datasheet.

Applications

• Process control
• Machine automation
• Data acquisition

Benefits

• Reliable and durable
• Easy to install and configure
• Compatible with other Yokogawa FA-M3 series products
