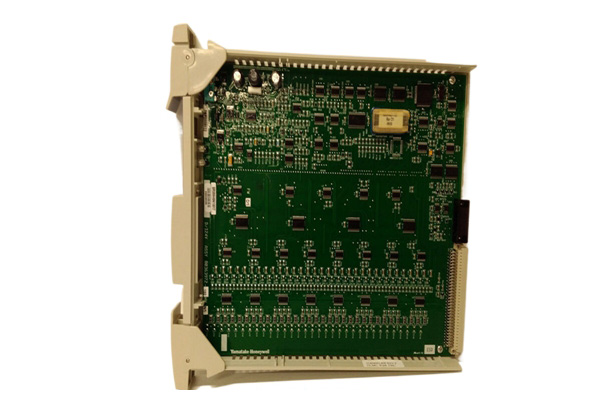

MC-PDIY22 80363972-150 is a card module produced by Honeywell. The following is detailed information about this module.

Main functions and applications

Data communication and control applications: MC-PDIY22 80363972-150 is used for data communication and control applications on the PXI (PCI eXtension for Instrumentation) platform.

Switch input: As a switch input card, it is usually used to input switch status or discrete signals into the control system, achieving communication and data exchange with other devices.

technical parameter

Input voltage and current: The input voltage range is 19.2 to 30 VDC, and the input current is 7 mA per channel.

Input impedance and signal: The input impedance is 3.1 kiloohms, the input signal voltage is 0 to 30 VDC, and the input signal current is 0.5 mA.

Isolation and surge protection: The isolation voltage is 1500 VDC (between channels), and the surge voltage is 1 kV (1.2/50 μ s).

Working environment: The working temperature range is -40 ° C to+70 ° C, and the storage temperature range is -40 ° C to+85 ° C.
