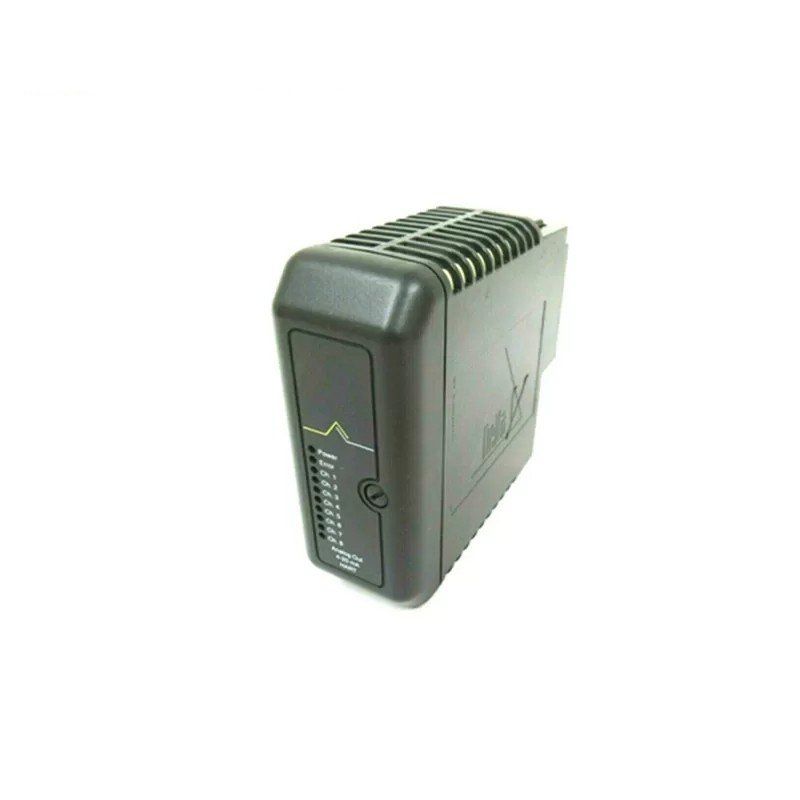

The Emerson DeltaV KJ3001X1-CA1 is a reliable discrete input module within the DeltaV DCS system. It acts as a bridge, connecting field devices with dry contact signals to the system’s backplane for seamless data acquisition.

Key Features

• 32 Channel Capacity: Handles up to 32 individual dry contact signals.
• 24 VDC Operation: Powered by a reliable 24 VDC supply for consistent performance.
• Isolated Channels: Ensures signal integrity and minimizes electrical noise interference.
• Compact Design: Saves valuable cabinet space for efficient system layout.
• Easy Installation: Simplifies setup and maintenance within the DeltaV chassis.

Technical Specifications

• Input Voltage: 24 VDC
• Number of Channels: 32
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Shock Resistance: 5g, 11 ms half-sine wave
• Vibration Resistance: 1 mm peak-to-peak

Applications

• Industrial process control systems
• Manufacturing automation
• Building automation

Benefits

• Improves data acquisition accuracy for discrete signals.
• Enables efficient monitoring and control of various industrial processes.
• Offers a robust and reliable solution for demanding industrial environments.
