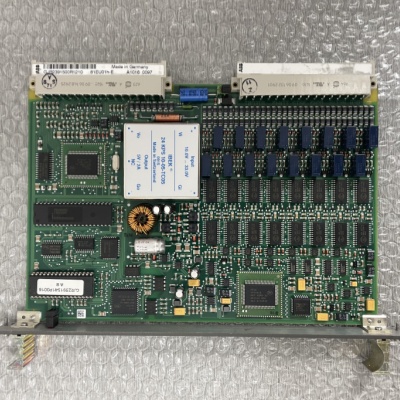

The module consists of 16 functional units. Each functional unit can be used for any type of input mode. Any combination is possible. Parameter assignment and settings are easily programmable via configuration lists. The programmed values ​​are stored in the EEPROM to ensure that they are not lost in the event of a power failure. They can be changed at any time.

Up to four limit values ​​can be assigned to each analog signal. Up to four independent correction and filtering calculations can be performed independently per input module. Programming is done via a function block structure. Observe the boundary conditions for this application.

Features

The module can be plugged into any station of the PROCONTROL bus system. It contains a standard interface for the PROCONTROL station bus.

The module transmits the input signals and/or converted input signals in telegram form via the station bus to the PROCONTROL bus system. Before transmission, the telegram is checked and a parity bit is provided. This ensures that the receiving module can check whether the transmission is fault-free.

The module checks telegrams received via the station bus (e.g. for correction calculations) by means of a parity bit to ensure error-free transmission.

Provision is made to eliminate interference among the function units of the module and the station bus.

Each functional unit is equipped with a short-circuit-proof and monitored transmitter power supply for a wide range of applications.

In case the internal monitoring circuits or the input signal monitor respond, disturbance annunciation ST (general disturbance) will be indicated on the front panel of the module.

response of the internal monitoring circuit sis indicates DAS disturbance annunciations G (module disturbance) on the front pane loft and module.
