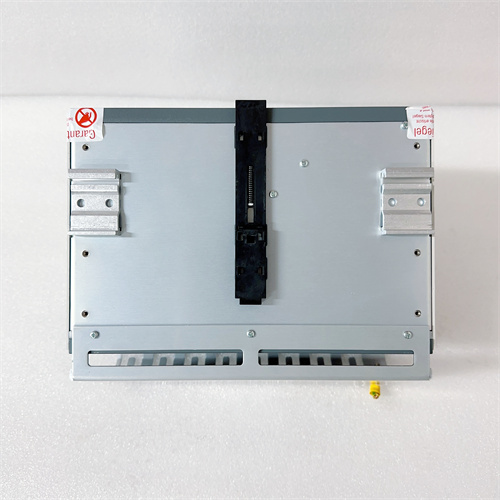

ABB PM803F 3BDH000530R1 Detailed Introduction

PM803F 3BDH000530R1 is a high-performance processor module produced by ABB.The following is a detailed analysis of the product.

Basic information

Product model:PM803F 3BDH000530R1

Manufacturer:ABB

Series:AC800F series PLC system

Technical specifications

Processor:Dual-core ARMCortex-A9,main frequency 1GHz

Memory:1GB DDR3L RAM,supports SD card expansion,maximum support 32GB

Storage:2GB Flash

Interface:Supports multiple communication protocols,including Modbus TCP/IP,Profibus DP,etc.,while providing common signal processing functions such as digital input,digital output,analog input,analog output,etc.

Working temperature:-40 to+70 degrees Celsius

Dimensions:150x110x45 mm

Installation method:DIN rail installation

Protection level:IP20

System features

Operating system:Supports ABB’s own operating system TrioOS and Linux operating system

High precision:The control accuracy can reach 0.1%,meeting the high-precision control requirements

High reliability:Use high-quality components and advanced manufacturing processes to ensure the reliability of the controller

Easy to use:Provide standard programming tools and user manuals for user convenience

Application areas

PM803F 3BDH000530R1 is mainly used in industrial automation control systems,responsible for receiving data from field equipment,executing control programs,and outputting control signals to actuators.It can be used in a variety of application scenarios such as discrete control,process control,motion control,machine vision and data acquisition.This product is widely used in the following industries

Electricity

Oil and gas

Chemicals

Water treatment

Metallurgy

Automobile manufacturing

Food and beverage

Textiles

Packaging

Printing

In addition,this product is also suitable for transportation fields(such as railways,roads,aviation)and construction fields such as smart buildings and building automation.
