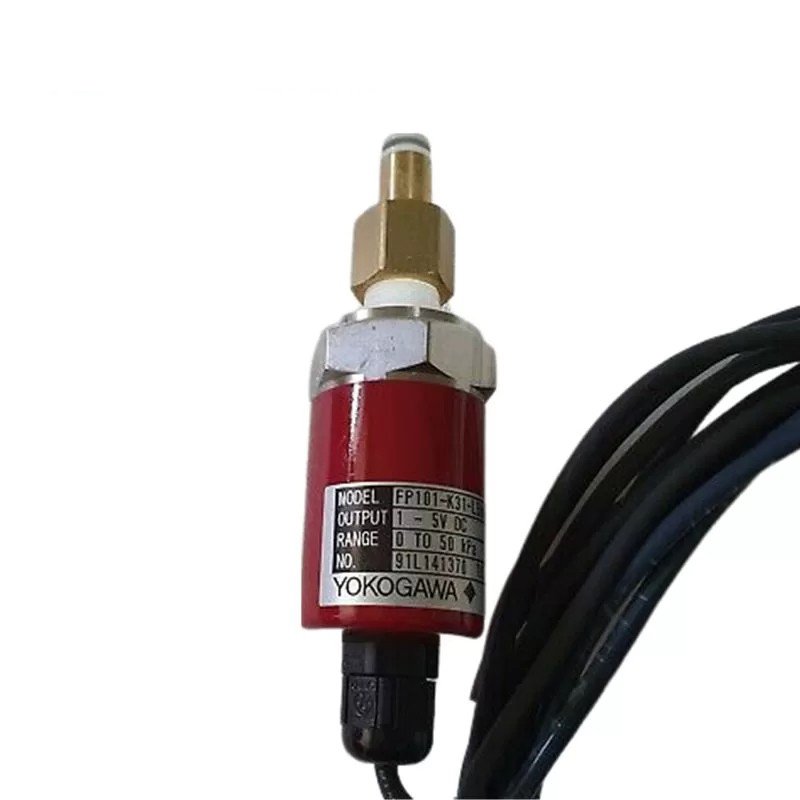

The Yokogawa FP101-E21-L20A*B is a compact and highly accurate pressure sensor. It measures gauge or absolute pressure of gases and liquids, making it ideal for various industrial applications.

Key Features

• High Accuracy: The sensor offers excellent measurement accuracy and repeatability.
• Compact Design: It is small and lightweight, making it easy to install in tight spaces.
• Wide Measurement Range: This sensor measures a broad range of pressures, depending on the configuration.
• Various Output Options: Available with different output signals, such as 4-20mA or 1-5V DC, to fit different control systems.
• Robust Construction: It withstands harsh industrial environments and provides long-term reliability.
• Temperature Compensation: Built-in temperature compensation ensures improved measurement accuracy over a wide temperature range.

Technical Specifications

• Measurement Principle: Strain gauge, piezoresistive
• Pressure Range: 0-500 kPa, 0-500 kPa abs, 2 MPa
• Output Signal: 4-20mA DC, 1-5V DC
• Accuracy: ±0.25% FS
• Repeatability: ±0.1% FS
• Response Time: <10ms
• Operating Temperature: -40 to 85°C
• Process Connection: 1/4 NPT, M20x1.5
• Electrical Connection: 4-wire, 2-wire
• Material: Stainless steel, Hastelloy

Typical Applications

• Process control
• Automation
• Oil and gas
• Chemical processing
• Pharmaceutical
• Food and beverage
