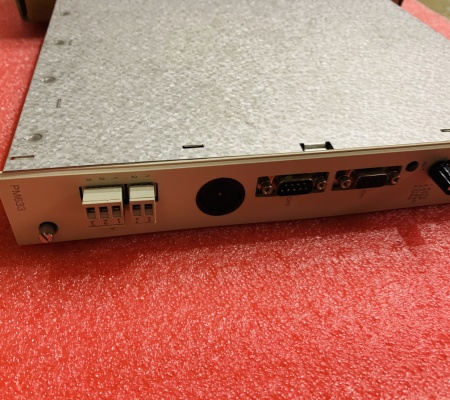

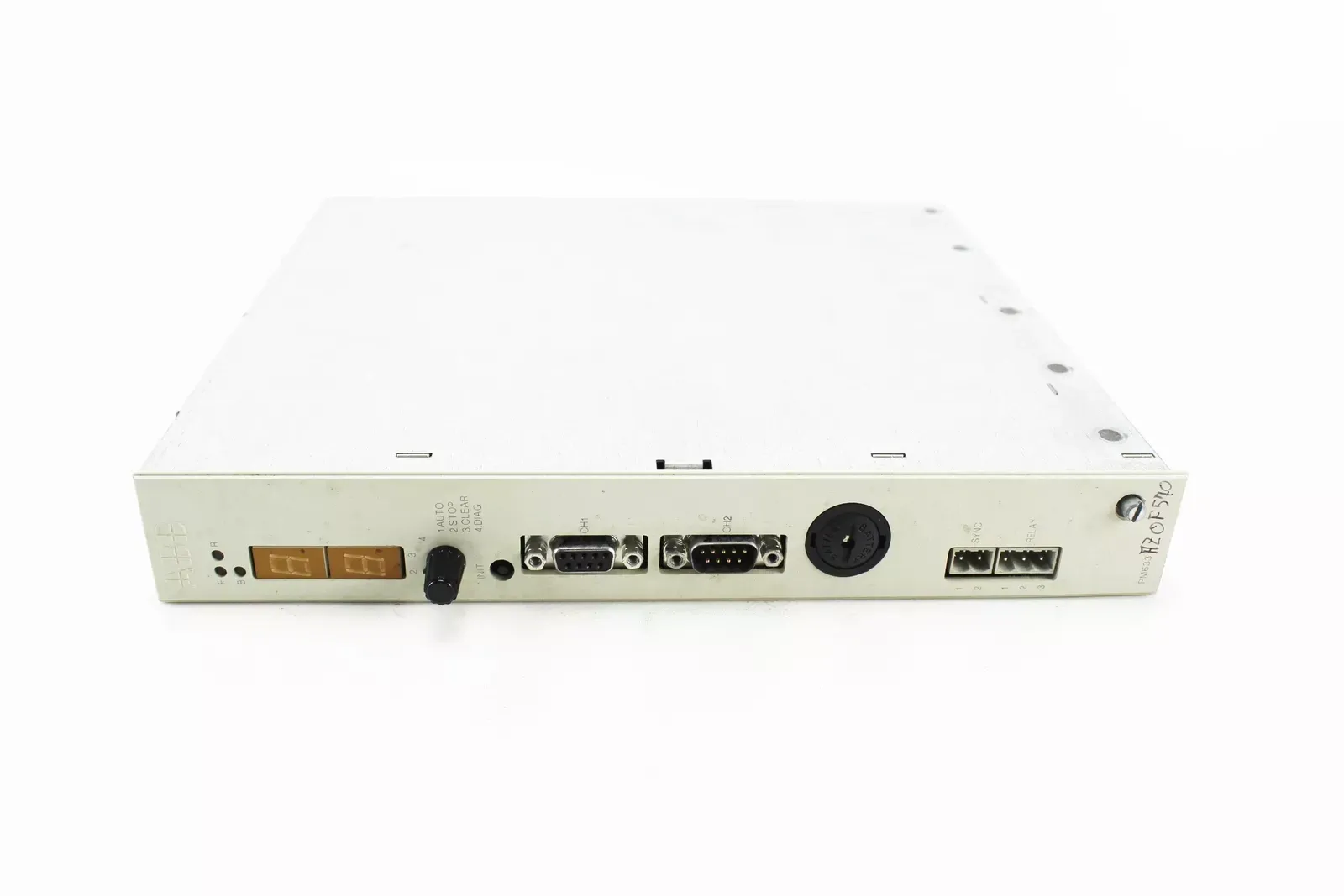

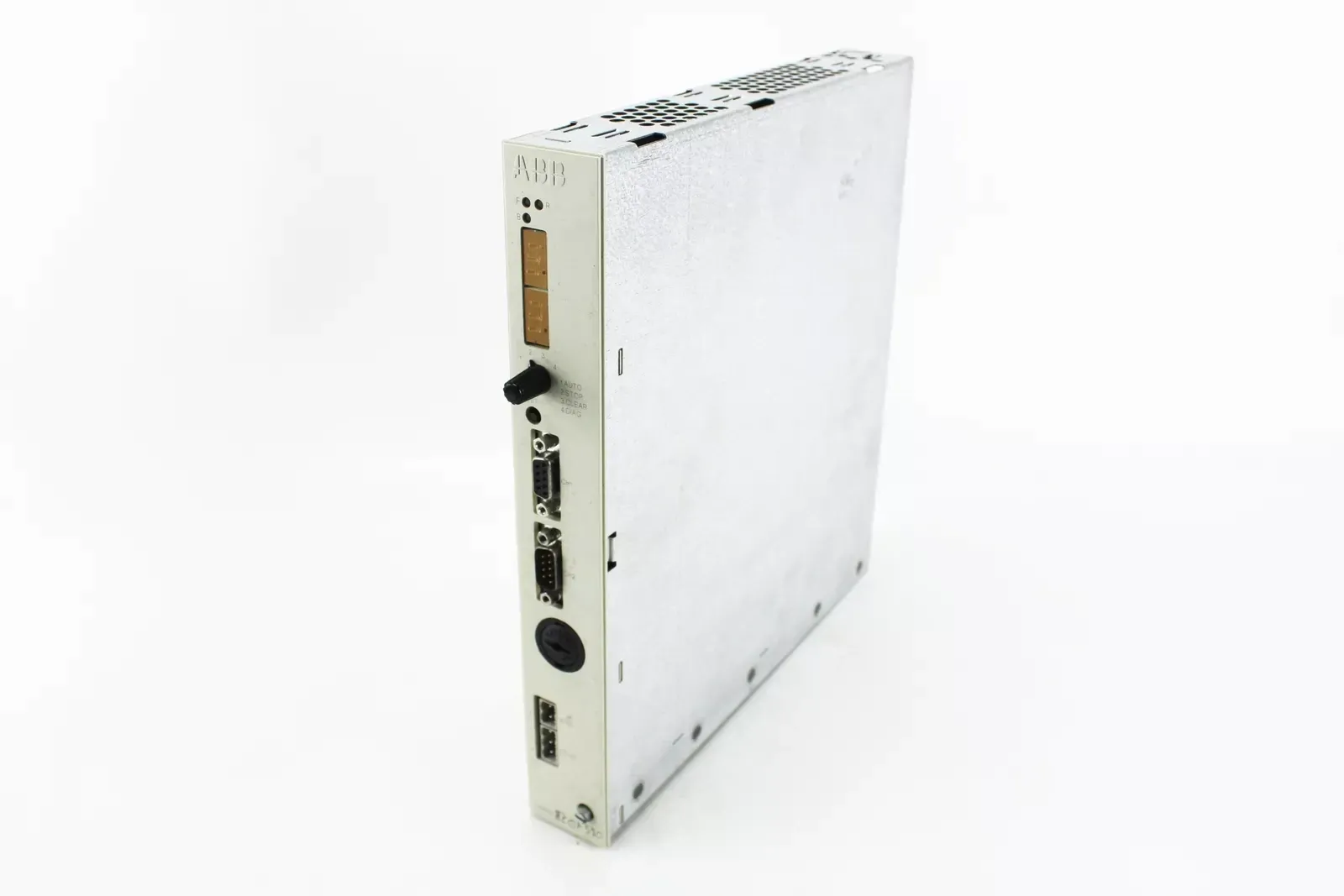

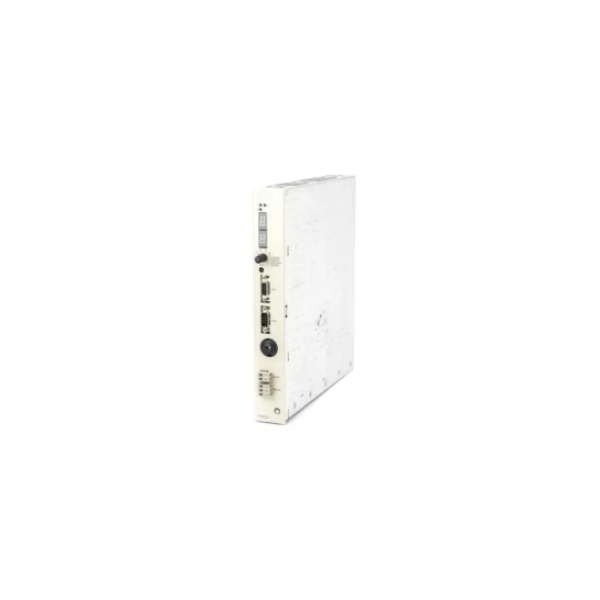

ABB PM633 3BSE008062R1 Processor Module

ABB PM633 3BSE008062R1 processor module, type designation PM633, is part of the ABB Advant Master process control system. Its product type is Central Unit and is a processor unit based on the MC68340 microprocessor, running at 25MHz. It is equipped with a backup battery (type 4943013-3). According to Article 2(4)(c), (e), (f) and (j) of Directive 2011/65/EU (RoHS), this component is exempted from the scope of the RoHS Directive (reference document: 3BSE088609 – ABB EU Declaration of Conformity).

Fuctions & Features

• Data processing and calculation: The ABB PM633 module is based on the MC68340/25MHz processor, which can quickly process and calculate various data in the industrial automation system. For example, it processes real-time data from sensors, performs logical judgments, mathematical operations, etc. to support system control decisions and process optimization.

• System control and coordination: As the central unit, the ABB PM633 module is responsible for coordinating and controlling the operation of the entire system. It can manage and schedule the communication between various modules and devices in the system. For example, it controls the action of the actuator, monitors the status of the equipment, and makes corresponding adjustments according to the preset rules.

• Program storage and execution: The ABB PM633 module has the ability to store and execute programs, and can run various control programs and algorithms.

• Backup function: The equipped backup battery can save key data and program settings in the event of a system power outage to prevent data loss. When the system is powered on again, it can quickly restore to the state before the power outage.

Specification
