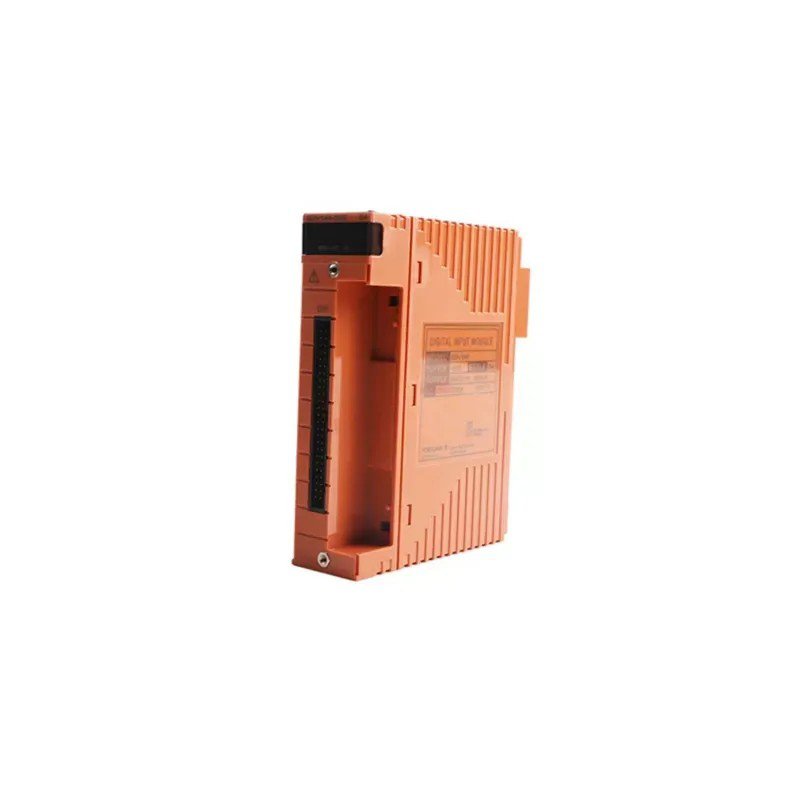

The Yokogawa ADV169-P01 is a 64-channel digital input module for use with Yokogawa DCS systems. It is an isolated module, with common minus side for every 16 channels.

Specifications

• Number of channels: 64
• Input type: Dry contact
• Input voltage range: -10 V to +30 V
• Input current: 10 mA (max.)
• Input impedance: 10 kΩ
• Isolation voltage: 1.5 kVrms
• Common minus side: Every 16 channels
• Output status signals: Transistor contacts
• Power supply: 24 VDC
• Power consumption: 300 mA (max.)
• Operating temperature range: -20 °C to +60 °C
• Storage temperature range: -30 °C to +85 °C
