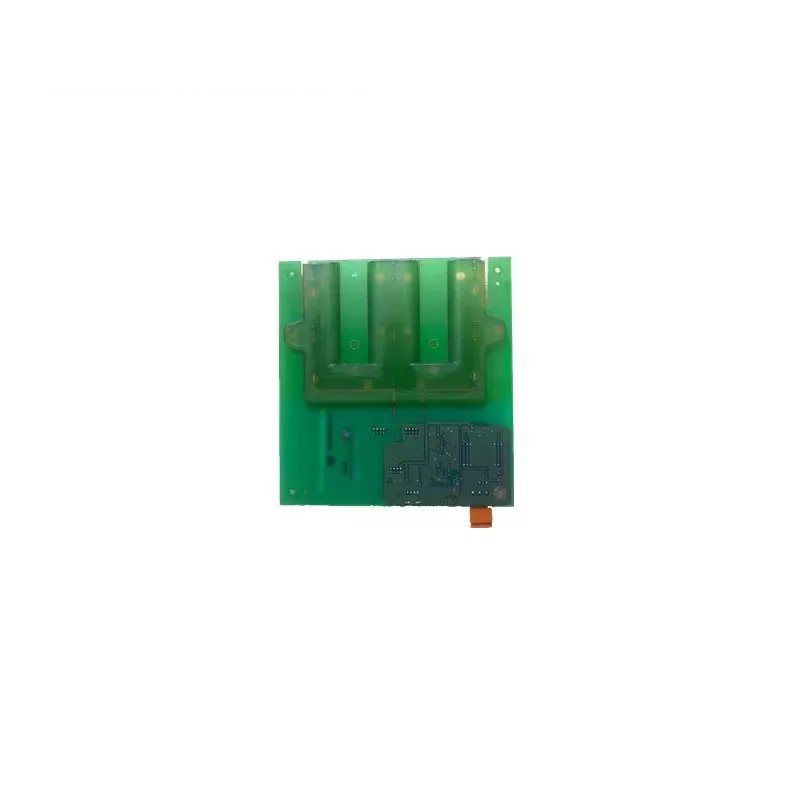

The ABB UBC717AE101 HIEE300927R0101 is a high voltage inverter board used in DC/AC conversion applications. It is a critical component of the ACH500/ACH550 solar inverter series from ABB. This board converts DC power from solar panels into AC power suitable for use in homes, businesses, and various solar power systems.

Specifications

• Manufacturer: ABB
• Part Number: UBC717AE101 HIEE300927R0101
• Series: ACH500/ACH550
• Product Type: High voltage inverter board
• Input Voltage: 400-800 VDC
• Output Voltage: 230/400 VAC
• Output Power: 500/550 kW
• Efficiency: >98%
• Operating Temperature: -20°C to 50°C
• Protection Class: IP20 (Indoor use)

Features

• High efficiency for maximum power output
• Wide input voltage range for compatibility with various solar panels
• High power output suitable for demanding applications
• Robust design for reliable operation in harsh environments
• IP20 protection rating for indoor use

Applications

• Residential solar inverters
• Commercial solar inverters
• Utility-scale solar inverters
• Off-grid solar power systems
