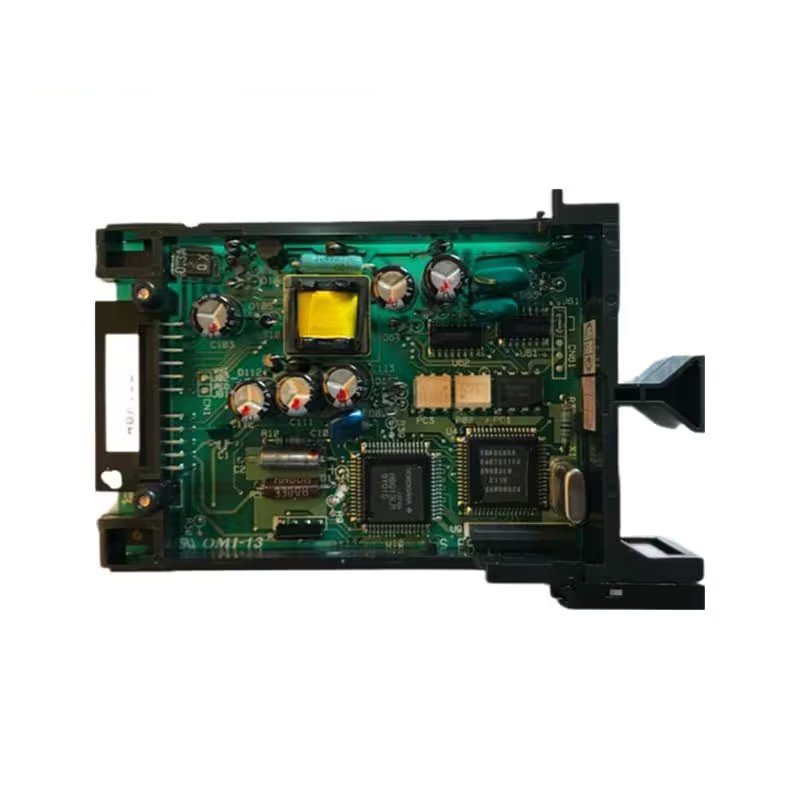

The Yokogawa ER5*B is a specialized input module used in industrial automation applications. It serves as a resistance thermometer sensor input card, converting analog signals from resistance temperature detectors (RTDs) into digital signals. This module is commonly integrated into Yokogawa DCS systems, enabling precise temperature measurements and smooth control over industrial processes.

Technical Specifications

• Input Type: Resistance thermometer (RTD) input.
• Signal Conversion: Converts analog RTD signals to digital signals.
• Output Voltage: 1 to 5 V DC, with two output channels.
• Output Resistance: Maximum 1 ohm.
• Load Resistance: Minimum 2 kohms.
• Compatibility: Compatible with Yokogawa distributed control systems (DCS).
• Part Number: ER5-B
• Weight: 0.15 lbs
• Category: PLCs/Machine Control
• Subcategory: PC Board PLC/Add-On Board
