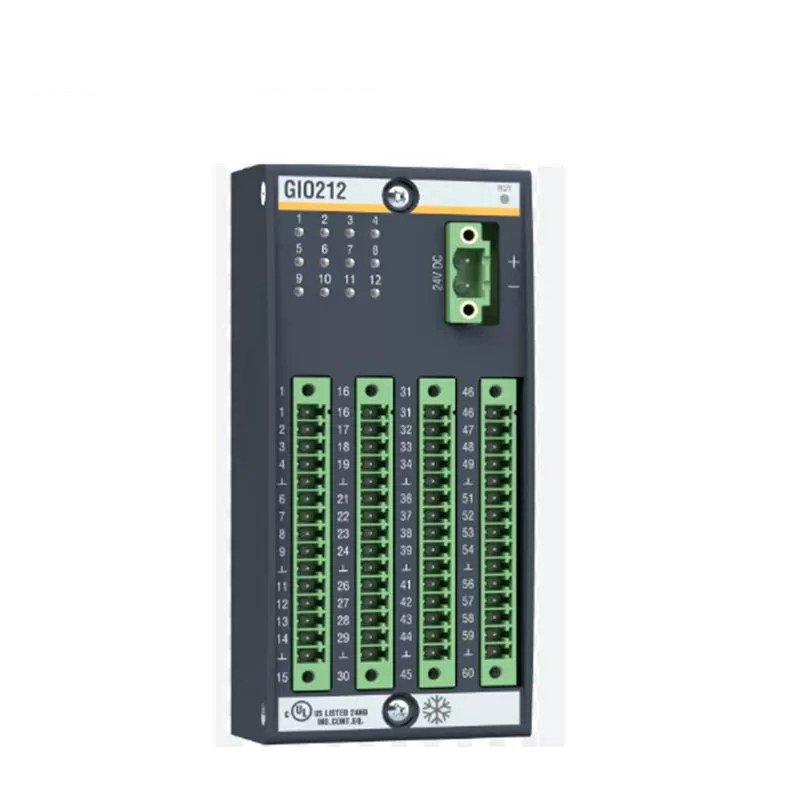

BACHMANN GIO212 Versatile Module Capable

The GIO212 is a highly flexible module designed for diverse signal measurement and output tasks. It features 12 channels, each of which can be configured for analog or digital inputs and outputs. This flexibility supports a broad range of applications.

Key Features

• Versatile Inputs: Measures analog voltage (±10 V to ±10 mV), analog current (0/4 to 20 mA), temperature sensors (Pt100/Pt1000, thermocouples), and digital signals.
• Flexible Outputs: Supports analog voltage (±10 V), analog current (0/4 to 20 mA), and digital signals, including PWM and frequency modulation.
• High Resolution: Provides 16-bit resolution for accurate measurements.
• Temperature Measurement: Compatible with Pt100/Pt1000 sensors and various thermocouple types.
• Digital Functions: Includes digital input, 32-bit counter, and digital output functionalities.
• PWM and Frequency Control: Controls stepper motors and other devices using PWM or frequency modulation.
• Simultaneous Signal Handling: Supports up to two signal types per channel for efficient operation.
• Robust Design: Features protection against overloads, short circuits, and external voltages.
• Easy Configuration: Utilizes a configuration wizard for straightforward setup.

Applications

The GIO212 is ideal for various applications, such as:

• Industrial automation
• Building automation
• Environmental monitoring
• Test and measurement
• Motor control

Technical Specifications

• Number of Channels: 12
• Input Types: Analog voltage, analog current, temperature, digital
• Output Types: Analog voltage, analog current, digital, PWM, frequency
• Resolution: 16-bit input, 14-bit output
• Filter Range: 4 kHz to 0.5 Hz
• Digital Inputs: 24 V, IEC 61131 compliant
• Digital Outputs: 100 mA, Push-Pull, High-Side, Low-Side
• Isolation: 500 V
• Operating Temperature: -25°C to +70°C
