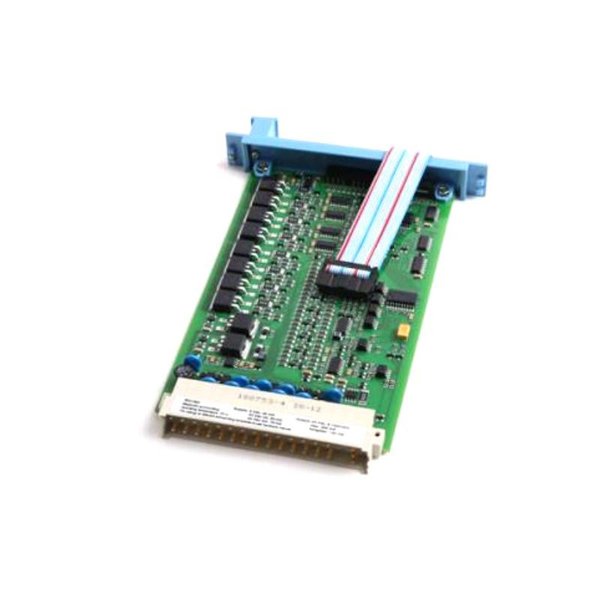

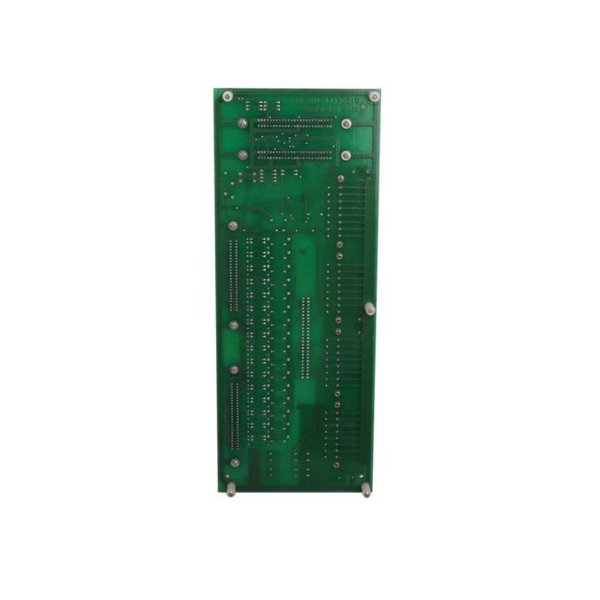

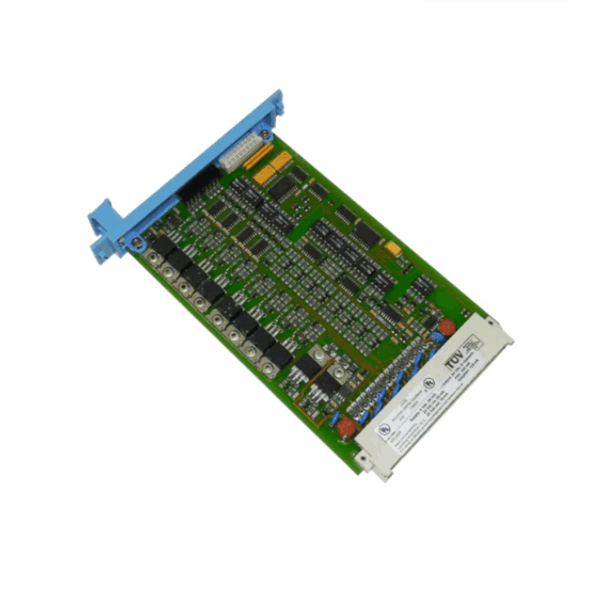

The Honeywell FS-SDO-0824 is a high-performance safety digital output module designed to operate as part of Honeywell’s Safety Manager or Fail-Safe Controller systems. This module provides isolated digital outputs to activate actuators, indicators, or safety relays in response to control signals. The FS-SDO-0824 is designed for use in SIL-rated safety applications, typically within industries such as oil & gas, petrochemical, and power generation.

Engineered to meet stringent safety standards, the FS-SDO-0824 provides reliable performance under demanding environmental conditions. It supports hot-swapping for maintenance flexibility and features diagnostic capabilities for fault detection and system reliability.

Product Advantages

• SIL-rated Safety Compliance: Certified for use in SIL2/SIL3 environments, meeting international safety standards.

• High Output Density: Supports up to 8 digital output channels within a single module, optimizing rack space.

• Comprehensive Diagnostics: Built-in fault detection for short circuits, open loads, and module failures.

• Hot-swappable Design: Allows for replacement without shutting down the system, minimizing operational disruption.

• Rugged Industrial Build: Withstands harsh environmental conditions including vibration, temperature swings, and electrical noise.

• Seamless Integration: Natively supports Honeywell’s Safety Manager platform and compatible controllers for scalable deployment.

Technical Specifications

Product Applications

• Emergency shutdown (ESD) systems in oil & gas refineries

• Boiler protection systems in power plants

• Safety interlocks for chemical process lines

• Alarm and annunciation control in critical systems

• Actuation of solenoids, relays, and beacons in safety zones

• Interface with fire & gas detection shutdowns

Installation Guidelines

1. Pre-check: Ensure module and system are grounded. Confirm power supply range is within specified voltage.

2. Mounting: Insert the FS-SDO-0824 into the designated Safety Manager backplane slot or DIN rail with secure fixation.

3. Wiring: Connect field wiring to terminal blocks. Maintain segregation between input/output and power lines.

4. Commissioning: Use diagnostic LED indicators to verify channel integrity and output status before finalizing.

5. Maintenance: The module supports hot-swapping. Replace with identical part number to ensure functional compatibility.

6. Precautions: Always de-energize field loads when wiring or removing to prevent equipment damage or safety hazards.

Frequently Asked Questions (FAQ)

Q1: What type of signals does FS-SDO-0824 output?

A1: It outputs 24VDC sourcing signals for controlling external devices like relays, solenoids, or alarms.

Q2: Can this module be used in SIL3 safety applications?

A2: Yes, the FS-SDO-0824 meets SIL2 and SIL3 requirements as per IEC 61508 standards.

Q3: Does it support hot-swapping during operation?

A3: Yes, the module is hot-swappable without disrupting system operation, provided it’s replaced with an identical unit.

Q4: What happens if a short circuit occurs on one channel?

A4: The module has self-diagnostics and will isolate the fault while maintaining operation on the remaining channels.

Q5: Is external fusing required for each channel?

A5: Yes, individual fusing is recommended to protect field devices and maintain circuit isolation.

Q6: What is the maximum load current per channel?

A6: Each channel can deliver up to 0.5 A continuously at 24VDC.

Q7: Is the FS-SDO-0824 compatible with non-Honeywell safety systems?

A7: While designed for Honeywell Safety Manager systems, it may be adaptable depending on system architecture and protocols.

Q8: How do I identify a failed output channel?

A8: Channel-specific LED indicators and system diagnostics will flag open load, overload, or short circuit conditions.

Q9: Can I wire inductive loads directly?

A9: Yes, but it is recommended to use flyback diodes or suppression devices to protect the module.

Q10: Are firmware updates required?

A10: No routine firmware updates are necessary; the module is shipped with fixed firmware suitable for safety certification.
