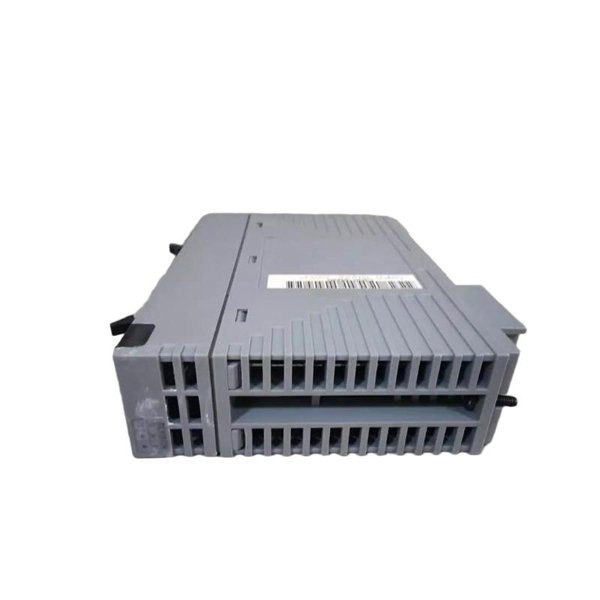

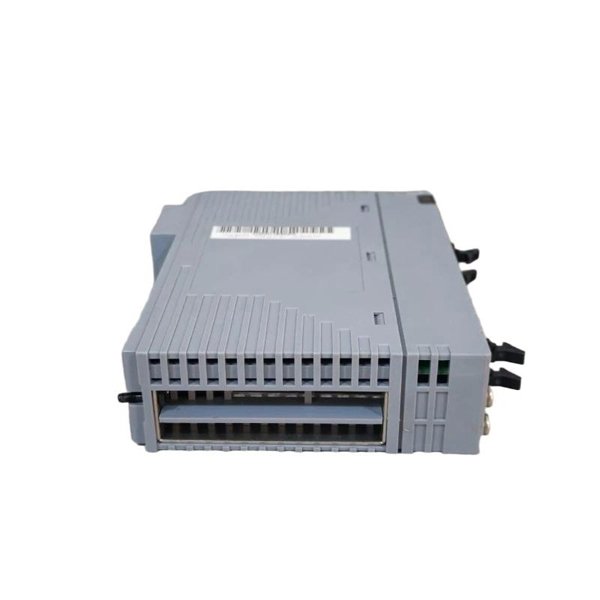

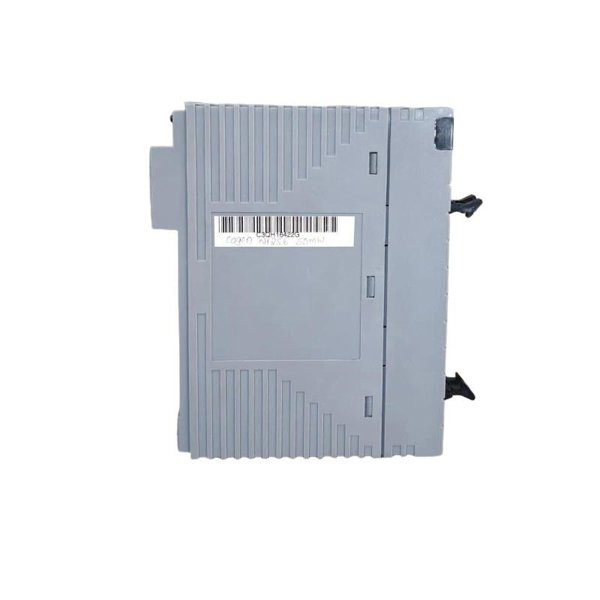

The Yokogawa ADV561-P51 Digital Output Module is built to deliver high-performance, high-reliability digital output signals for critical industrial applications. It allows for the conversion of control signals from a programmable logic controller (PLC) or distributed control system (DCS) to activate or deactivate field devices in an automated environment. The module supports multiple output channels, enabling the precise control of multiple outputs with a high degree of reliability and accuracy.

The ADV561-P51 provides a rugged, compact form factor, making it suitable for a range of industrial environments. Its straightforward installation process and robust design allow for easy integration with existing Yokogawa control systems. The module is equipped with features that ensure minimal maintenance and operational downtime, making it ideal for industries such as chemicals, oil and gas, power generation, and water treatment.

Product Parameters

Product Applications

The Yokogawa ADV561-P51 Digital Output Module is used in a variety of industrial applications where digital output signals are required to control field devices. Some of the key applications include:

• Process Automation: Used in control systems to send on/off signals to devices such as actuators, valves, and relays in process industries.

• Manufacturing Systems: In production environments, the module controls machinery and equipment based on system requirements.

• Energy Management: Controls the on/off states of energy distribution systems, ensuring safe and efficient operation of energy-related equipment.

• Water Treatment: The module is utilized for controlling the state of pumps, valves, and other equipment in water treatment plants.

• Oil and Gas: In the oil and gas industry, the ADV561-P51 is used to control various field devices, ensuring safe operations in hazardous environments.

Product Advantages

1. High Reliability: The ADV561-P51 module ensures a high degree of reliability in critical applications, minimizing the risk of downtime and operational failure.

2. Compact Design: With its small footprint, the module can be easily integrated into space-constrained control panels or racks, ensuring efficient use of space.

3. Wide Operating Temperature Range: It operates effectively in a temperature range from -20°C to +60°C, making it suitable for use in various industrial environments, including harsh conditions.

4. Multiple Outputs: Offering 16 digital output channels, the module is capable of controlling multiple devices simultaneously, which is ideal for complex automation systems.

5. Easy Installation: The module features a DIN rail mounting type, which simplifies the installation and ensures a secure and stable setup.

6. Minimal Maintenance: Designed for longevity and minimal intervention, the ADV561-P51 ensures that operations remain smooth with low maintenance needs.

Frequently Asked Questions (FAQ)

1. What is the primary function of the ADV561-P51 module?

   • The ADV561-P51 is designed to provide digital output signals to control the on/off states of field devices in an automated system.

2. How many outputs does the module provide?

   • The module provides 16 digital output channels.

3. What is the operating voltage of the ADV561-P51 module?

   • The module operates on a nominal 24 VDC power supply.

4. What is the operating temperature range for the ADV561-P51?

   • It operates within a temperature range of -20°C to +60°C.

5. What types of field devices can be controlled by this module?

   • The module can control devices such as actuators, valves, relays, and other similar field equipment that require digital control signals.

6. Can the ADV561-P51 module be used in hazardous environments?

   • The module is rated for indoor use (IP20), making it suitable for industrial environments but not for hazardous or explosive areas.

7. How is the ADV561-P51 mounted?

   • The module is mounted on a DIN rail, allowing for easy and secure installation.

8. What industries can benefit from using the ADV561-P51?

   • It is used in industries such as process automation, energy management, water treatment, and manufacturing, where reliable digital output control is required.

9. What is the weight of the ADV561-P51 module?

   • The module weighs 0.3 kg.

10. What is the material used for the ADV561-P51 housing?

    • The module has a steel housing, ensuring durability and protection.
