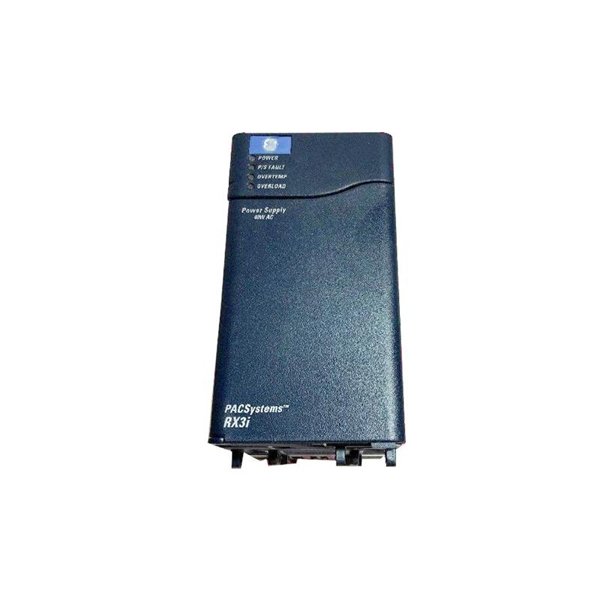

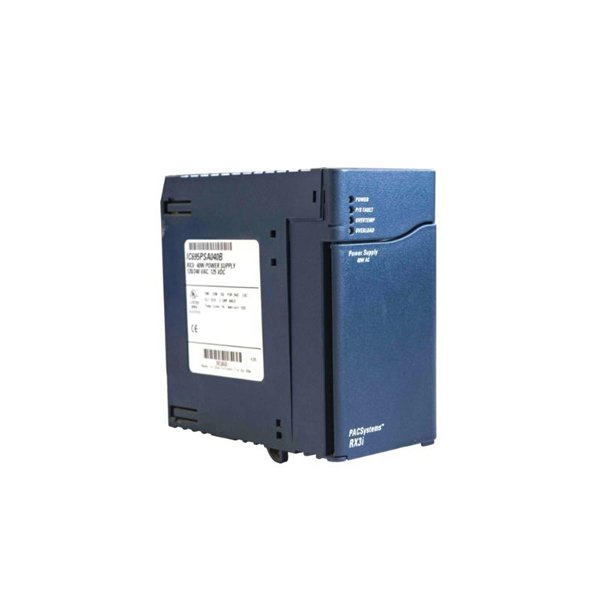

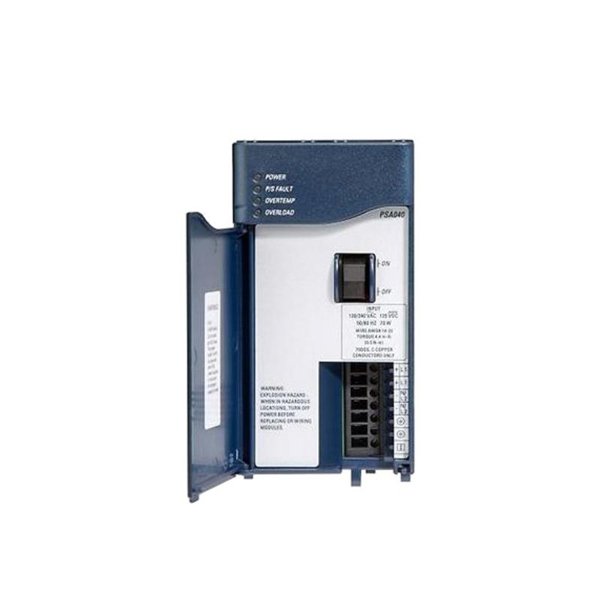

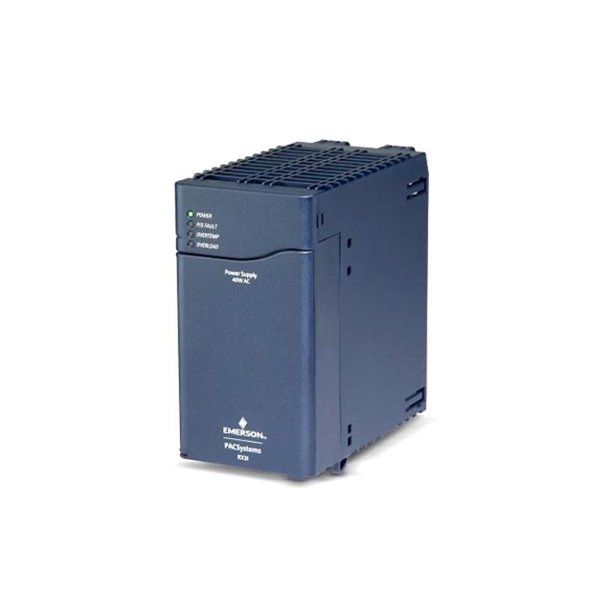

General Electric IC695PSA040M RX3i Universal Backplane Power Supply

The GE IC695PSA040M is a 40W universal power supply designed for the RX3i PACSystem series. It provides a reliable and efficient power source for various industrial automation applications, ensuring stable operation of controllers, I/O modules, and communication devices. With an input voltage range of 85-264 VAC or 100-300 VDC, it offers flexibility for different power environments. The power supply is hot-swappable, enabling easy maintenance and reducing downtime.

Technical Specifications

Applications

The GE IC695PSA040M is widely used in industrial automation systems requiring stable power distribution. It is ideal for:

• Manufacturing plants (PLC-based control systems)
• Power generation and distribution systems
• Oil & Gas industry (SCADA and DCS systems)
• Water treatment facilities
• Transportation and railway automation
• Building management systems

Key Advantages

• Wide Input Voltage Range: Supports both AC and DC power sources, enhancing versatility.
• Hot-Swappable Design: Allows replacement without shutting down the entire system, minimizing downtime.
• Multiple Output Voltages: Provides 5V, 3.3V, and ±12V, ensuring compatibility with various modules.
• High Efficiency (≥85%): Reduces energy consumption and heat generation.
• Enhanced Protection: Features overvoltage, overcurrent, and thermal protection for increased safety.
• Compact & Durable: Small form factor and robust build for harsh environments.
• Industry Certifications: Meets UL, CE, CSA, and RoHS standards, ensuring compliance with international regulations.

Frequently Asked Questions (FAQ)

1. What is the maximum power output of the IC695PSA040M?

   • The power supply delivers 40W output, suitable for RX3i backplane systems.

2. What voltage inputs does the IC695PSA040M support?

   • It operates on 85-264 VAC or 100-300 VDC, offering flexibility in industrial environments.

3. Is the IC695PSA040M hot-swappable?

   • Yes, it can be replaced without powering down the entire control system.

4. What type of protection features does this power supply have?

   • It includes overvoltage, overcurrent, and thermal protection to ensure system safety.

5. Can this power supply be used in harsh environments?

   • Yes, it operates in temperatures from -40°C to +60°C and is built for industrial durability.

6. What certifications does the IC695PSA040M have?

   • It is UL, CE, CSA, and RoHS certified, meeting industry standards.

7. How is the power supply mounted?

   • It supports DIN rail and rack mounting for flexible installation.

8. What devices are compatible with the IC695PSA040M?

   • It is designed for GE RX3i PACSystem controllers and I/O modules.

9. Does it support redundant power configurations?

   • Yes, it can be used in redundant power setups for increased reliability.

10. What is the weight and size of this power supply?

• It weighs 0.522 kg and measures 135 × 71× 127 mm.
