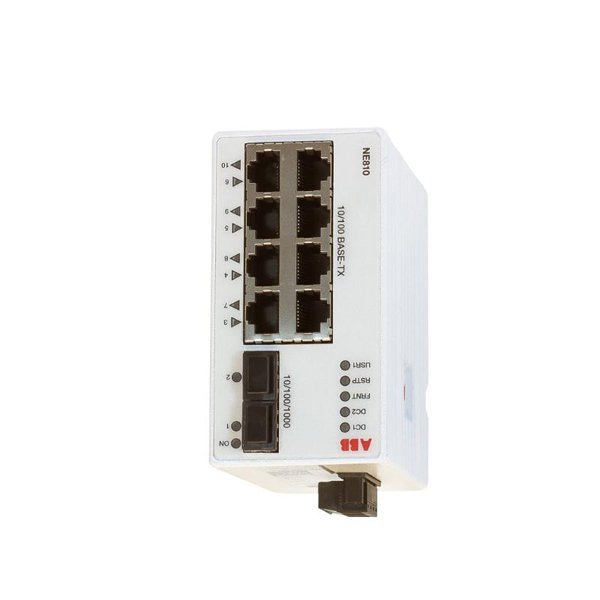

The ABB NE810 (3BSE080207R1) is a rugged, fully managed Layer‑2 industrial Ethernet switch built for deployment in harsh environments. It offers eight 10/100 Mbps RJ‑45 copper ports alongside two multi-rate 10/100/1000 Mbps SFP fiber slots. Designed for reliability, it supports redundant 24–60 V DC power inputs and ABB’s Fast Recovery of Network Topology (FRNT) protocol—making it ideal for safety‑critical systems like tunnels, railways, traffic control, and petrochemical plants.

Product Specifications

Applications

• Real-time Ethernet networking in power plants, tunnels, refineries, and traffic-control systems.

• Redundant ring and point-to-point fiber setups across distances up to 120 km.

• Integration with ABB’s System 800xA and AC 800M control systems.

• Safety-critical deployments in railways and marine vessels (DNV certified).

• Precise QoS support (4 priority queues + HoL prevention) for deterministic process-system communication.

• Remote monitoring via PNSM to maintain network diagnostics and health.

Advantages

• Ultra-fast recovery: FRNT enables network reconfiguration in milliseconds after a failure.

• Flexible media use: Multi-rate SFP slots accept 100 Mbps or 1 Gbps fiber—single-mode, multi-mode, or BiDi modules.

• Robust power: Redundant 19–60 V DC inputs minimize downtime.

• Industrial resilience: Rated for –40 °C to +70 °C, IP40, and marine environments with DNV approval.

• Deterministic quality: Four-tier QoS and strict scheduling ensure real-time data delivery.

• DIN‑mount design: Compact 101 x 52 x 100 mmprofile fits standard control cabinets.

• Backed by ABB: Fully supported with firmware, diagnostics, integration with 800xA, plus long lifespan.

• Managed features: VLANs, SNMP, port mirroring, link aggregation for granular network control.

• Long-range fiber support: SFP transceivers reach up to 120 km for extended connectivity.

• Easy installation: Removable I/O terminal, serial console, and standardized interfaces simplify setup.

Frequently Asked Questions (FAQ)

1. What is FRNT and why is it important?

   It’s ABB’s proprietary Fast Recovery of Network Topology, allowing network recovery in under 30 ms during link failures.

2. Which power supply ranges are supported?

   DC inputs between 19 V and 60 V, with built-in redundancy support.

3. How many fiber ports does it provide?

   Two SFP slots supporting both 100 Mbps and 1 Gbps fiber modules.

4. What are its environmental tolerances?

   Operating from –40 °C to +70 °C, storage –50 °C to +85 °C, IP40 protection.

5. Is it suitable for marine installations?

   Yes—DNV-certified for marine applications.

6. Does it support QoS?

   Yes, four priority queues plus Head-of-Line blocking prevention for real-time networking.

7. What are its exact dimensions and weight?

   101 x 52 x 100 mm; weighs 0.7 kg.

8. Can it integrate with ABB 800xA systems?

   Yes—preconfigured for seamless integration with System 800xA environments.

9. What fiber distance can it cover?

   With the right transceivers, it supports spans up to 120 km (e.g., PT811 series).

10. What management features are available?

    VLANs, SNMP, port mirroring, link aggregation, FRNT, and process network status monitoring (PNSM).
