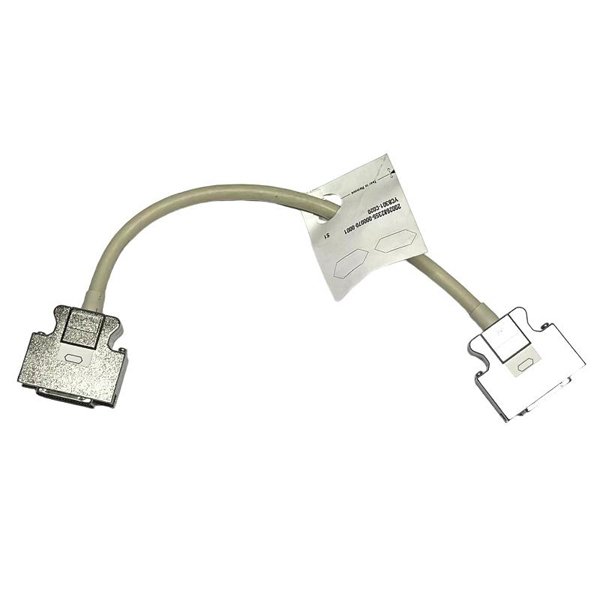

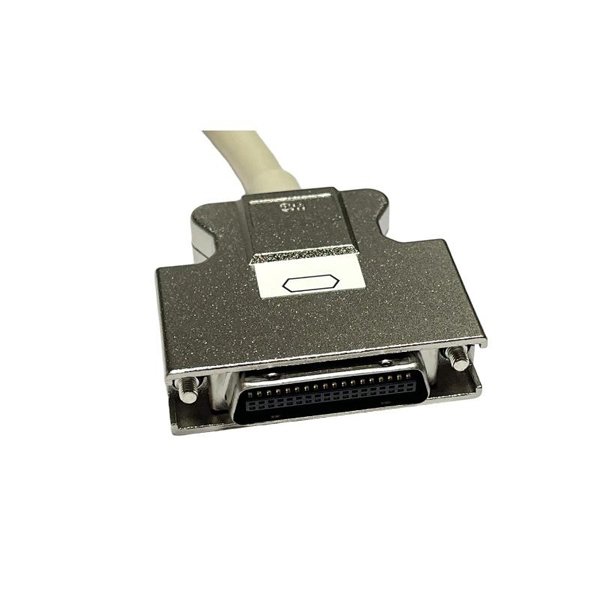

The Yokogawa YCB301 is a high-performance ESB Bus Cable specifically designed for use in Yokogawa’s CENTUM VP and CENTUM CS 3000 control systems. As a core component in the Enhanced System Bus (ESB) communication infrastructure, this shielded cable ensures high-speed, deterministic, and noise-immune data transfer between Field Control Stations (FCS) and various system modules or I/O components.

The YCB301 is engineered with multi-layer shielding, twisted-pair conductors, and high-durability insulation, making it suitable for both cabinet wiring and extended plant installations in harsh industrial environments. It supports dual-redundant ESB topologies, and its design meets Yokogawa’s stringent standards for reliability, safety, and long-term lifecycle support.

Product Specifications

Product Applications

The YCB301 cable is purpose-built for interconnecting control modules, I/O subsystems, and FCS units within Yokogawa’s process automation architecture. Its low signal attenuation and excellent electromagnetic shielding make it ideal for:

• ESB Bus Communication Backbone – Ensures stable and synchronous data transfer between FCS and field I/O.

• Redundant Bus Structures – Enables dual-redundant cabling for safety and fault-tolerant communication.

• Industrial Control Cabinets – Clean and reliable internal wiring for panel-to-panel data links.

• Remote I/O Segments – Supports long-distance transmission for distributed control installations.

• High-Noise Environments – Robust signal integrity even near heavy-duty machinery or high-frequency equipment.

Its performance and certifications make the YCB301 suitable for use in oil & gas, chemical processing, water treatment, power plants, and pharmaceutical manufacturing.

Product Advantages

• Designed for ESB Bus: Engineered to meet the exact electrical requirements of Yokogawa’s ESB protocol.

• Superior Shielding: Protects against EMI/RFI interference, ensuring uninterrupted data communication.

• High Flexibility: Easy to install in tight control panels or conduit systems.

• Long Distance Capable: Maintains signal clarity and synchronization across extended plant layouts.

• Fire-Resistant Jacket: Offers enhanced safety and compliance with industrial cabling standards.

• Reliable Signal Transmission: Low capacitance and impedance-matching improve communication accuracy.

• Environmental Durability: Suitable for installation in temperature-variant and humid locations.

• Certified and Recognized: Built to global industrial safety and environmental standards.

• Compatible with Redundant Topologies: Fully supports Yokogawa’s dual ESB redundancy architecture.

• Low Maintenance: Durable build and long lifecycle minimize replacement or rewiring needs.

Frequently Asked Questions (FAQ)

1. What systems is the YCB301 cable compatible with?

   It is specifically designed for Yokogawa CENTUM VP and CS 3000 systems using the ESB bus protocol.

2. Can the cable be used in redundant bus setups?

   Yes, YCB301 supports dual-redundant ESB connections for high system availability.

3. What is the maximum supported length per segment?

   Up to 20 meters for standard ESB bus communication without repeaters.

4. Does the cable come with factory-terminated connectors?

   It can be ordered with or without connectors depending on your system requirements.

5. Is the YCB301 suitable for use in harsh environments?

   Yes, it is designed with industrial-grade insulation and shielding for noisy or extreme environments.

6. What certifications does the cable meet?

   The YCB301 meets RoHS, CE, UL, and IEC 60332-1 standards.

7. What is the typical impedance of this cable?

   The characteristic impedance is 100 ohms ±10%, optimized for differential data transmission.

8. Can this cable be used outside of Yokogawa systems?

   While possible, it is electrically tuned for Yokogawa ESB systems and may not be ideal elsewhere.

9. Is the cable flame-retardant?

   Yes, it uses flame-resistant PVC insulation and is compliant with IEC flame testing standards.

10. How is the cable packaged?

    It is typically supplied in of 1-20 m, depending on customer needs.
