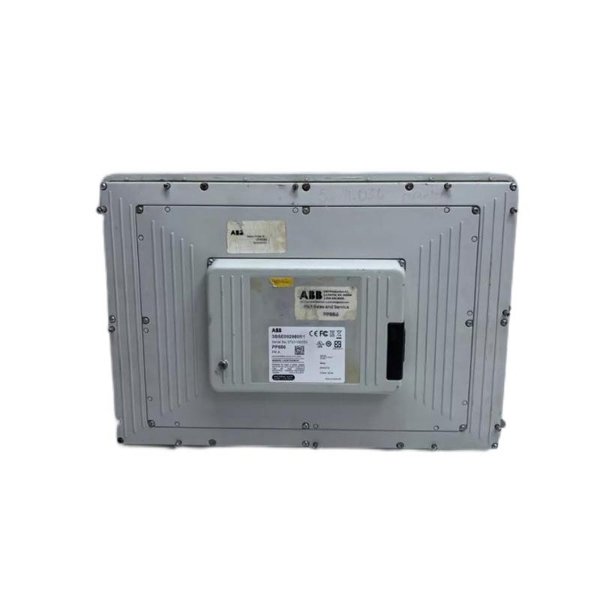

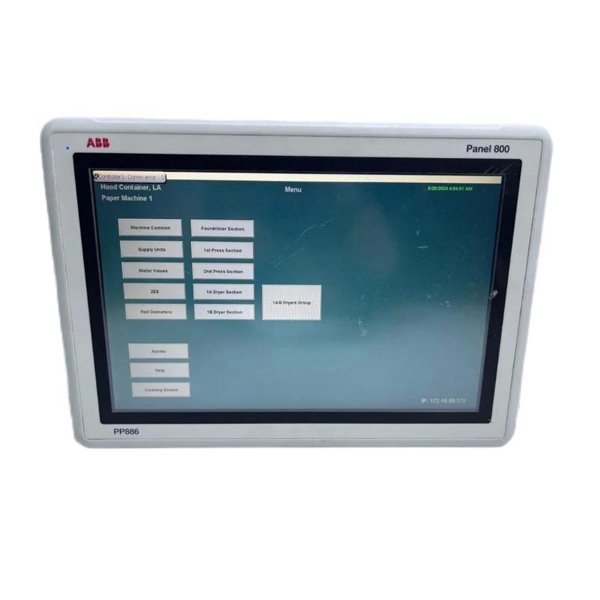

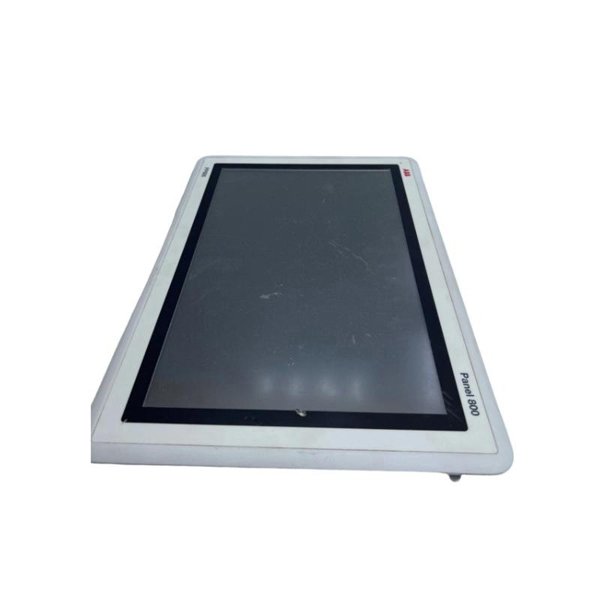

ABB PP886 3BSE092980R1 15 Standard Panel
Manufacturer:ABB
Product Number:PP886 3BSE092980R1
Product Type:15 Standard Panel
Origin:Sweden (SE)
Dimensions:410 x 286 x 61 mm
Weight:3.85 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PP886 3BSE092980R1 is a robust 15.4″ HMI panel from the Panel 800 Standard series, engineered for industrial applications requiring clear visualization, reliable input, and versatile communication. Featuring a high-resolution TFT/LED display and wide protocol support, it enables intuitive and efficient operator interactions across automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Article Number | 3BSE092980R1 |
| Series | Panel 800 Standard |
| Display Type | TFT/LED Touchscreen |
| Display Size | 15.4″ |
| Resolution | 1280 × 800 (16:10) |
| Brightness | 450 cd/m² |
| Touch Technology | Resistive |
| Processor | ARM9 (1 GHz) |
| Main Memory | 1 GB |
| Storage | 2 GB SSD (1.5 GB usable) |
| Ethernet | 2 × 10/100 Base-T |
| USB | 2 × USB 2.0 |
| Serial Ports | 1 × RS232, 1 × RS422/485 |
| Power Supply | 24 V DC (18–32 VDC) |
| Power Consumption | 31.2 W |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5%–85% (non-condensed) |
| Protection (Front/Rear) | IP65 / IP20 |
| Certifications | CE, FCC, KCC, UL, Marine (DNV, KR) |
| Mounting | Panel Mount, VESA 75 x 75 |
| Dimensions (W×H×D) | 410 × 286 × 61 mm |
| Weight | 3.85 kg |
Applications
-
Process automation HMI terminals
-
Machine operation and visualization
-
Maritime control panels
-
Industrial control room displays
-
Manufacturing and packaging equipment interfaces
Key Advantages
High Clarity: Wide 15.4″ TFT display with high brightness and resolution.
Versatile Connectivity: Ethernet, USB, and multiple serial ports support integration with various controllers.
Durable Build: IP65-rated front and rugged aluminum frame for industrial use.
User-Friendly Engineering: Familiar Microsoft® Windows®-style Panel Builder software with simulation support.
Global Certification: Suitable for marine and industrial environments with CE, UL, DNV approvals.
Frequently Asked Questions (FAQ)
Q1: What type of touchscreen does the PP886 use?
A1: It uses resistive touchscreen technology.
Q2: Can the PP886 be used in marine environments?
A2: Yes, it is certified by DNV, KR, LR, ABS, and CCS.
Q3: Is simulation available before deployment?
A3: Yes, applications can be simulated using the Panel Builder 800 software.
Q4: What is the power input range?
A4: The unit accepts 18–32 VDC, with 24 V DC nominal.
Q5: What is the front panel protection rating?
A5: It has an IP65 and NEMA 4X/12-rated front.
Q6: What is the resolution of the display?
A6: The display resolution is 1280 × 800 (16:10 aspect ratio).
Q7: What mounting options are available?
A7: It supports panel mounting and VESA 75 x 75 mount.
Q8: What programming environment is used?
A8: The device is configured using Panel Builder 800 in a Windows-like environment.
Q9: Does it support multilingual interfaces?
A9: Yes, the panel offers multilingual support.
Q10: What are the cut-out dimensions for mounting?
A10: 394 × 270 mm.
