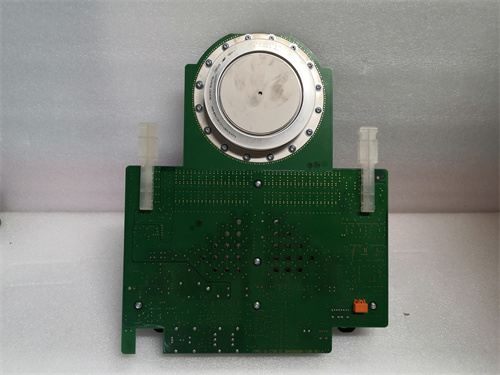

ABB 5SHY4045L0006 3BHB030310R0001 Product Overview

ABB 5SHY4045L0006 3BHB030310R0001 is a thyristor IGCT(Insulated Gate Bipolar Transistor)application module.The following is a detailed analysis of the product.

Product Overview

Brand:ABB

Model:5SHY4045L0006 3BHB030310R0001

Type:thyristor IGCT application module

Technical specifications

Rated voltage:4500V

Rated current:Depends on the specific application scenario and refrigeration conditions,some materials mention 91A

Switching speed:microsecond level

On-state voltage drop:low,helps to improve system efficiency

Protection level:IP68

Dimensions

One statement is 24.5×14.5×3.2 cm

Another statement is 20cm x 15cm x 10cm(may be the size difference of different versions or batches)

Weight

One statement is about 3.7 kg

Another way to say it is about 500g(it may also be the weight difference of different versions or batches)

Voltage range:DC 200-800 V

Current range:DC 15-35 A

Motor power:1.5-3 kW

Maximum speed:30,000 rpm

Product features

High performance:using advanced IGCT technology,with fast switching capability and high voltage resistance.

High reliability:modular packaging design,easy to install and maintain,while providing complete protection functions such as overcurrent,overvoltage,undervoltage,etc.

Multiple communication interfaces:support multiple communication protocols and interfaces,convenient for data transmission and communication with other devices and systems.

Easy to program and configure:provide easy-to-use programming interface and configuration tools,convenient for users to program and set parameters of modules.

High cost performance:excellent performance and reasonable price,with high cost performance.

Application areas

Industrial automation:motor drive,variable frequency speed regulation,etc.

Power system:power transmission and distribution,reactive power compensation,flexible AC transmission system,etc.

New energy:wind power generation,photovoltaic power generation,energy storage system,etc.
