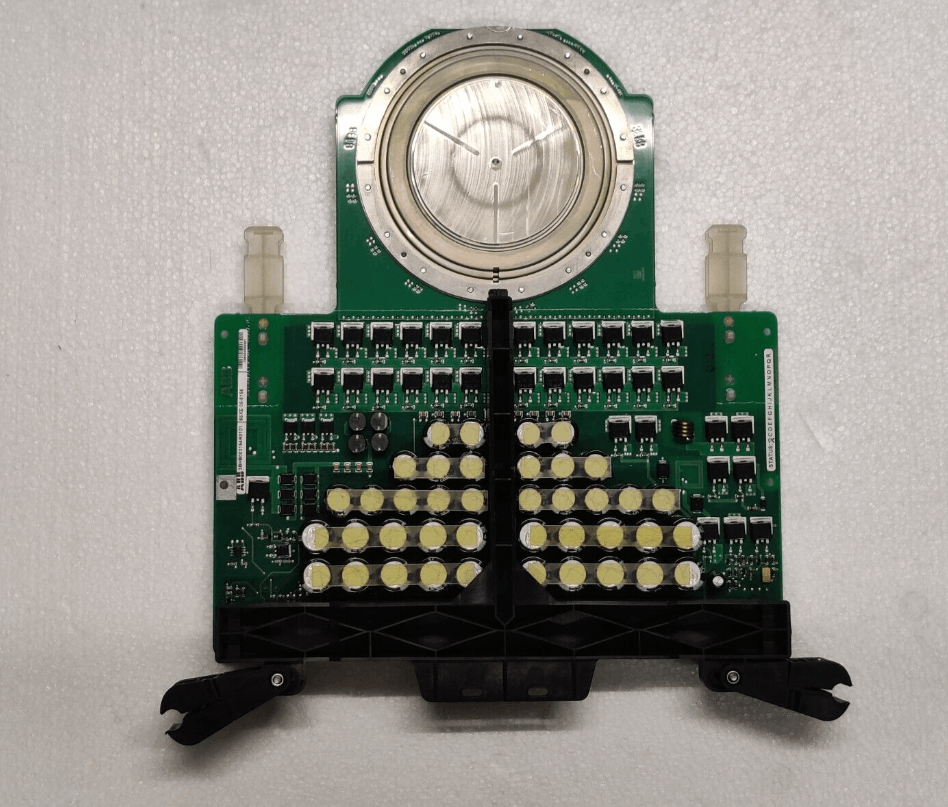

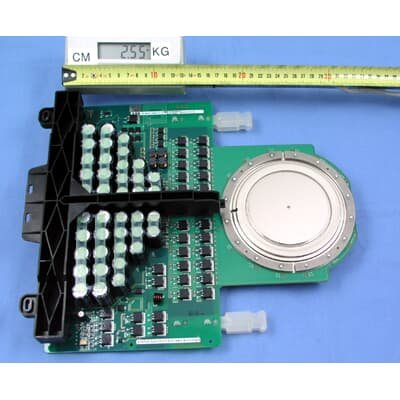

ABB 3BHB003154R0101 3BHC000389P0104 5SHX2645L0004 IGCT MODULE

The ABB 5SHX2645L0004  is a high-voltage insulated gate bipolar transistor (IGCT) rated for 4500 volts and 91 millimeters in diameter. It is a rugged and reliable device that is designed for use in a variety of industrial applications, such as medium-voltage drives, power converters, and protection systems.

General Information

• Product ID: 3BHL000389P0104
• ABB Type Designation: 5SHX2645L0004
• Catalog Description: 5SHX2645L0004; IGCT RC
• Long Description: 5SHX2645L0004 – IGCT RC
• Core Credit: 0.00
• Country of Origin: Czech Republic (CZ), Switzerland (CH)
• Customs Tariff Number: 85413000
• Invoice Description: IGCT RC
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Quote Only: No
• Selling Unit of Measure: piece

Container Information

• Gross Volume: 0 m³

Dimensions

• Product Net Weight: 2.6 kg
• Package Level 1 Units: 1 piece

Technical

• Frame Size: Spare_Parts

Additional Information

• Product Name: IGCT RC

Classifications

• UNSPSC: 32111700

Environmental

• WEEE Category: Product Not in WEEE Scope

FAQs

Q: What is the maximum voltage supported by the IGCT module?

A: The IGCT module supports a maximum voltage of 1200V.

Q: What is the maximum current rating of the module?

A: The module has a maximum current rating of 5000A.

Q: What is the switching frequency range of the IGCT module?

A: The IGCT module can operate at switching frequencies of up to 5 kHz.

Q: What is the operating temperature range for the module?

A: The module can withstand temperatures ranging from -40°C to +125°C.

Q: What is the weight of the IGCT module?

A: The module has a weight of 2.5kg.
