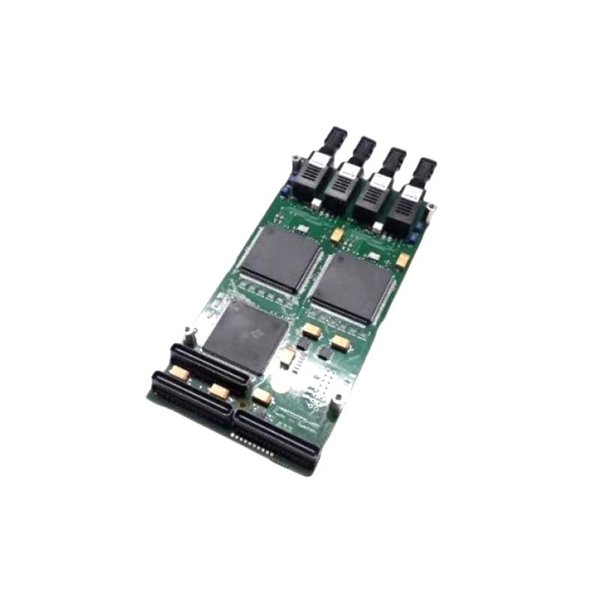

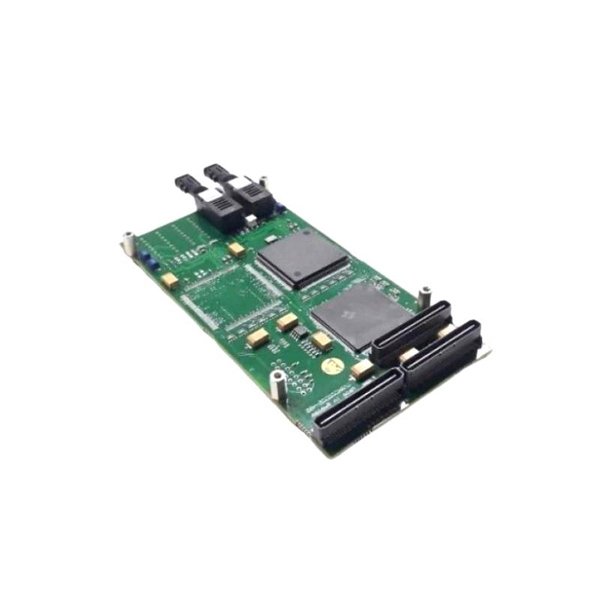

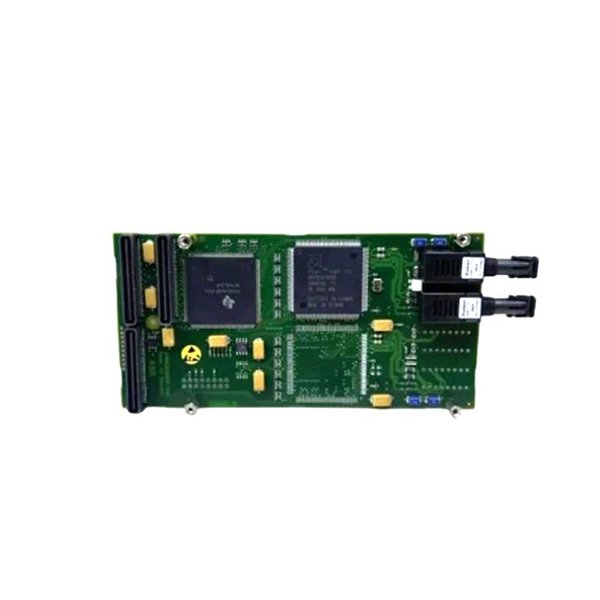

The ABB 1MRK002122-ABr08 Binary I/O Module is designed to interface with industrial automation systems. It serves as a critical component in controlling and monitoring binary input and output signals in a variety of automation applications. The module features high reliability, robust performance, and ease of integration with ABB’s other systems. It is suitable for a wide range of applications including industrial control systems, manufacturing processes, and safety systems.

Product Specifications

Product Applications

The ABB 1MRK002122-ABr08 Binary I/O Module is primarily used in automation systems requiring reliable and efficient binary input and output functions. Common applications include:

1. Industrial Control Systems: Used to interface with sensors and actuators, facilitating automated process control.

2. Manufacturing Processes: Provides input and output interfaces for monitoring machines, conveyors, and other equipment.

3. Safety Systems: Can be employed in safety-critical applications to monitor and control various emergency shutdown systems and alarms.

4. Building Automation: Used in building management systems for lighting, HVAC, and security control.

5. Energy Management: It assists in monitoring and controlling power distribution and energy consumption in industrial plants.

Product Advantages

1. Compact Design: The ABB 1MRK002122-ABr08 module is designed to fit within tight spaces, making it ideal for installations where space is limited.

2. High Reliability: Known for its durability and long-lasting performance in demanding environments, ensuring minimal downtime.

3. Flexible Integration: Its modular design allows for easy integration with other ABB systems and third-party automation equipment.

4. Scalability: The binary I/O module can be expanded or scaled up as needed by adding more modules to meet growing system requirements.

5. Cost-effective: The module offers a cost-efficient solution without compromising on quality and functionality.

6. Wide Temperature Range: Its ability to function in temperatures ranging from -20°C to +60°C provides versatility in various industrial environments.

7. Easy Installation: The module features screw terminals for quick and easy connection and is designed to be mounted on a standard DIN rail.

8. Communication Flexibility: The module supports Modbus RTU and ASCII protocols, offering flexibility in communication with other devices.

FAQ

1. What is the voltage rating of the ABB 1MRK002122-ABr08 module?

   • The module operates at a voltage range of 24V DC.

2. How many inputs and outputs does the module support?

   • The module supports 8 binary inputs and 8 binary outputs.

3. What is the operating temperature range of this module?

   • The module operates between -20°C and +60°C.

4. What type of mounting does the ABB 1MRK002122-ABr08 use?

   • It is designed for DIN rail mounting.

5. What communication protocols are supported by the module?

   • It supports Modbus RTU and ASCII communication protocols.

6. Is the module protected against dust and water ingress?

   • Yes, it has an IP20 protection rating.

7. Can this module be used in hazardous environments?

   • The module is designed for standard industrial applications and may not be suitable for hazardous environments without additional protective measures.

8. What is the weight of the ABB 1MRK002122-ABr08 module?

   • The module weighs 0.3 kg.

9. Can this module be used in remote monitoring systems?

   • Yes, it is ideal for remote monitoring and control when integrated with appropriate automation systems.

10. Which communication protocols does the module support?

    • The ABB 1MRK002122-ABr08 supports Modbus RTU and ASCII communication protocols, ensuring seamless integration with other devices in automation systems.
