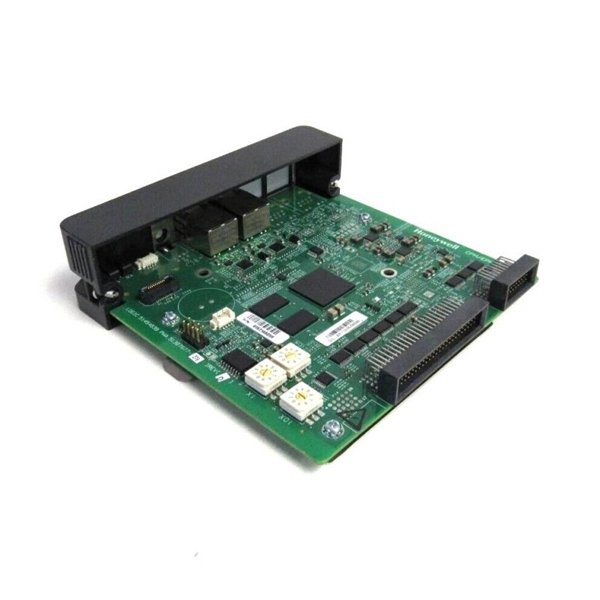

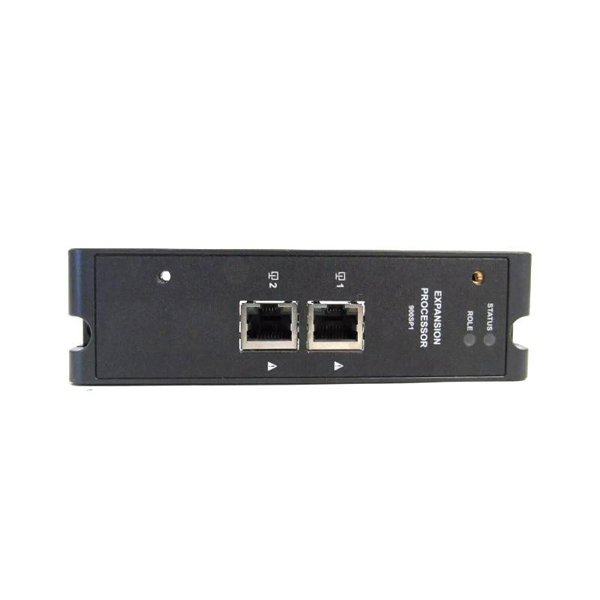

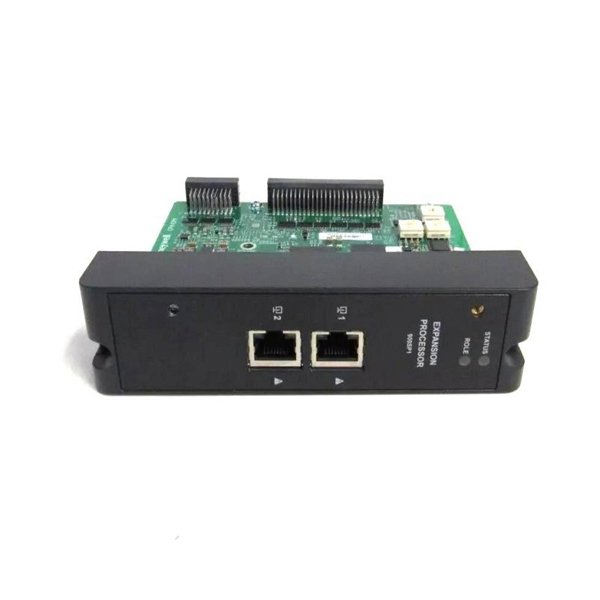

Honeywell 900SP1-0200 ControlEdge HC900 Expansion Processor Module
Manufacturer:Honeywell
Product Number:900SP1-0200
Product Type:Expansion Processor Module
Origin:USA
Dimensions:137 × 38.1 × 151.7 mm
Weight:0.32 kg
Views:55
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
Honeywell 900SP1-0200 is an Expansion Processor Module (EPM) for ControlEdge HC900 PLC systems. It acts as an interface module enabling communication between the main Control Processor Module (CPM) and I/O modules in expansion racks. Designed for reliable, scalable automation systems, it ensures seamless integration across distributed control environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 900SP1-0200 |
| Product Type | Expansion Processor Module |
| Processor | Dual Core ARM® Cortex™-A9, 667 MHz |
| Communication Ports | 2 × Ethernet RJ45 (auto-crossover) |
| Supported Protocol | I/O Communication |
| Network Speed | 10/100BaseTx, auto-detecting |
| Isolation | 1500V RMS, 1 min (60 Hz) |
| Transient Protection | 600W peak pulse, 10×1000μs waveform |
| Diagnostic LEDs | Yes (on each port) |
| Address Configuration | Rotary Address Switch (1–99) |
| Operating Temperature Range | 0°C to 60°C (Standard) |
| Dimensions (H × W × D) | 137 × 38.1 × 151.7 mm |
| Weight | 0.32 kg |
Applications
Used in control systems requiring:
-
Remote I/O expansion for large distributed automation systems
-
Seamless communication between main CPU and distant I/O racks
-
Integration with ControlEdge PLC in SCADA/DCS/HMI environments
-
Flexible rack-based installations for scalable architectures
Product Advantages
Efficient Expansion: Enables cost-effective scaling of I/O capacity
High Performance: Powered by dual-core processor for quick I/O response
Robust Communication: Dual Ethernet ports with industrial-grade isolation
Flexible Topology Support: Works in star, ring, and DLR networks
Easy Setup: Rack address setting via rotary switch
FAQs
Q1: What is the function of the 900SP1-0200 module?
A1: It connects the main control processor to expansion I/O racks, enabling communication in large or distributed systems.
Q2: Does it support redundant configurations?
A2: Yes, it can be used in systems that support redundancy for high availability.
Q3: What network topologies are supported?
A3: Star, Ring, and Device Level Ring (DLR) are supported.
Q4: How many Ethernet ports does it have?
A4: It has two shielded RJ45 Ethernet ports.
Q5: What is the maximum cable length supported?
A5: Up to 100 meters with shielded Ethernet; up to 40 km with fiber optics.
Q6: Is it hot-swappable?
A6: No, power should be removed during module replacement.
Q7: Can it be used in outdoor or extreme environments?
A7: The standard version supports 0°C to 60°C. Use 900SP1-0300 for extended range (-40°C to 70°C).
Q8: What is the default communication protocol?
A8: I/O communication between CPM and I/O modules.
Q9: What diagnostics are available?
A9: LED indicators on each port for status and diagnostics.
Q10: How is the rack address configured?
A10: Through a rotary address switch ranging from 1 to 99.
