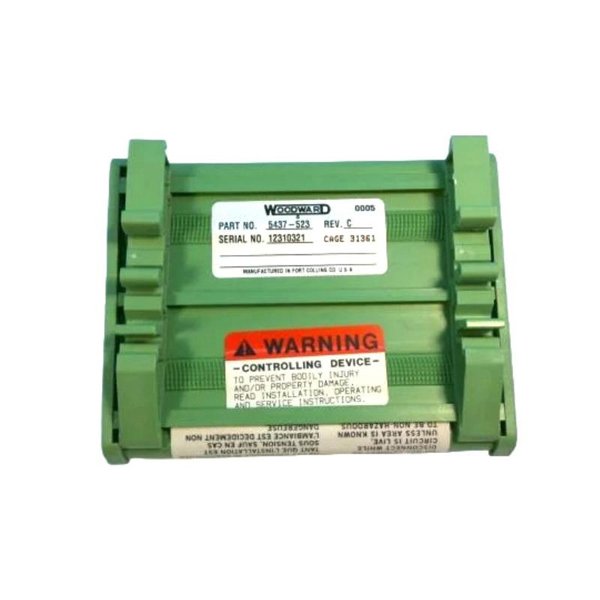

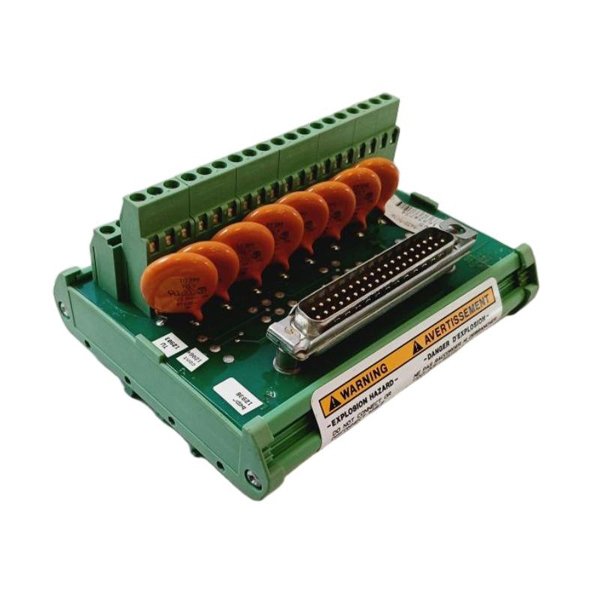

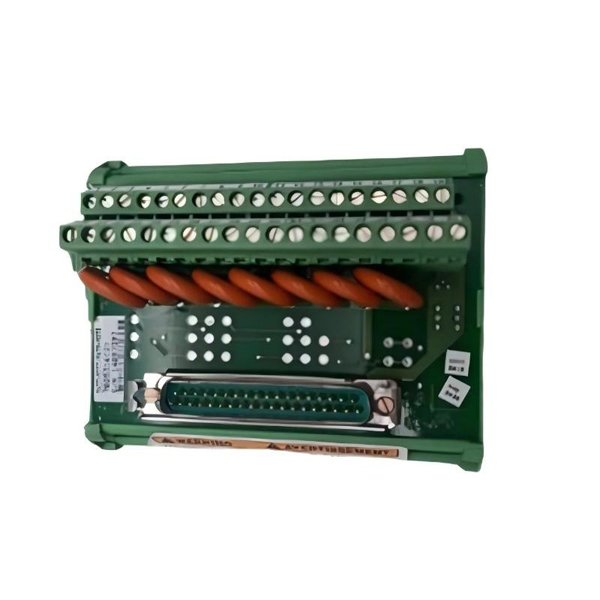

The Woodward 5437-523 Analog Field Terminal Module is an essential I/O interface component designed to streamline analog signal connectivity in industrial control systems. Specifically engineered to work with Woodward control platforms like MicroNet™, this terminal module plays a critical role in securely transmitting analog input and output signals between field devices (e.g., sensors, actuators) and the control system.

With robust electrical isolation, modular construction, and easy wiring access, the 5437-523 module simplifies installation and maintenance, enhancing operational efficiency across power generation, oil & gas, and marine industries. It is designed to meet the stringent demands of high-reliability applications where accurate analog data transfer is paramount.

Technical Specifications

Product Applications

The 5437-523 Analog Field Terminal Module is used extensively across a variety of industrial and mission-critical environments:

• Power Generation Plants

  Interfaces analog sensors (e.g., temperature, pressure, flow) with turbine or engine control systems.

• Oil & Gas Facilities

  Connects analog transmitters and field devices to control units in hazardous environments.

• Marine Automation Systems

  Facilitates analog signal input from shipboard instrumentation to propulsion control units.

• Water and Wastewater Management

  Used for monitoring process variables like chemical levels and pump feedback.

• Industrial Test Benches

  Collects accurate analog data from test subjects for performance evaluation.

• HVAC and Energy Management

  Integrates temperature and humidity sensors with building automation systems.

Product Advantages

• High Signal Accuracy

  Engineered for minimal signal degradation and optimal analog performance.

• Superior Electrical Isolation

  Prevents cross-talk, ground loops, and signal distortion.

• Quick Installation

  Tool-free wiring and clear labeling reduce installation time and errors.

• Compact & Modular

  Slim profile saves space in control cabinets and allows modular expansion.

• Maintenance-Friendly Design

  Field-replaceable and easily serviceable without system downtime.

• Reliable Field Performance

  Built to operate under demanding environmental and mechanical conditions.

Frequently Asked Questions (FAQ)

1. What type of analog signals does the 5437-523 support?

   It supports voltage (±10V) and current (4–20mA) analog signals, depending on the configured input module.

2. Is this module compatible with the MicroNet control system?

   Yes, it is fully compatible and often used with Woodward’s MicroNet and MicroNet Plus platforms.

3. Can this module be mounted on a standard DIN rail?

   Yes, the module supports both DIN rail and panel mounting for flexible installations.

4. Is signal isolation provided on each channel?

   Yes, channel-to-channel and channel-to-ground isolation is implemented for reliable operation.

5. What kind of wiring is used for the connections?

   It uses industrial screw-type terminals, suitable for stranded or solid copper wire.

6. What protection class does this terminal module offer?

   When installed in a standard enclosure, it meets IP20 protection level.

7. Does the module require calibration before use?

   Factory-calibrated; no additional field calibration is typically needed unless system-specific adjustments are required.

8. Can I use this module in outdoor environments?

   Only when housed in a weatherproof enclosure. The module itself is not rated for direct outdoor exposure.

9. How many channels does the 5437-523 support?

   Typically 8 analog channels, but it may vary by specific controller configuration.

10. Is this module hot-swappable?

    No, for safety and reliability, the system should be powered down before replacing the module.
