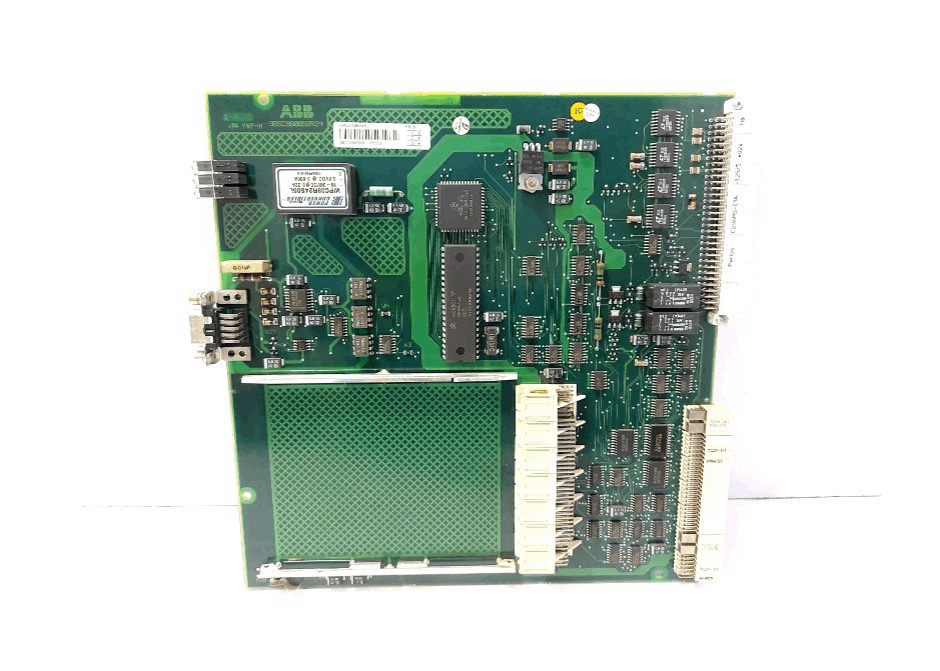

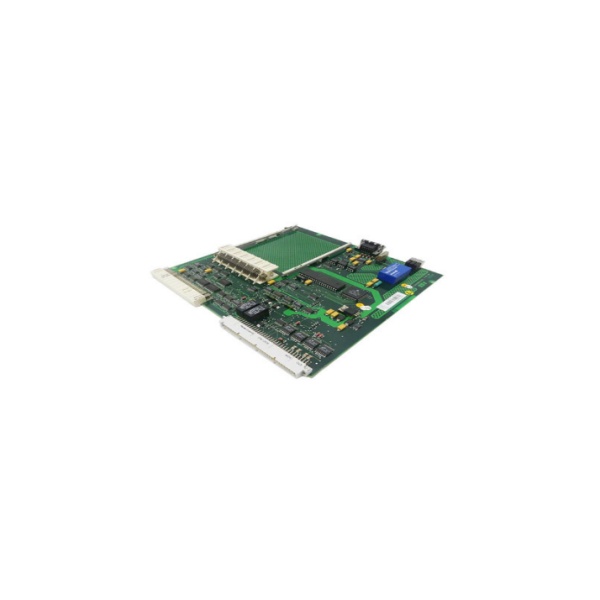

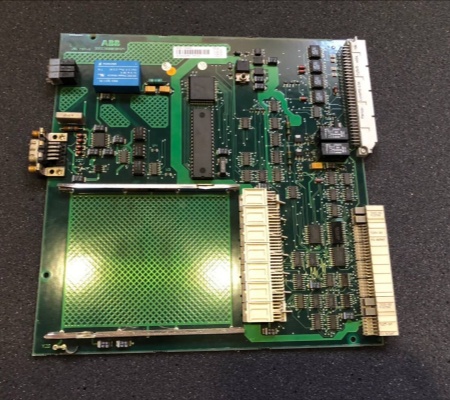

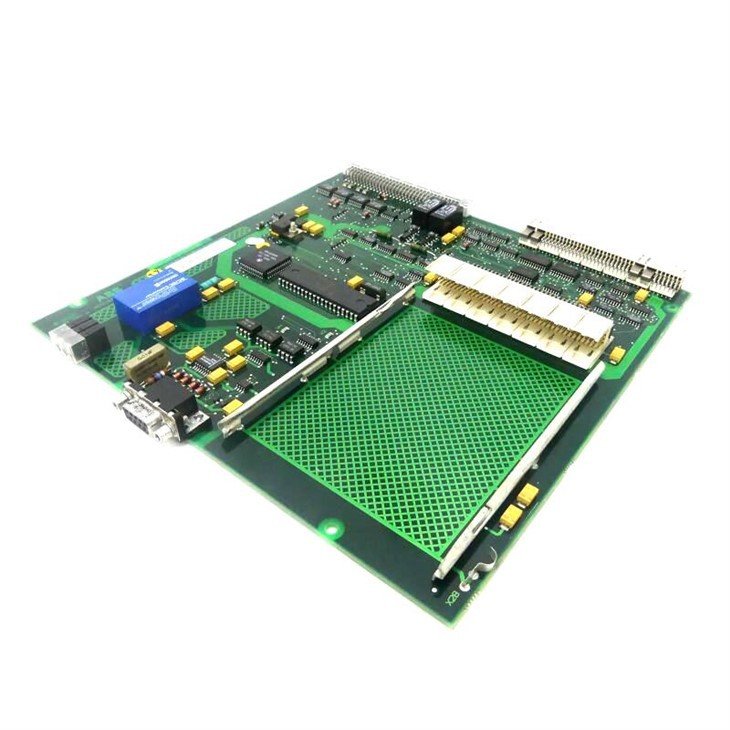

ABB PM153 3BSE003644R1 Hybrid Module
Item Number:PM153 3BSE003644R1
Brand: ABB
Lead Time: In stock
Description:Hybrid Module
Payment: T/T
Product Description
ABB PM153 is a hybrid module in the AC800F Freelance field controller system with analog input and analog output functions, providing solutions for mixed signal applications. It combines 8 or 16 isolated analog input channels (voltage, current, resistance) and 4 or 8 analog output channels (voltage, current), which can convert the analog signals of sensors or transmitters into digital values for AC800F processing and reverse output control signals.
Function & Features
PM153 3BSE003644R1
Analog input function
ABB PM153 3BSE003644R1 supports 8 or 16 isolated analog input channels, which can receive voltage, current or resistance signals. Convert analog signals from sensors or transmitters into digital quantities for processing by the AC800F system.
Analog output function
Analog output function: ABB PM153 3BSE003644R1 provides 4 or 8 analog output channels, supporting voltage or current signal output. Convert digital control signals from the AC800F system into analog signals to drive actuators or equipment.
Specifications
|
Parameter |
Specification |
| Model | PM153 |
| Order Number | 3BSE003644R1 |
|
Operating Temperature |
-20°C to +70°C |
|
Digital Output Channels |
8 |
|
Processor Speed |
200 MHz |
|
Weight |
0.4 kg |
|
Analog Input Channels |
8 |
|
Power Consumption |
15 W |
|
Dimensions (L×W×H) |
150 mm × 125 mm × 30 mm |
|
RAM Capacity |
128 MB |
|
Flash Memory |
1 GB |
|
Operating System |
Real-Time Operating System (RTOS) |
