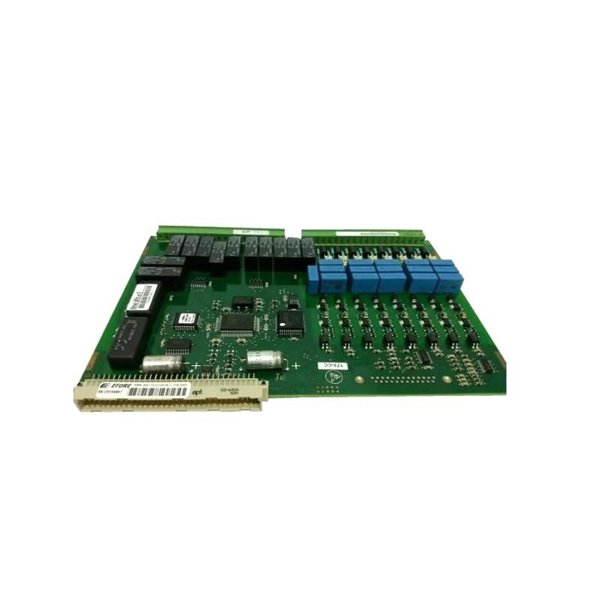

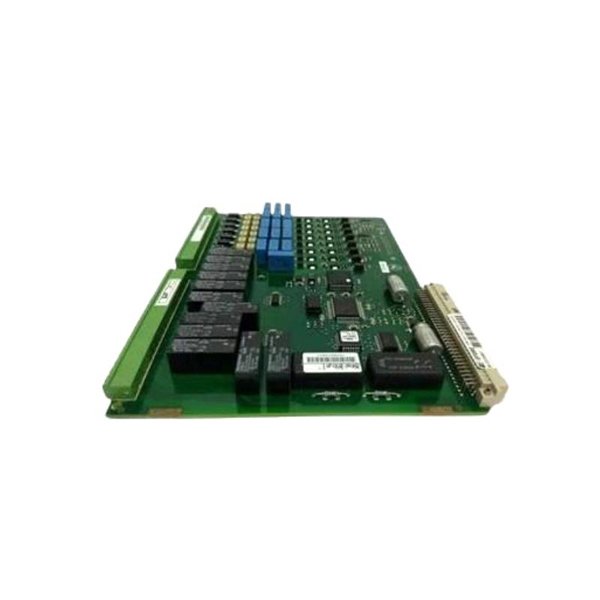

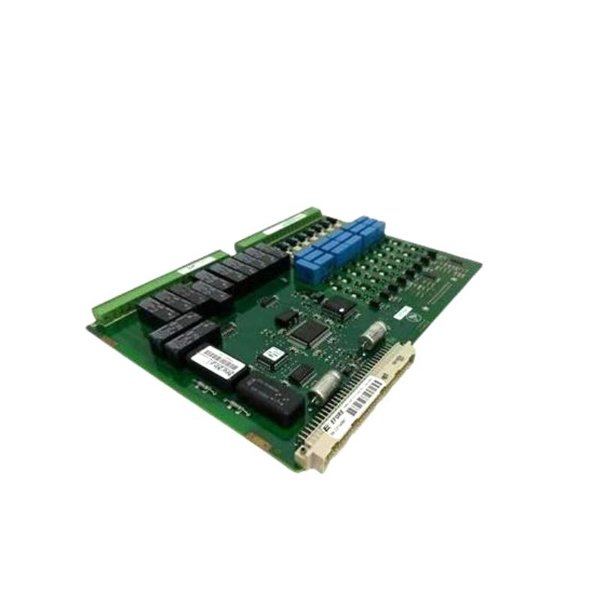

ABB 1MRK000284-ABr03 Binary Input/Output Module

The ABB 1MRK000284-ABr03 is a versatile binary input/output module designed for integration within ABB’s industrial automation systems, particularly the Relion® relay family. This module is engineered to monitor and control binary signals from external devices such as pushbuttons, switches, and sensors, playing a crucial role in protection and control systems across various industrial applications. Its robust design and advanced features ensure reliable performance in demanding environments.

Technical Specifications

Applications

The ABB 1MRK000284-ABr03 module is suitable for a wide range of industrial applications, including:

1. Industrial Control Systems: Monitors and controls binary signals from various field devices, ensuring efficient operation of industrial processes.
2. Building Automation Systems: Integrates with building management systems to monitor and control lighting, HVAC, and security systems.
3. Power Distribution Systems: Ensures the reliability and safety of electrical distribution by monitoring critical binary signals.
4. Machine Safety Systems: Monitors safety interlocks and emergency stop signals to maintain safe operating conditions.

Advantages

1. High Input Density: Offers 24 binary inputs in a compact module, optimizing space utilization in control panels.
2. Optical Isolation: Each input is optically isolated, providing robust protection against electrical noise and transients, enhancing system reliability.
3. Configurable Input Delay: Allows customization of input response times to suit specific application requirements, improving system flexibility.
4. LED Status Indicators: Each input channel features an LED indicator, facilitating easy monitoring and troubleshooting.
5. Wide Operating Voltage Range: Compatible with a broad range of input voltages (24 VDC to 250 VAC), increasing versatility across different applications.
6. Robust Environmental Tolerance: Designed to operate in harsh conditions, with a wide operating temperature range and high humidity tolerance.
7. Compact Design: Its small footprint allows for efficient use of space in control cabinets, making it ideal for installations with limited space.
8. Compliance with International Standards: Adheres to CE, UL, and CSA certifications, ensuring global applicability and adherence to safety standards.

FAQ

1. What is the primary function of the ABB 1MRK000284-ABr03 module?

   • It serves as a binary input/output module designed to monitor and control binary signals from external devices within industrial automation systems.

2. Which ABB systems are compatible with this module?

   • It is compatible with ABB’s Relion® relay family and other industrial automation systems that support binary input modules.

3. What types of signals can this module monitor?

   • It can monitor binary signals from devices such as pushbuttons, switches, and sensors within the specified voltage range.

4. How does optical isolation benefit the module’s performance?

   • Optical isolation protects the module from electrical noise and transients, enhancing signal integrity and system reliability.

5. Is the input delay configurable?

   • Yes, the input delay is configurable from 0 ms to 30 seconds, allowing customization based on application needs.

6. What environmental conditions can the module withstand?

   • It operates effectively within a temperature range of -20°C to +55°C and can be stored between -40°C to +70°C, with a humidity tolerance of 5% to 95% non-condensing.

7. Does the module provide status indicators for each input?

   • Yes, each input channel has an LED indicator for real-time status monitoring.

8. What are the dimensions and weight of the module?

   • The module measures 85 x 35  x 25 mm, with a weight of 0.1 kg.

9. How is the module mounted within a control system?

   • It is designed for DIN rail mounting, facilitating easy integration into standard control panels.

10. Does the module comply with international safety standards?

    • Yes, it holds CE, UL, and CSA certifications, ensuring compliance with international safety and performance standards.
