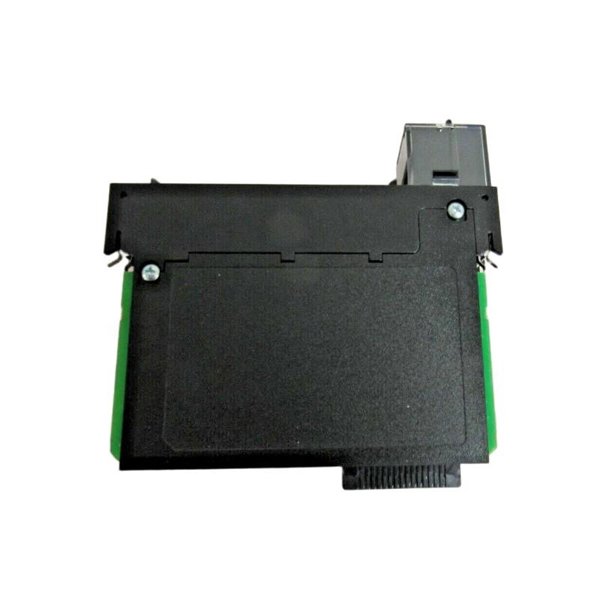

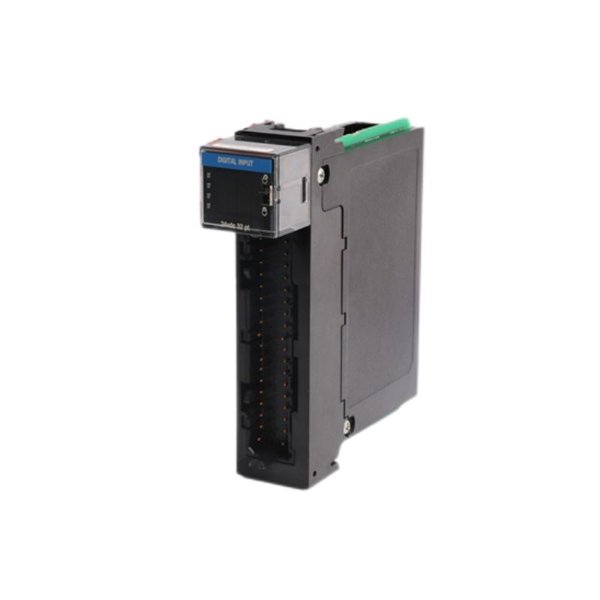

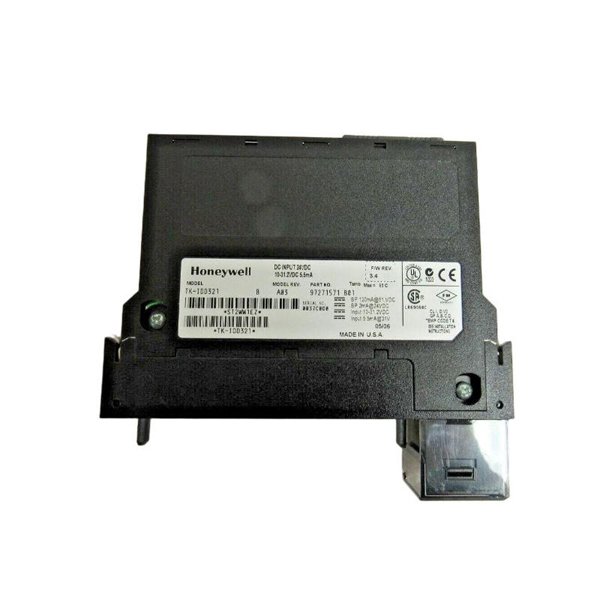

Honeywell TK-IDD321 97271571 B01 32-Point Discrete Input Module
Manufacturer:Honeywell
Product Number:TK-IDD321 97271571 B01
Product Type:32-Point Discrete Input Module
Origin:USA
Dimensions:35 x 142 x 145 mm
Weight:0.24kg
Views:60
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell TK-IDD321 is a high-density 32-point discrete input module designed to interface 24 VDC signals from field devices. It’s engineered for industrial automation systems requiring compact and reliable digital input capability, and is compatible with Honeywell’s Experion PKS and C200/C300 control systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TK-IDD321 |
| Type | Digital Input Module |
| Input Type | 24 VDC, Non-Isolated |
| Number of Input Channels | 32 |
| Input Voltage Range | 18–30 VDC |
| Input Signal Level (High) | ≥15 VDC |
| Input Signal Level (Low) | ≤5 VDC |
| Input Current | 4.2 mA typical @ 24 VDC |
| Response Time | <5 ms |
| Channel-to-Channel Isolation | No (common return) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 35 x 142 x 145 mm |
| Weight | 0.24 kg |
| Mounting | Module rack (standard) |
| Coating | Yes (conformal coated for harsh environments) |
Applications
Factory Automation – Monitoring machine states and limit switches
Process Industries – Interfacing digital field signals like on/off valves
Energy Sector – Used in control systems for substations and utilities
Chemical Plants – Integrating with control logic for digital sensor feedback
Key Advantages
High Density – 32 input channels in a single compact module
System Integration – Seamless with Honeywell C200/C300 controllers
Reliability – Industrial-grade design with protective coating
Compact Footprint – Saves space in I/O cabinets
Fast Response – Suitable for time-critical applications
Frequently Asked Questions (FAQ)
Q1: What type of signals does the TK-IDD321 accept?
A1: It accepts 24 VDC discrete signals.
Q2: How many inputs does the module provide?
A2: It offers 32 discrete input channels.
Q3: Does this module support isolated inputs?
A3: No, the inputs share a common return.
Q4: Can this module operate in high-humidity environments?
A4: Yes, up to 95% non-condensing humidity.
Q5: Is the module coated for harsh environments?
A5: Yes, it comes with a conformal coating.
Q6: What control platforms is it compatible with?
A6: It is used with Honeywell C200/C300 and related systems.
Q7: What is the typical input current per channel?
A7: Approximately 4.2 mA at 24 VDC.
Q8: What is the response time of the module?
A8: Less than 5 milliseconds.
Q9: Can it be used in outdoor installations?
A9: It’s not designed for direct outdoor use; enclosure is required.
Q10: Is configuration software required?
A10: Configuration is done through Honeywell’s control system environment.
