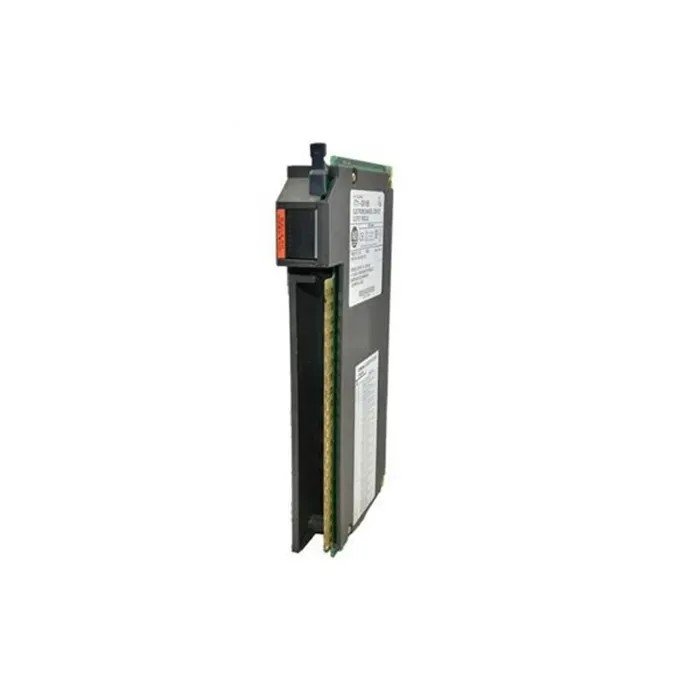

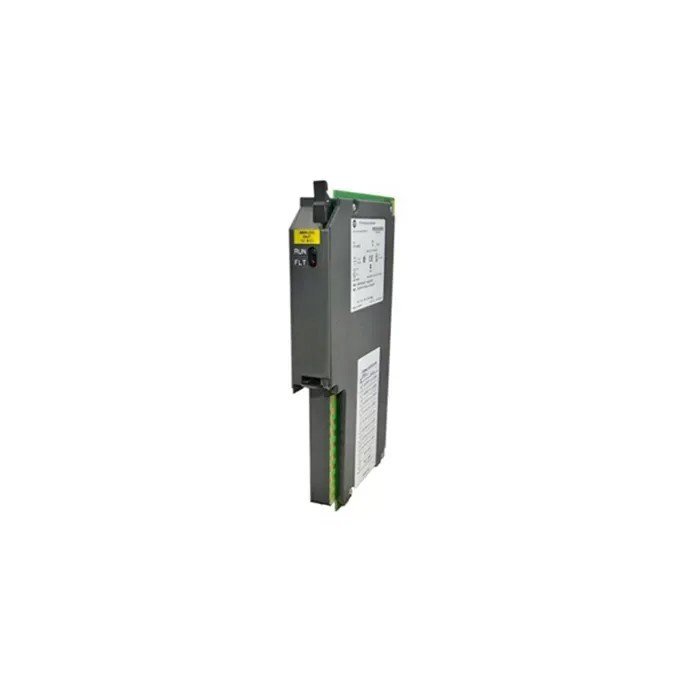

Allen-Bradley 1756-HSC 4-channel High-Speed Counter Module
Brand: Allen Bradley
Model Number: 1756-HSC
Type: 4-channel High-speed Counter Module
Product Origin: United States
Payment: T/T, Western Union, Credit Card
Weight: 0.25 kg (0.55 lbs)
Certificate: CE, UL, CSA
Warranty: 1 year
Product Description
The Allen-Bradley 1756-HSC is a 4-channel high-speed counter module for the ControlLogix programmable logic controller (PLC) platform. It is designed for counting high-speed events, such as encoder pulses, quadrature pulses, and frequency inputs. The module features a maximum counting frequency of 100 MHz and a resolution of 16 bits.
Specifications
- Number of channels: 4
- Counting frequency: 100 MHz
- Resolution: 16 bits
- Input voltage: 24 VDC
- Output voltage: 24 VDC
- Output current: 250 mA per channel
- Power dissipation: 5.6 W
- Isolation voltage: 125 V (continuous), basic insulation type, input group-to-backplane, 30 V (continuous), basic insulation type, input group-to-input group
- Wire category: 2 on signal ports, 1 on power ports
