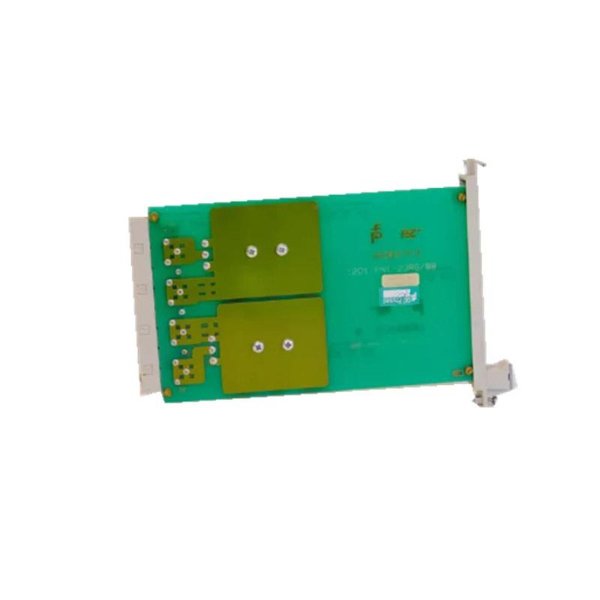

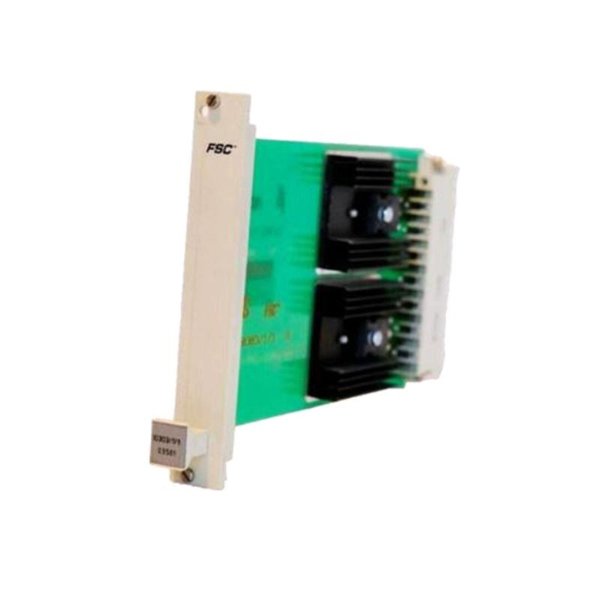

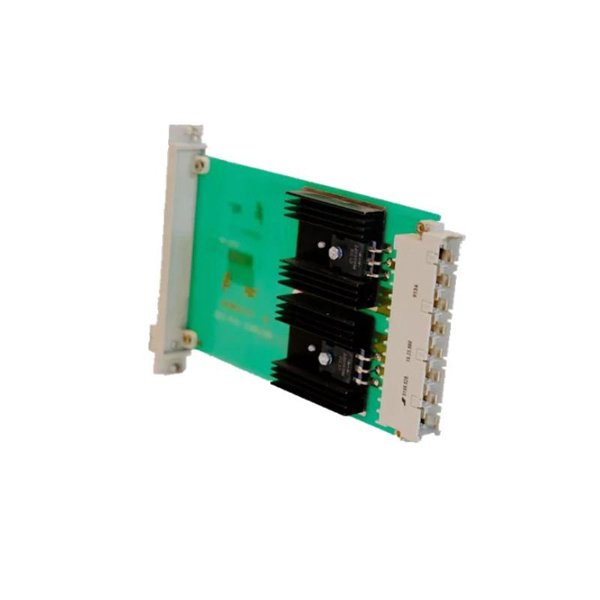

The Honeywell 10307/1/1 Vertical Bus Terminator is a specialized termination module designed to ensure reliable communication and signal integrity within Honeywell’s industrial control systems. As part of a robust field I/O or PLC system architecture, this terminator is used at the end of a vertical bus backplane to eliminate signal reflection, data corruption, or noise interference. It is typically deployed in redundant or high-availability systems to maintain data integrity, especially in environments where real-time control and deterministic communication are essential.

Manufactured with precision and tested to meet strict industrial-grade reliability standards, the 10307/1/1 model is part of Honeywell’s legacy and current distributed control system (DCS) offerings and integrates seamlessly with Honeywell’s TDC 3000 and Experion platforms.

Product Specifications

Product Applications

• Distributed Control Systems (DCS): Ensures proper bus termination in Honeywell DCS architectures.

• Process Automation Systems: Maintains data communication integrity in oil & gas, petrochemical, and power generation plants.

• Industrial Control Panels: Used in control cabinets where vertical bus backplanes are installed.

• Redundant Communication Setups: Supports high-availability applications where termination quality affects uptime.

• Retrofit Projects: Ideal for replacing worn-out or aging terminators in legacy systems.

• OEM System Integration: Used by integrators and panel builders for Honeywell-certified systems.

Product Advantages

• Improves Communication Integrity: Prevents signal reflections and ensures reliable data transfer across the vertical bus.

• Seamless Compatibility: Fully compatible with Honeywell TDC 3000 and Experion systems.

• Compact and Lightweight: Easy to install even in space-constrained enclosures.

• Industrial Durability: Built to withstand harsh environmental conditions and mechanical stress.

• Passive, Maintenance-Free Operation: Requires no external power; built-in resistor networks operate without intervention.

• Reliable Signal Termination: Essential for long bus runs to ensure clean signal cut-off at endpoints.

• Easy Replacement: Plug-and-play design allows quick service or replacement with minimal downtime.

• Backed by Honeywell Quality Assurance: Rigorously tested for quality and performance in critical applications.

Frequently Asked Questions (FAQ)

1. What is the function of the Honeywell 10307/1/1 Bus Terminator?

   It ensures signal integrity by terminating the vertical bus to prevent signal reflection and noise.

2. Which systems is this terminator compatible with?

   It is compatible with Honeywell’s TDC 3000 and Experion PKS control systems.

3. Is the terminator active or passive?

   It is a passive terminator with no active electronic components, ensuring low maintenance.

4. Can I use this terminator in third-party systems?

   It is specifically engineered for Honeywell systems; use in third-party systems is not recommended.

5. How is it mounted or installed?

   It is inserted directly into a designated slot on the vertical bus backplane.

6. Does the terminator require power?

   No, it operates passively and does not require a power supply.

7. What are the environmental limits for this device?

   It can operate between 0°C and 60°C and be stored between -40°C and +85°C.

8. What certifications or standards does it meet?

   It is compliant with industrial standards such as IEC 60068 for environmental stress.

9. How do I know if the terminator is failing?

   Symptoms of failure may include communication errors or bus signal degradation. Physical inspection or system diagnostics may be required.

10. Is this terminator replaceable in the field?

    Yes, it is hot-swappable and designed for quick field replacement with minimal disruption.
