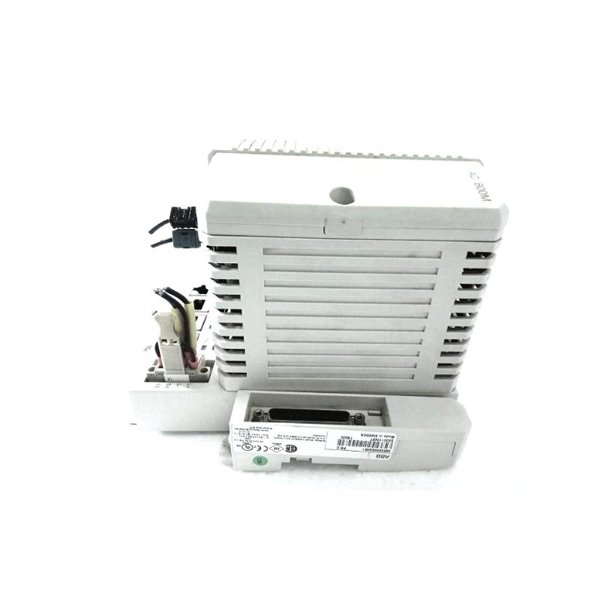

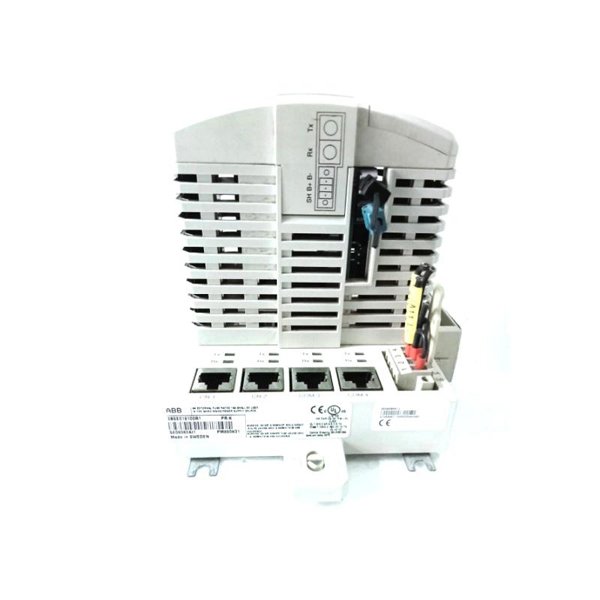

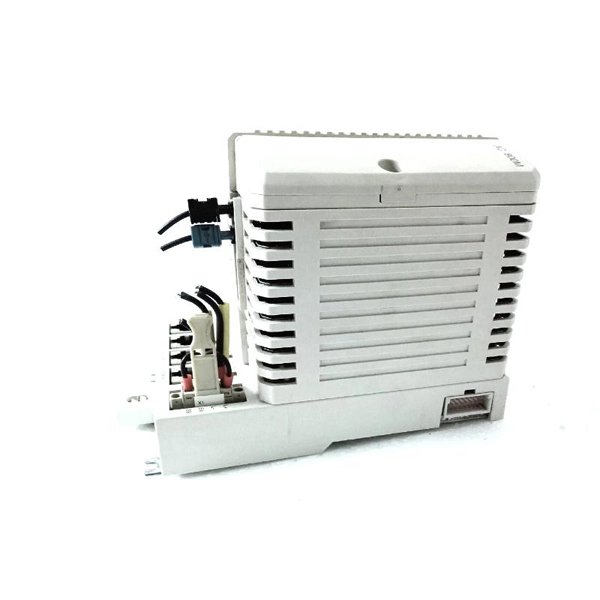

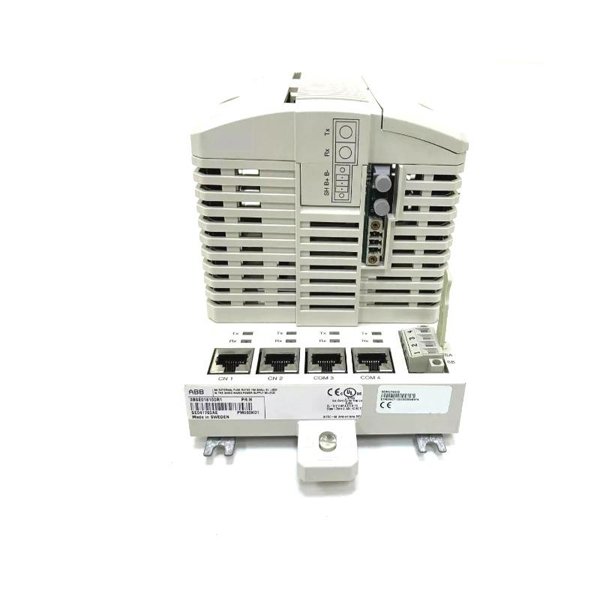

ABB PM860 3BSE018110R1 AC 800M Processor Unit
Manufacturer:ABB
Product Number:PM860 3BSE018110R1
Product Type:AC 800M Processor Unit
Origin:Sweden (SE)
Dimensions:119 x 186 x 135 mm
Weight:1.1 kg
Views:52
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PM860 (3BSE018110R1) is a modular processor unit designed for the AC 800M automation platform. It provides reliable processing capabilities for control applications in distributed and standalone systems. The unit includes two Ethernet ports, serial interfaces, a compact flash slot, and supports redundancy. It connects via the TP830 baseplate and is suitable for both standard and safety-related applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PM860 |
| Part Number | 3BSE018110R1 |
| System Memory | 64 MB RAM |
| Flash Memory | 16 MB Flash |
| Compact Flash Interface | Yes |
| Ethernet Ports | 2 (10/100 Mbps, RJ-45) |
| Serial Ports | 2 × RS-232C (COM3, COM4) |
| CEX-Bus Support | Yes |
| ModuleBus Support | Electrical and Optical ModuleBus |
| Power Supply | 24 VDC |
| Redundancy Support | Yes (via RCU Link) |
| Mounting Type | DIN-rail |
| Dimensions (W x H x D) | 119 × 186 × 135 mm |
| Weight | 1.1 kg |
Applications
-
Oil & Gas automation
-
Power generation control
-
Chemical and pharmaceutical industries
-
Redundant safety systems (SIL2/SIL3 with SM modules)
Advantages
Modular Design: Supports step-by-step system expansion
Redundancy Capable: Ensures continuous operation without interruptions
Multi-Protocol Support: Integration via CEX-Bus with fieldbuses like PROFIBUS, Modbus TCP, FF HSE
Compact Flash Interface: For firmware and application storage
Low Power Consumption: Minimal heat generation, suitable for sealed enclosures
Diagnostic LEDs: Quick troubleshooting and visual status indication
FAQ
Q1: Does the PM860 support redundancy?
A1: Yes, it can operate in a redundant configuration with another PM860 using the RCU Link.
Q2: How is the PM860 mounted?
A2: It mounts on a TP830 baseplate using a DIN-rail.
Q3: What type of communication ports are available?
A3: Two Ethernet ports and two RS-232C serial ports.
Q4: Is compact flash supported?
A4: Yes, a Compact Flash slot is provided for application storage.
Q5: What kind of I/O can be connected?
A5: It supports S800 I/O via Electrical or Optical ModuleBus and through CEX-connected modules.
Q6: Can PM860 be used in safety systems?
A6: Yes, when combined with certified modules like SM810/811, it supports SIL2/SIL3 safety applications.
Q7: How is software loaded to the PM860?
A7: Firmware and control applications are loaded using Control Builder M.
Q8: What is the power requirement?
A8: The unit requires a 24 VDC power supply.
Q9: Can I replace PM860 online?
A9: Yes, it supports hot-swap in redundant configurations.
Q10: What is the memory size of the PM860?
A10: 64 MB RAM and 16 MB Flash memory.
