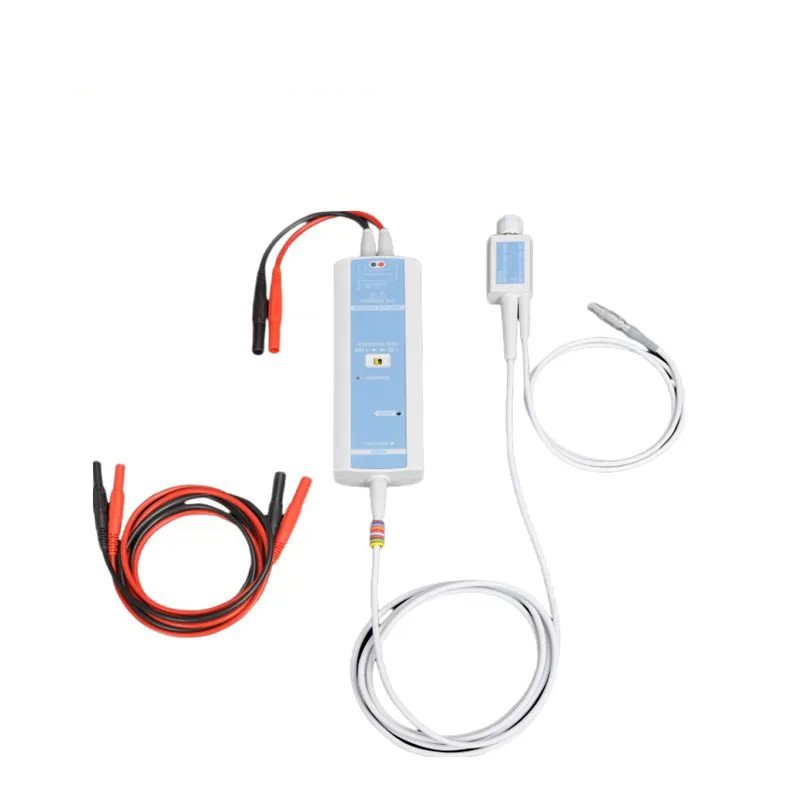

Yokogawa 701978 High Voltage Differential Probe
Manufacturer: Yokogawa
Product Number: 701978
Category: High Voltage Differential Probe
Function: High voltage measurement with differential input
Application: Power system testing, high voltage measurement, oscilloscope probing
Product Description
The YOKOGAWA 701978 is a high voltage differential probe designed for floating signal measurement with oscilloscopes in power electronics and mechatronics fields.
Key Features
- Maximum Input Voltage: ±1500 V (DC + AC peak)
- Bandwidth: DC to 150 MHz (-3dB)
- Attenuation Ratio: 500:1 / 50:1
- Input Resistance: 4 MΩ
- Input Capacitance: 5 pF
- Common Mode Rejection Ratio (CMRR): >120 dB (DC to 100 MHz), >80 dB (100 MHz to 150 MHz)
- Probe Tip: Pincher tip (red, black)
- Probe Length: 2430 mm
Applications
- Measure inverter output voltages
- Measure motor drive voltages
- Measure power supply voltages
- Measure other floating signals
Benefits
- High Input Voltage Capability: Measures high voltage signals effectively.
- Wide Bandwidth: Measures high-frequency signals accurately.
- High CMRR: Rejects common mode noise efficiently.
- Small and Lightweight: Ensures easy handling with a compact probe body.
