Manufacturer:Yokogawa
Product Number:S9345FA
Product Type:Bus Connector Unit
Origin:Japan
Dimensions:50 x 32.8 × 107.5 mm
Weight:0.2 kg
Views:17
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

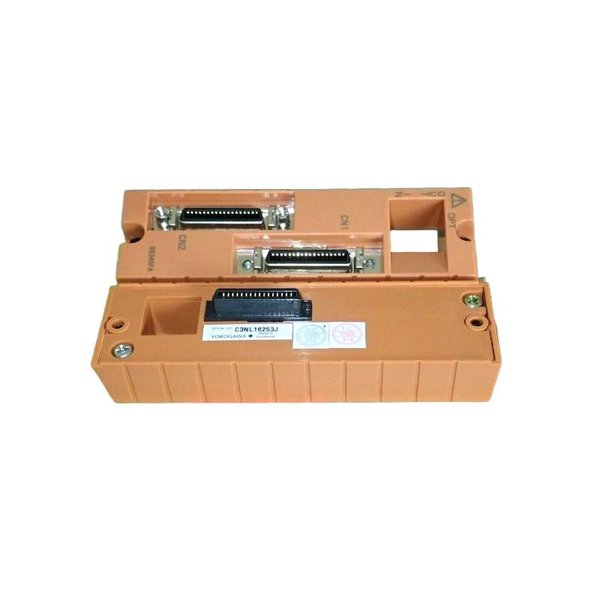

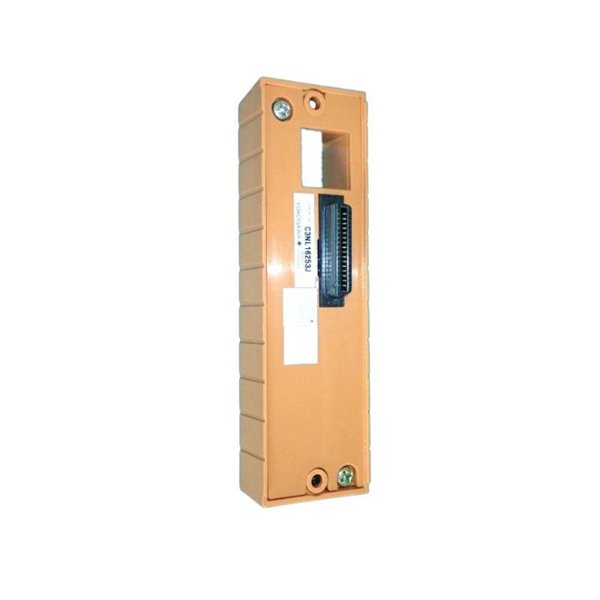

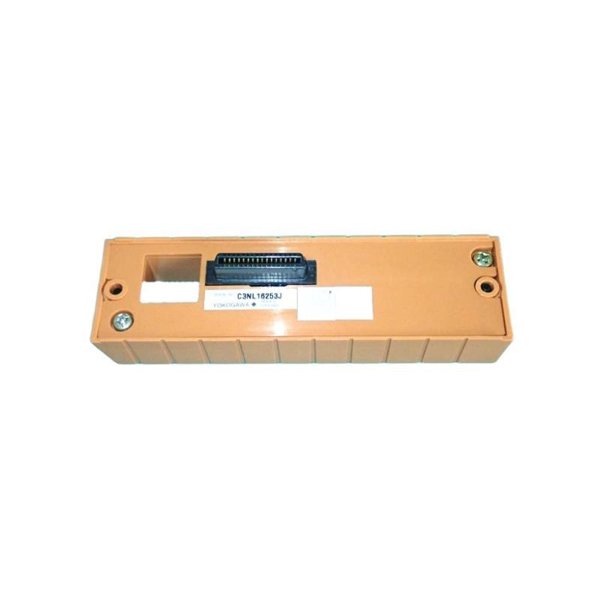

The Yokogawa S9345FA Bus Connector Unit is a critical communication interface module designed for Yokogawa’s distributed control systems (DCS). This module enables reliable data transmission between I/O modules and the central processing unit (CPU) over ESB (Extended SuperBus) or N-ESB (New Extended SuperBus) networks. Its robust design ensures stable and continuous communication, which is essential for maintaining the integrity and efficiency of industrial automation processes.
| Parameter | Specification |
|---|---|
| Model | S9345FA |
| Type | Bus Connector Unit |
| Supported Bus | ESB / N-ESB |
| Channels | 2 independent bus channels |
| Connector Type | Multi-pin connector |
| Isolation | Opto-isolated between bus and module |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5 – 95% RH, non-condensing |
| Mounting | Rack / Terminal board |
| Dimensions | 50 × 32.8 × 107.5 mm |
| Weight | 0.2 kg |
The S9345FA module is widely used in industrial applications, including:
Redundant System Configurations: Supports dual-channel communication to enhance system reliability.
Distributed Control Systems (DCS): Integrates seamlessly with Yokogawa DCS for efficient process control.
Critical Data Transmission: Ensures uninterrupted data flow between I/O modules and CPU.
Industrial Automation: Used in industries such as oil & gas, chemical processing, and power generation.
Dual-Channel Redundancy: Provides two independent bus channels to ensure continuous operation.
Opto-Isolation: Offers electrical isolation between the bus and module, protecting against surges and noise.
Compact Design: Space-saving form factor suitable for various rack configurations.
High Compatibility: Fully compatible with other Yokogawa DCS components.
Enhanced Reliability: Built to withstand harsh industrial environments for long-term operation.
Q: How many bus channels does the S9345FA support?
A: It supports two independent ESB/N-ESB bus channels.
Q: What type of connector is used in the S9345FA?
A: The module uses a multi-pin connector compatible with Yokogawa systems.
Q: Is the S9345FA electrically isolated?
A: Yes, it features opto-isolation between the bus and module electronics.
Q: Can the S9345FA be used in redundant system configurations?
A: Absolutely, it supports dual-channel communication for redundancy.
Q: What is the operating temperature range?
A: –20°C to +60°C.
Q: What is the storage temperature range?
A: –40°C to +85°C.
Q: What is the humidity tolerance of the S9345FA?
A: 5 – 95% relative humidity, non-condensing.
Q: How is the S9345FA mounted?
A: It can be mounted on a rack or terminal board.
Q: Does the S9345FA provide diagnostic functions?
A: Yes, basic bus status and connectivity diagnostics are supported.
Q: Can multiple S9345FA modules be connected in series?
A: Yes, following Yokogawa bus topology guidelines.
