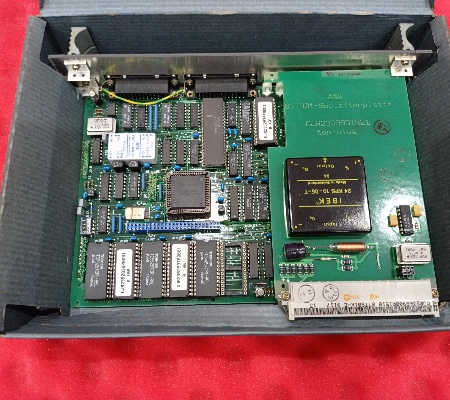

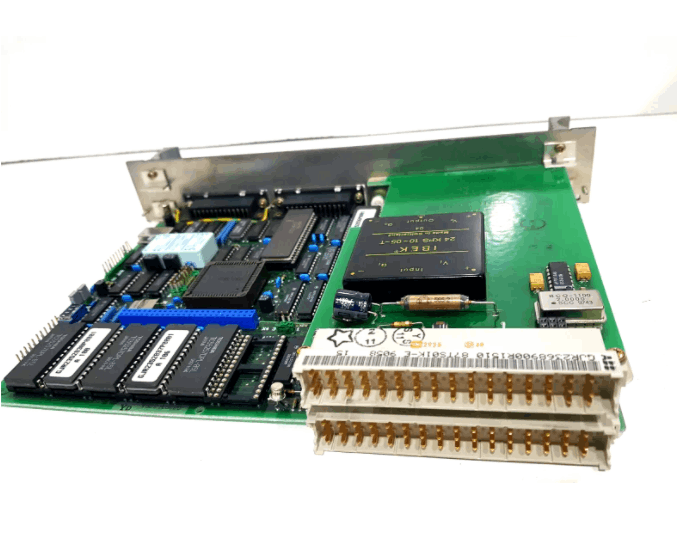

ABB 87TS01K-E GJR2368900R1313 Coupling Module
Item Number:87TS01K-E GJR2368900R1313
Brand: ABB
Lead Time: In stock
Description:Coupling Module
Payment: T/T
Product Description
ABB 87TS01K-E GJR2368900R1313 is a Coupling Module that can be used in any station belonging to the PROCONTROL bus system with a redundant 24 V module power supply (starting from 89MS01/R0200 or 89MS02/R0100). It is equipped with a standard interface for the PROCONTROL station bus.

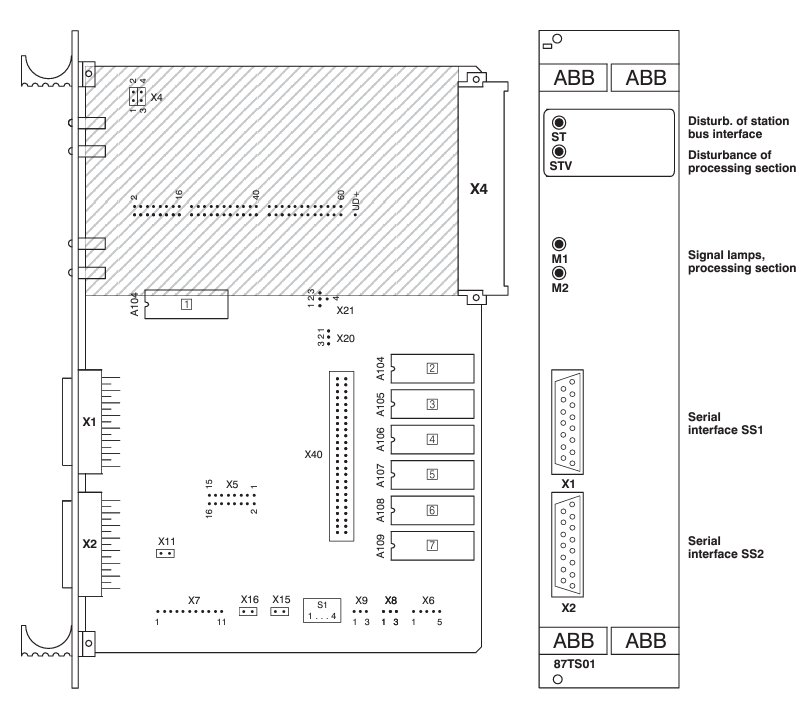

ABB 87TS01K-E module basically consists of the following parts:
-Station bus interface
-Processing part
-Serial interface in accordance with RS 232c or RS 422
Function & Features
- The 87TS01K-E module requires 2 partitions for installation space. It can be plugged into a subrack slot for the station bus with address wiring 1 to 58.
- The 87TS01K-E module participates in data communication within the PROCONTROL system using standard interfaces.
- The telegrams received from the station bus are checked for error transmission.
- The 87TS01K-E uses a serial RS 232c interface, the module is able to receive instructions and data from a computer according to a defined protocol, as well as transmit instructions and data to a computer.
Specifications of87TS01K-E
|
Parameter |
Details |
|
Power supply |
|
|
Operating voltage |
UD+= +24 V |
|
Current consumption, typical |
IDtyp = 340 mA |
|
Power dissipation |
Pvtyp = 8.2 W |
|
Reference potential, process side |
Z = 0V |
|
Reference potential, station bus |
ZD = 0V |
|
Module interfaces |
|
|
SS - Standard interface for station bus |
Connector X3 |
|
SS1 - Serial interface |
According to RS 232c or RS 422, Connector X1 |
|
SS2 - Serial interface |
According to RS 232c or RS 422, Connector X2 |
|
Serial interface acc. to RS 232c |
|
|
Application |
Interfacing a computer |
|
Transmission |
Serial according to RS 232c |
|
Transmission rate |
300 - 19200 baud |
|
Transmission distance, max. |
20 m |
|
Input and output values of the serial interface acc. to RS 232c |
|
|
Input voltage, max. |
+/- 25V |
|
Output voltage, max. |
+/- 12V |
|
Output current |
10 mA |
|
Short - circuit current, max. |
150 mA |
|
Admissible temperature ranges |
|
|
Operating temperature |
0..70℃ |
|
Storage temperature |
-40.. +85°C |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Coupling Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
