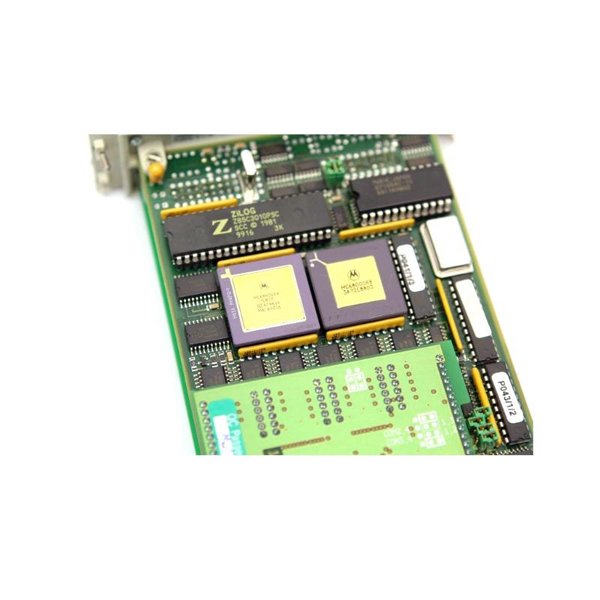

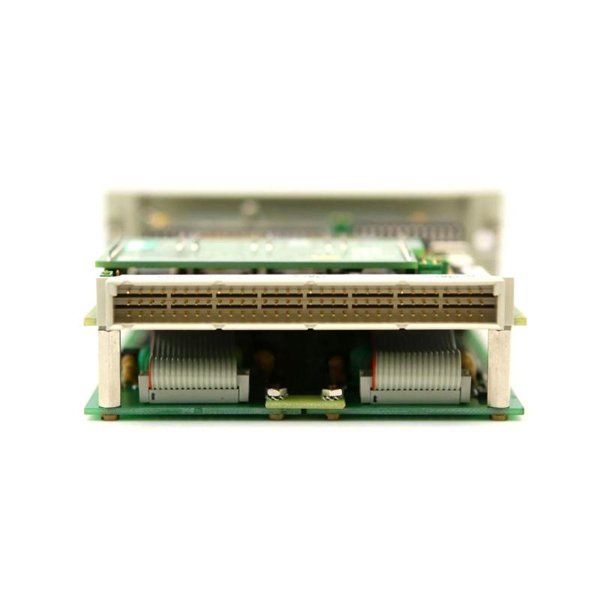

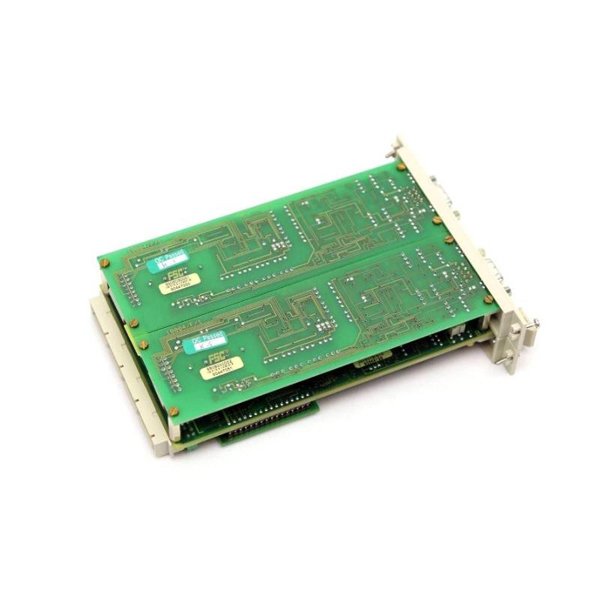

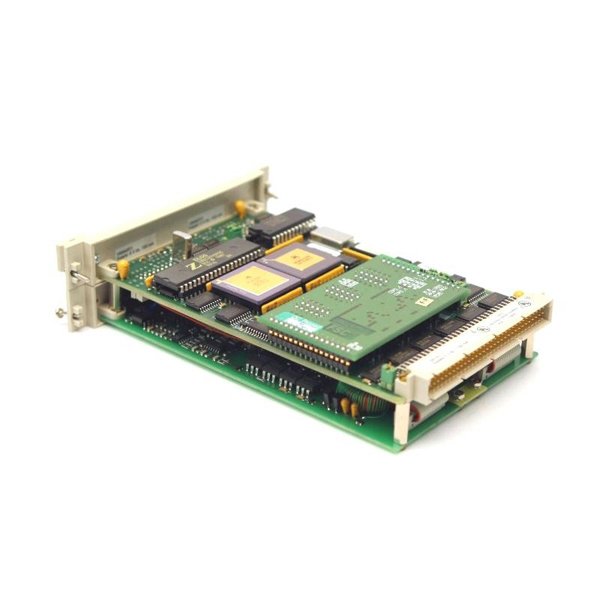

Honeywell 10014/F/F FSC Communication Module

The Honeywell 10014/F/F is a communication module specifically designed for use with the Honeywell FSC (Fail Safe Controller) system. This module ensures reliable, high-speed data transfer within safety-critical environments. It facilitates communications between FSC modules and external systems, supporting deterministic and redundant data exchange for safety and control applications.

Technical Specifications

Applications

• Safety Instrumented Systems (SIS) in refineries and chemical plants

• Emergency shutdown systems (ESD)

• Burner management systems (BMS)

• High-integrity pressure protection systems (HIPPS)

• Critical infrastructure communication between FSC nodes

Advantages

• Supports redundant communication for high system availability

• SIL 3 certified for safety-critical use

• Fast and deterministic data exchange

• Reliable peer-to-peer networking with built-in fault tolerance

• Seamless integration into Honeywell FSC architectures

• Compact and lightweight form factor ideal for modular systems

FAQ (Frequently Asked Questions)

Q1: What systems is the 10014/F/F module compatible with?

A1: It is designed for use with Honeywell FSC systems in safety-critical applications.

Q2: Does the module support redundant communication?

A2: Yes, it supports redundant Ethernet and serial interfaces for high availability.

Q3: What is the typical use of the module in industrial applications?

A3: It is mainly used for communication in Safety Instrumented Systems (SIS), such as ESD and BMS.

Q4: Can the 10014/F/F be used in high-temperature environments?

A4: It operates safely within a temperature range of 0°C to 60°C.

Q5: Is this module certified for safety compliance?

A5: Yes, it is SIL 3 certified according to IEC 61508 standards.

Q6: How is the module cooled?

A6: It uses natural convection for passive cooling.

Q7: What type of communication protocol does it use?

A7: It uses Honeywell’s proprietary peer-to-peer protocol for FSC systems.

Q8: How is the module mounted?

A8: It is rack-mounted, suitable for modular control panels.

Q9: What are its physical dimensions and weight?

A9: The module measures 40 x 185 x 128 mm and weighs 0.36 kg.

Q10: Can it be used for remote communication between FSC nodes?

A10: Yes, it facilitates remote, deterministic communication between distributed FSC modules.
