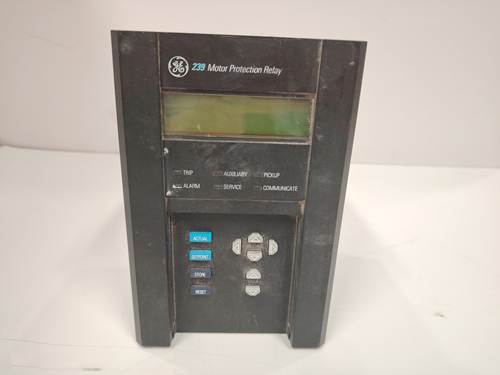

GE 239 motor protection relay Detailed Information

The GE 239 motor protection relay is a motor protection device provided by GE, mainly used to protect motors from electrical faults such as overload, short circuit, phase loss, and grounding faults. This relay is widely used in industrial power systems to ensure the safety and reliability of motors during operation.

Main features

Multi functional protection: supports multiple motor protection functions, including overload protection, undervoltage protection, overvoltage protection, phase loss protection, ground fault protection, etc.

Digital control: Using digital control technology, it can accurately detect the operating status of the motor and quickly respond to faults, preventing motor damage due to faults.

Easy to install and debug: The design is simple, the user interface is user-friendly, and it is easy to install, configure, and maintain.

Fault diagnosis and alarm: It has a fault alarm function. When a fault occurs, the relay will send an alarm signal to help the staff take timely measures.

Flexible setting function: Users can adjust protection parameters according to actual needs, adapting to different motor types and application environments.

Technical specifications

Voltage range: Suitable for multiple voltage levels, generally supporting power supply voltages from 110V to 600V.

Protection function:

overload protection

Undervoltage and Overvoltage Protection

Lack of phase protection

Ground fault protection

Short circuit protection

Installation method: Usually panel installation or rail installation, convenient for installation inside the control cabinet.

Output method: The relay outputs a signal through a switch, which is used to trigger an alarm or stop protection.

Working temperature: The typical working temperature range is -10 ° C to 60 ° C, suitable for industrial environments.
