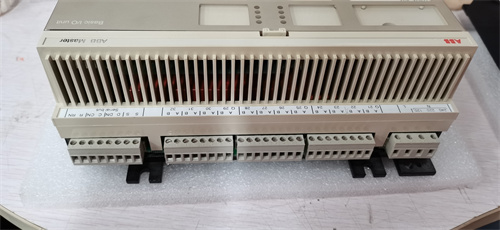

ABB DSDX452 Product Overview

ABB DSDX452 is a basic input/output(I/O)unit designed for industrial control and automation applications.Its compact design,DIN rail mounting method and high cost-effectiveness make it the first choice for engineers,technicians and system integrators.

Main Features

Remote input and output:The device can remotely receive and send signals to achieve data exchange and control between devices.

Modular design:Easy to install,maintain and upgrade,users can choose the appropriate module for configuration according to actual needs.

High reliability:The use of high-quality components and advanced production processes ensures that the equipment can still operate stably in harsh environments.

Strong scalability:Supports a variety of expansion modules and interfaces to meet the needs of industrial automation of different scales and complexities.

Intelligent management:Integrates intelligent control algorithms and monitoring functions to achieve automatic management and fault diagnosis of equipment.

Technical specifications

Input voltage range:Usually 12~48VDC,but the specific range may vary depending on the product model or application scenario.

Output voltage/current:The output voltage can reach 5VDC and the output current can reach 10A.The specific values​​are subject to the product manual.

Efficiency:greater than 90%,indicating that the device has high efficiency in the energy conversion process.

Dimensions and weight:The dimensions are approximately 170 mm×105 mm×32 mm(or vary depending on the information provided by the supplier),and the weight is approximately 120 grams(or heavier),which is easy to install and carry.

Working environment:The operating temperature range is generally-20°C to+50°C(or higher),and the storage temperature range may be larger to adapt to different working environments.

Protection level:Some suppliers may provide products with high protection levels such as IP67 to ensure that the equipment can operate normally in harsh environments.

Application areas

Machine control system:used to monitor machine operation,such as start/stop,speed control,and safety interlock.

Process control system:interface with sensors and actuators in industrial processes,such as temperature control,pressure control,and flow control.

Building automation system:used to control lighting,HVAC,and other building systems.

Test and measurement system:obtains data from sensors and provides control signals for test equipment.

Data Acquisition System:Collects data from various sources for monitoring and analysis.
