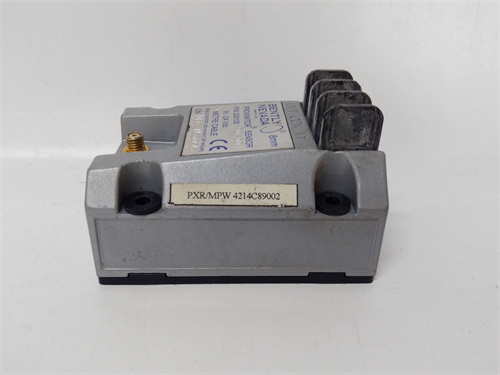

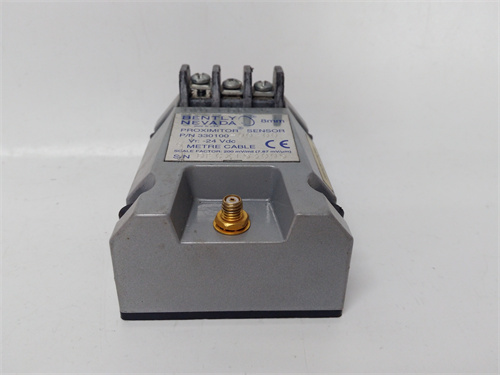

Bently 330100-90-00 Product Details

Bently 330100-90-00 is a high-performance device with a wide range of applications in the field of industrial automation.According to publicly released information,this product is usually used in conjunction with eddy current displacement sensors to measure and monitor parameters such as displacement and vibration of rotating equipment.

Main functions and features

Measurement principle:The proximitor sensor generates a high-frequency magnetic field through a high-frequency current.The magnetic field interacts with the metal surface on the rotating equipment to generate eddy currents,thereby changing the inductive reactance of the original coil.This change in inductive reactance is related to the change in the gap on the metal surface at the top of the probe,so it can be used to measure parameters such as displacement and vibration.

Fault tolerance:It has good fault tolerance.Any wiring error at the power supply end,common end(signal ground),and output end will not damage the proximitor.At the same time,it provides power supply error protection and output short circuit protection.

High-frequency cable installation:The cable between the preamplifier and the probe is a high-frequency cable,and the total length is usually 9m or 5m(determined by the user when ordering).The cable length should not be changed at will to ensure the accuracy of the measurement.The cable position is required to be fixed,and a metal hose can also be added to prevent damage.

Temperature range:The sensor can maintain stable performance within a specific temperature range.For example,when the probe temperature range is-35°C to+120°C,and the preamplifier and extension cable temperature range is 0°C to+45°C,the output signal of the sensor remains within a certain error range.

Technical specifications

Model:330100-90-00

Brand:Bently(also known as Bently Nevada or Bently Nevada)

Power requirements:Depending on the specific application and requirements,the power specifications may vary.

Output signal:Provides analog or digital output signals related to the measured parameters.

Other specifications(may vary depending on different applications or information provided by merchants)

Size:such as 5*10*13cm(provided by a merchant)or 120mm x 60mm x 80mm(controller size provided by another merchant)

Weight:such as 0.25kg(weight of the preamplifier provided by a merchant)or 0.5kg,1kg,11kg(weights may vary for different merchants or product types)

Input voltage:such as 24VDC or 125VDC(for controller)

Output voltage:such as 24VDC(for controller)

Maximum output current:such as 10A(for controller)

Operating temperature range:-40°C to 70°C(for controller),etc.

Application fields

Bently 330100-90-00 is widely used in the monitoring of rotating equipment in the chemical,petroleum,transportation,printing and packaging,textiles and leather,as well as ports,heating,gas,water supply,sewage treatment,metallurgy and other industries,such as motors,pumps,fans,etc.By real-time monitoring of equipment parameters such as displacement and vibration,equipment failures can be predicted and prevented,and equipment reliability and operating efficiency can be improved.
