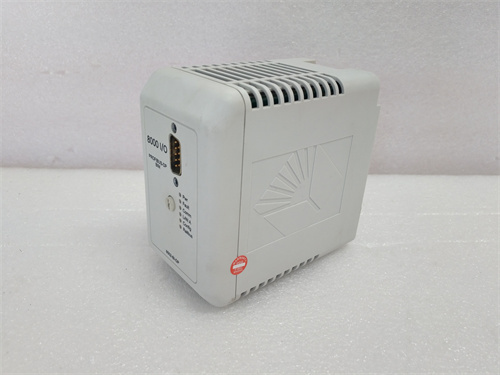

MTL 8502-BI-DP Detailed Information

MTL 8502-BI-DP Bus Interface Module(BIM)is a high-speed data transmission module,commonly used in industrial automation systems,providing a communication link between 8000 series I/O modules and Profibus-DP hosts.It can isolate,convert and transmit digital signals on site to ensure the accuracy and reliability of the signal.

Main Features

High-speed data transmission

MTL 8502-BI-DP module supports high-speed data acquisition and transmission,and the LAN operation speed can reach 6Mbaud,allowing the host to monitor and control the conditions in the fast response control process in real time.

Powerful system functions

The module has powerful system functions,can process various input signals,and provide reliable communication links.It supports Profibus Extended Diagnostics for reading and diagnosing status information.

Digital signal isolation and conversion

MTL 8502-BI-DP module can isolate field digital signals to prevent signal noise and interference from affecting the accuracy and reliability of the system.At the same time,it also provides high-precision signal conversion function to ensure the stability and accuracy of signal transmission.

Multi-channel design

The module usually has multiple digital input channels,which can isolate and convert multiple digital signals at the same time to meet the needs of complex industrial control systems.

Programmable function

MTL 8502-BI-DP module supports parameter configuration and programming functions.Users can flexibly configure and program the module according to actual needs to adapt to different signal types and application requirements.

Safety certification and reliability

The module complies with relevant safety standards and certification requirements to ensure safety and reliability in industrial environments.At the same time,it adopts reliable hardware and circuit design,adapts to harsh industrial environments,and provides long-term stable operation.

Application field

MTL 8502-BI-DP module is widely used in various industrial automation and process control fields,such as manufacturing,energy,transportation,water treatment,etc.It is particularly suitable for control systems that require high precision,high reliability and high-speed data transmission,such as control systems for gas turbines,steam turbines,compressors and other equipment.

Technical specifications(partial)

Brand:MTL(or GE,may vary depending on sales channels or manufacturers)

Series:8502 series

Type:bus interface module/high-speed data transmission module/controller module

Output frequency:450Hz(may vary depending on the model)

Working voltage:usually 220V or 24V DC(depending on application requirements)

Power supply current:depends on the specific model and application requirements

Working temperature range:-20°C to+70°C(may vary depending on the model)

Storage temperature range:-40°C to+85°C

Dimensions and weight:The specific dimensions and weight may vary depending on the product version and manufacturer
