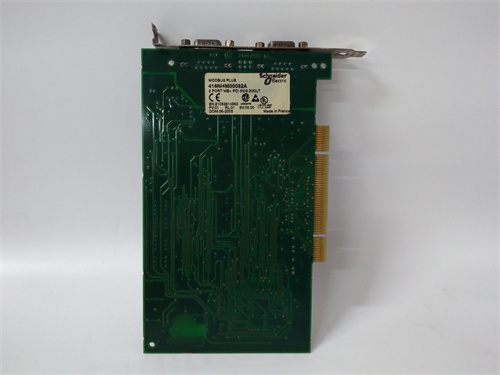

SCHNEIDER 416NHM30030A Product Introduction

416NHM30030A is a PCI communication adapter launched by Schneider Electric.It belongs to the core component of the MODICON COMMUNICATION series.It is mainly used for efficient data transmission and control of computers and Modbus Plus networks,Interbus buses or other devices in industrial automation systems.Its core advantages include multi-protocol compatibility,flexible voltage support and industrial-grade reliability,which are suitable for distributed control requirements in complex industrial scenarios.

Core functions and characteristics

Hardware design and compatibility

PCI bus support:compatible with 3.3V and 5V PCI buses(compared model 416NHM30030 only supports 5V),adapted to different computer platforms.

Interface configuration:Equipped with 2 D-sub(DE-09)connectors,supporting Interbus bus connection,suitable for ring topology networks.

Communication protocol

Support Modbus Plus network,providing high-speed peer-to-peer communication and easy installation features.

Compatible with Interbus bus,supports twisted pair transmission,and the data rate is up to 500kbps.

Performance and scalability

Data transmission:Access data through continuous shift registers or master/slave mode to support efficient data exchange.

Modular design:Compatible with Schneider Momentum and Quantum automation platforms,it can be flexibly combined with other I/O modules to build a distributed control system.

Plug and play:Type III PnP PCMCIA card design simplifies the installation and configuration process.

Industrial-grade certification and protection

Protection level:IP20 level,suitable for standard industrial environment.

Certification standards:CE,FM Class 1 Division 2,CSA and UL certifications to ensure safety compliance.

Fields of Application

Industrial automation

It is used for factory automation control,robot control and device-level communication(such as data interaction between sensors and PLC).

Energy and infrastructure

Power system monitoring and energy distribution network management.

Material handling and machine control

Simple machine control,production line coordination and material transportation system.

Technical parameters

Parameter Category Detailed Specifications

Model 416NHM30030A

Series MODICON COMMUNICATION/Quantum series

Communication protocols Modbus Plus,Interbus

Bus type PCI(supports 3.3V/5V)

Interface 2 DE-09 D-sub connectors

Data rate Interbus up to 500kbps

Protection level IP20

Certification CE,FM Class 1 Division 2,CSA,UL

Weight 0.07 kg(adapter body)
